Weichai America Corp.
11
3. Remove the front oil seal (key point 2).
2.3.3 Gear Housing Assembly Procedure
Reverse the Disassembly Procedure to assemble the Gear Housing.
2.3.4 Gear Housing Inspection and Maintenance
Key Point 1:
Inspection:
Check the gear housing to ensure that it is clean and without any damage or burrs on the fitting
surface. Check the O-Rings to ensure that they are in good condition. Replace the O-Rings if
necessary.
Assembling:
(1) Knock the locating pins into place, as shown in the figure below;

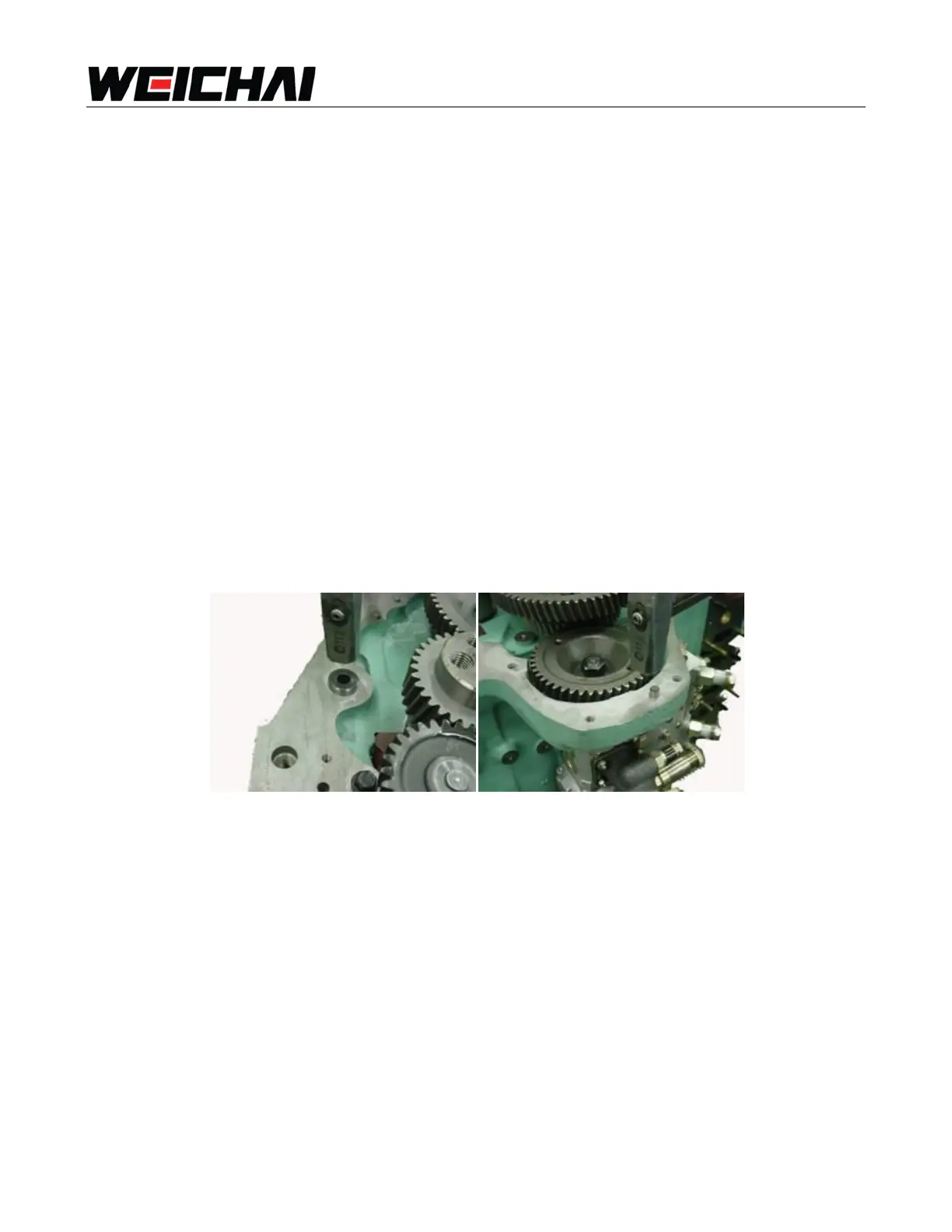

Fig. 2-5 Locating pin installation for Gear Housing
(2) Apply sealant on the sealing surface of the Gear Housing. Ensure that the sealant is evenly
distributed and continuous.
