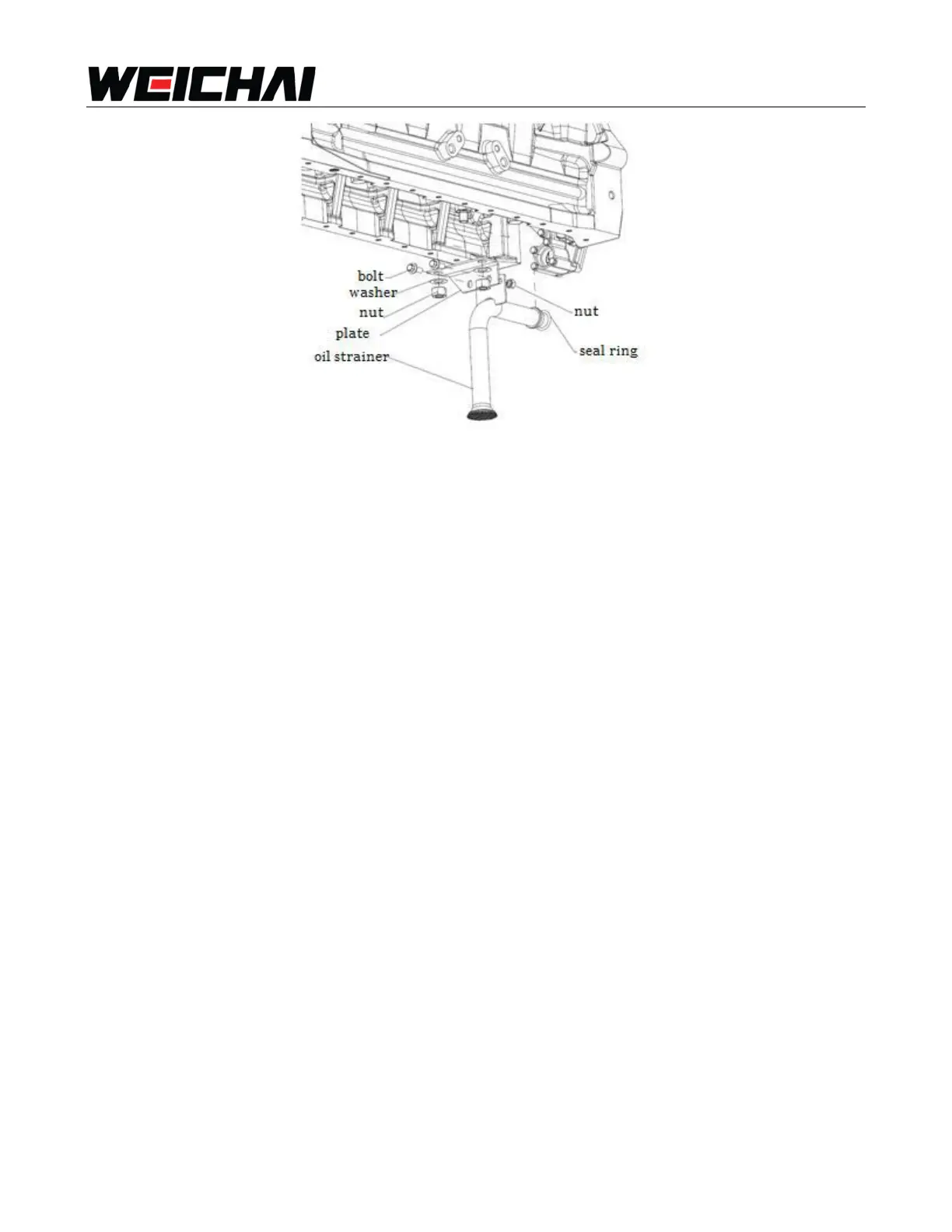

Fig. 9-7 Exploded view of engine oil strainer
9.7.2 Steps to Disassemble Engine Oil Strainer
Screw off two hexagon flange bolts and the 2-type hexagon nuts on the bended plate, take down
the oil strainer, as shown in Fig.
9.7.3 Steps to Assemble Engine Oil Strainer
1. Check the strainer before assembling, make sure there is no manufacturing defect and
damage. Replace new O-ring at the same time.
2. Clean up the oil supply hole of oil pump and the strainer inner cavity.
3. Install the strainer.
4. Assemble and tighten the two hexagon flange bolts and the 2-type hexagon nuts.
9.7.4 Inspection and Maintenance of Engine Oil Strainer
Check the strainer for crack damage, replace it if necessary.
10 Starting System
10.1 Starting System Assembly and Disassembly
10.1.1 Starting System Exploded View
The starter is the core component of the starting system. The starter converts battery power to
electromagnetic torque. The ring gear mechanism drives the starting engine rotation. The starter
