WEICHAI WP6GTA - Water Pump Assembly and Disassembly

Weichai America Corp.
71
5. Remove the thermostat.
6. Remove the water pump.
7. Remove the middle cushion block of water pump.
8.1.3 Cooling System Assembly Procedure
Reverse the Disassembly Procedure to assemble the Cooling System.
8.2 Water Pump Assembly and Disassembly
8.2.1 Water Pump Exploded View

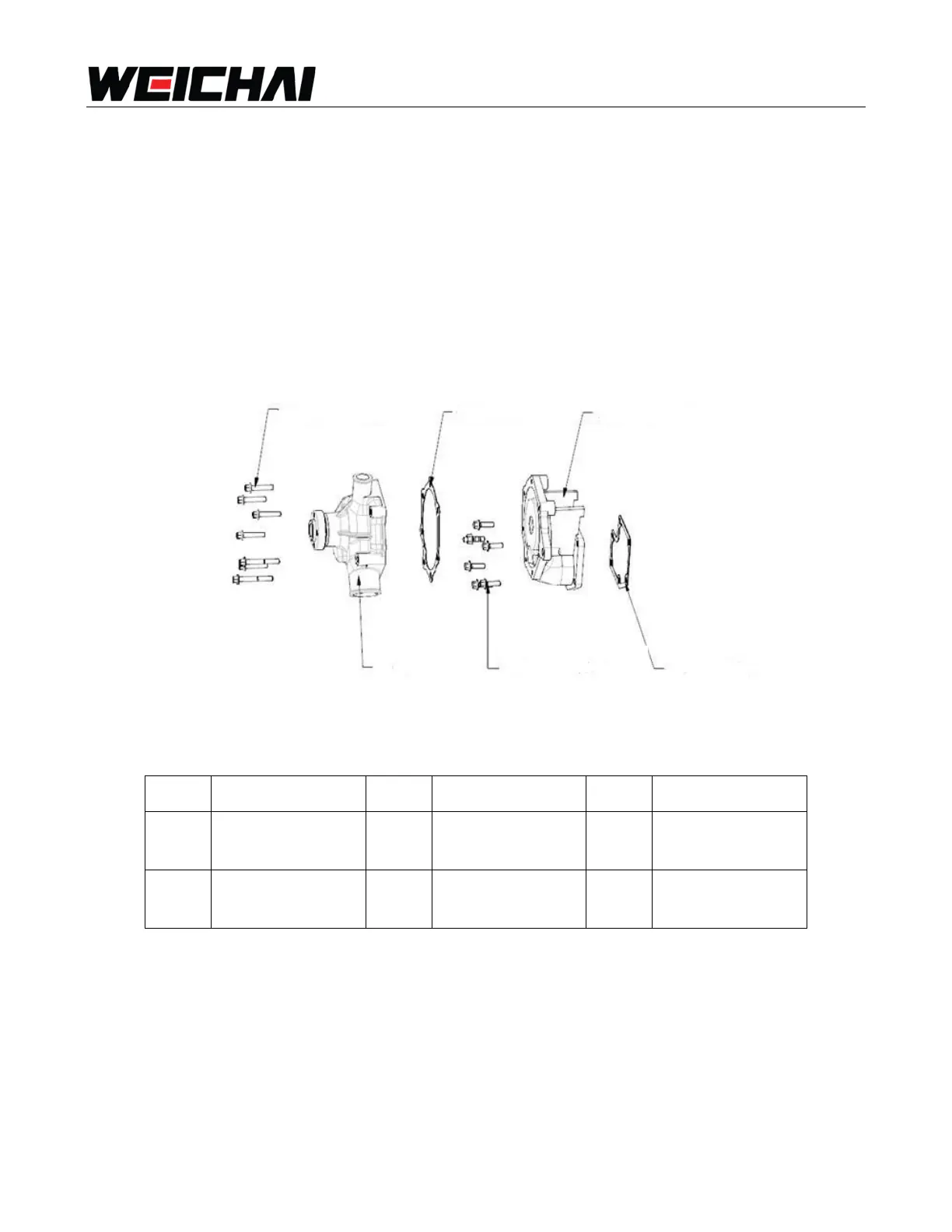

Fig. 8-2 Exploded view of water pump
No.
name
No.
name
No.
name
1
Hexagon bolt
3
Water pump
washer
5
Intermediate plate
2
Water pump
4
Hexagon bolt
6
Water pump
washer
8.2.2 Water Pump Disassembly Procedure
1. Remove the water pump pulley.
2. Remove thermostat connecting hose and clamps.
3. Remove the hexagon bolts on the pump.
4. Remove water pump, gasket and middle cushion block.
1
3
5
2
4
6
