Key point 2
Installation: Install the thrust bearing cap on the rear end of cylinder block, and install non-thrust
bearing caps to other positions. Pay attention to distinguishing two ends of the bearing cap for a
proper positioning, and if the bearing cap is reversed, the main bearing bolt cannot be mounted.
2.3 Gear Housing Assembly and Disassembly

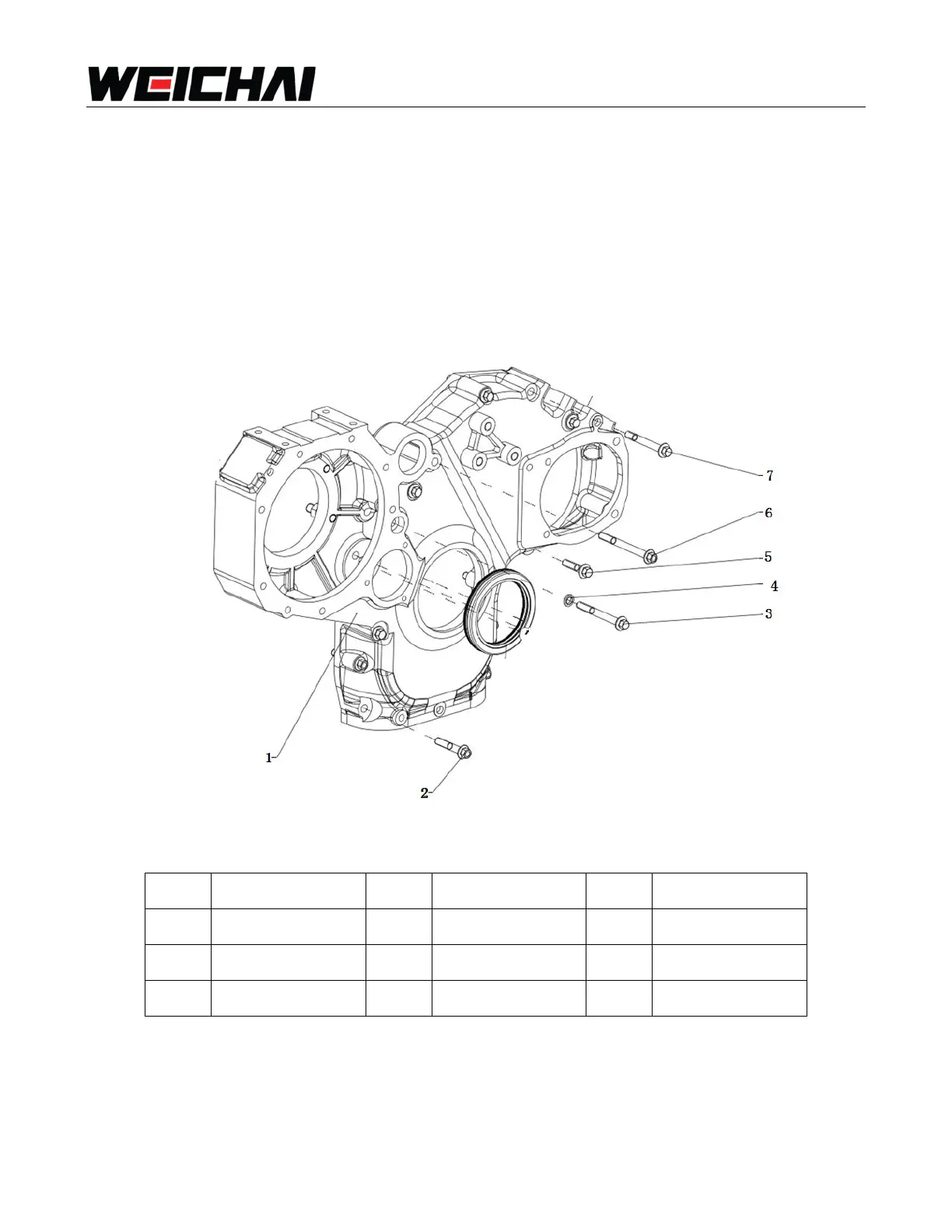

2.3.1 Gear Housing Exploded View
Fig. 2-4 Exploded view of Gear Housing
No.
name
No.
name
No.
name
1
Front end cover
4
washer
7
bolt
2
bolt
5
bolt
3
bolt
6
bolt
2.3.2 Gear Housing Disassembly Procedure
1. Remove the intermediate gear.
2. Remove the front cover plate (key point 1).
