WEICHAI WP6GTA - 2 Engine Block Assembly; Disassembly and Assembly of Engine Block Assembly

Weichai America Corp.
6
2 Engine block assembly
2.1 Disassembly and assembly of engine block assembly
2.1.1 Exploded view of engine block assembly

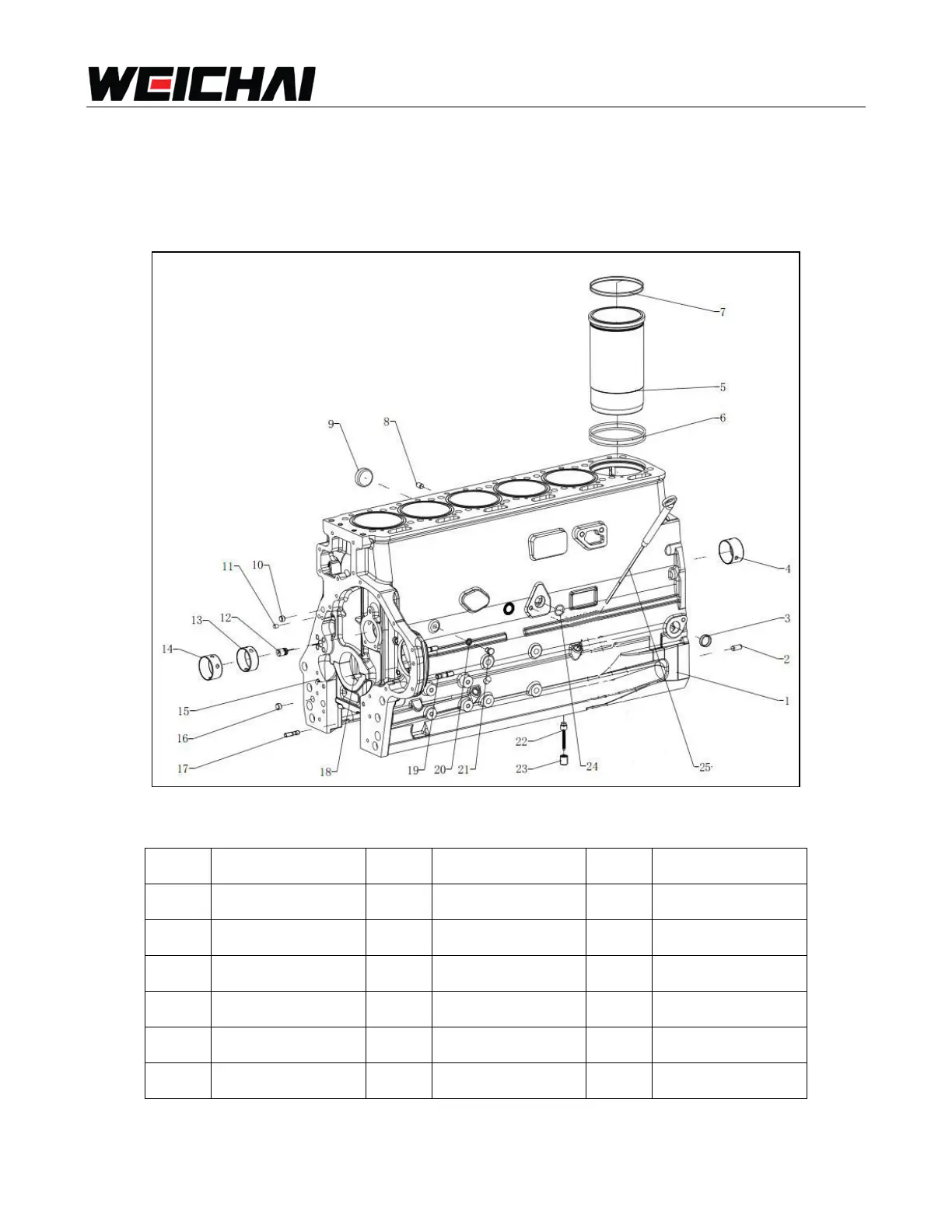

Fig. 2- 1 Exploded view of engine block assembly
No.
name
No.
name
No.
name
1
Engine block
11
Rivet
21
Plug
2
Pin
12
shaft
22
Rivet
3
Cup plug
13
Camshaft bushing
23
Stud
4
Camshaft bushing
14
Camshaft bushing
24
Cup plug
5
Cylinder liner
15
Pin
25
Dipstick
6
O seal ring
16
Plug
