WEICHAI WP6GTA - Mix Air Intake System Procedures

Weichai America Corp.
66
2. Remove the nut (13)
3. Remove the bolt (8)
4. Remove the water pipe of the LPG evaporator (20).
5. Remove the LPG evaporator and the bracket.
6. Change the spare parts which need be changed.
7. Remove the bolt (1)
8. Remove the gas pipe (3).
7.1.4 LPG Intake System Assembly Procedure
Reverse the disassembly procedure to assemble the LPG supply system
7.2 Mix air Intake System Assembly and Disassembly

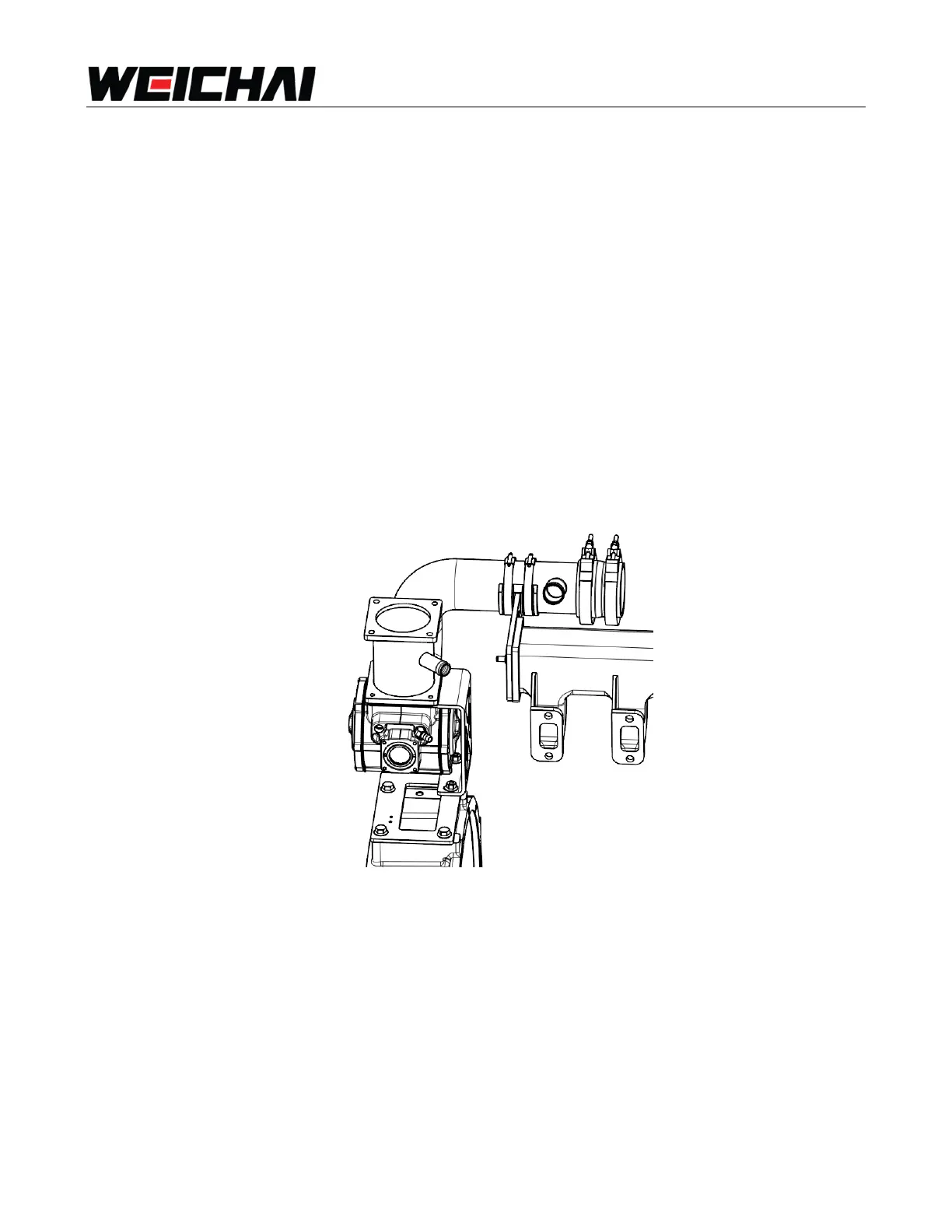

7.2.1 Mix air Intake System Exploded View
