WEICHAI WP6GTA - NG Gas Supply and EPR Valve Procedures

Weichai America Corp.
67

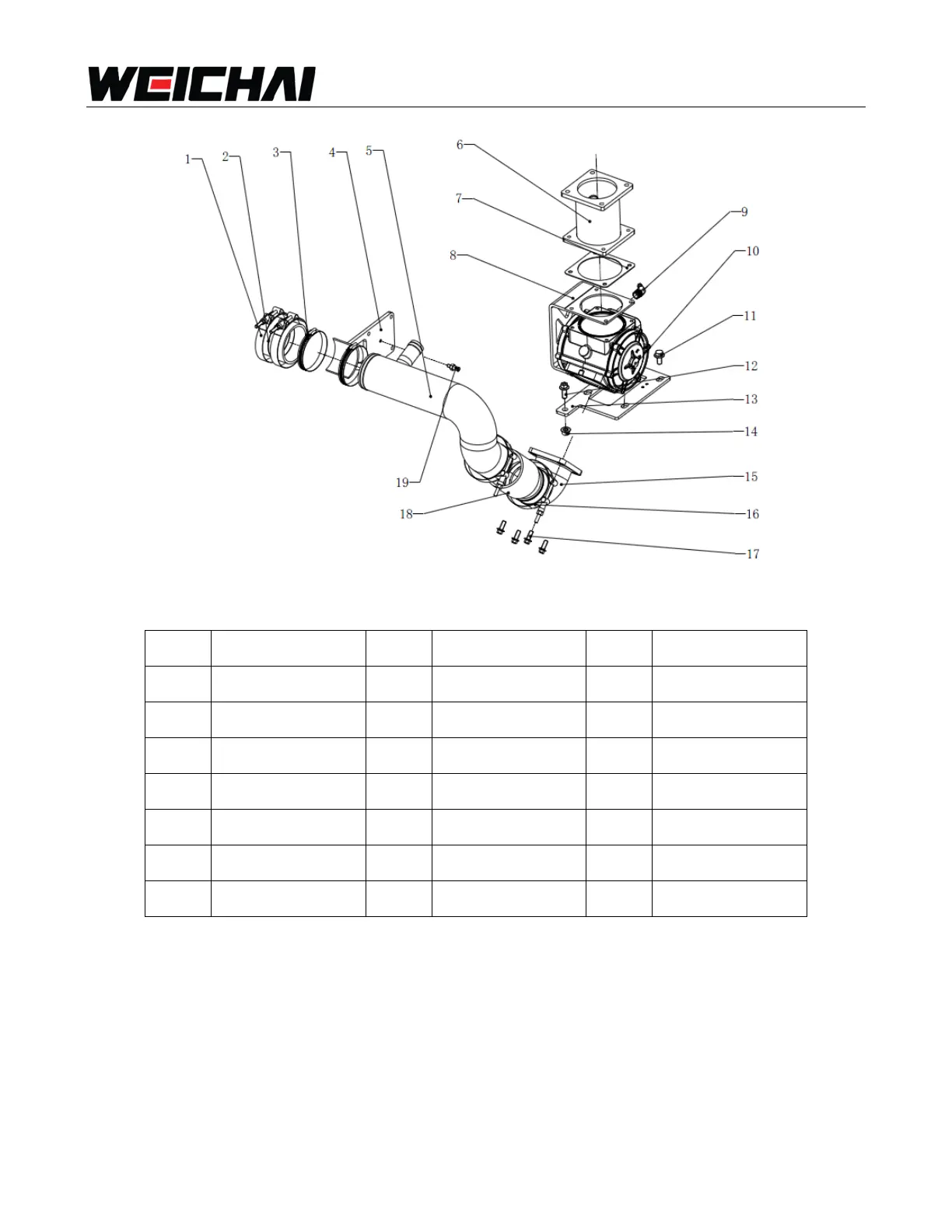

Fig. 7-3 Mix Intake System Exploded View
No.
name
No.
name
No.
name
1
clamp
8
bracket
15
Inlet elbow
2
hose
9
air intake joint
16
clamp
3
clamp
10
mixer
17
bolt
4
bracket
11
bolt
18
hose
5
mix intake pipe
12
bolt
19
joint
6
air intake joint pipe
13
bracket
7
gasket
14
nut
7.2.2 Mix Air Intake System Disassembly Procedure
1. Remove the clamp (1)
2. Remove the clamp (3)
3. Remove the clamp (16)
4. Remove the hose (2)、hose (18)
