6 Ignition System
6.1 Ignition System Assembly and Disassembly
6.1.1 Ignition System Exploded View

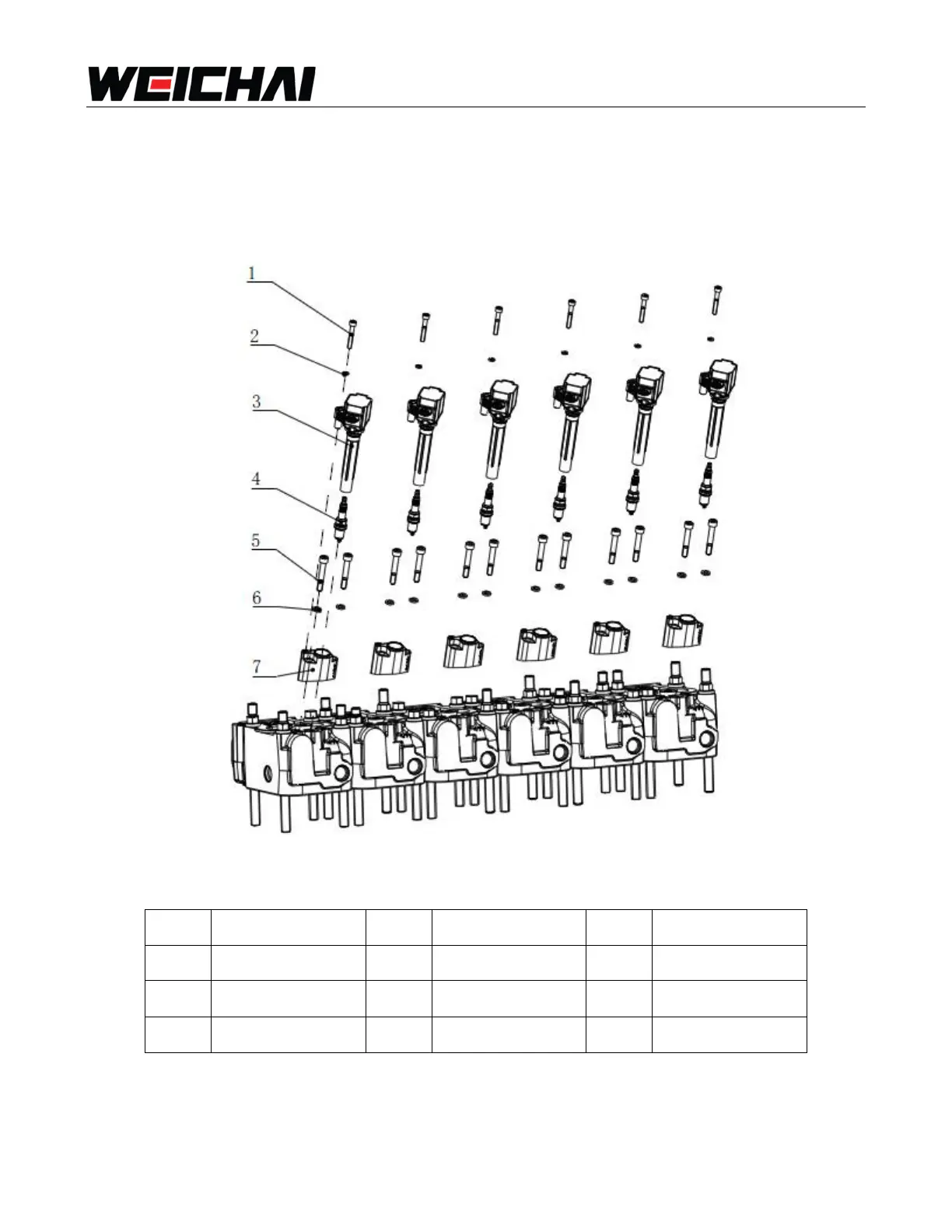

Fig. 6-1 Exploded view of ignition system
No.
name
No.
name
No.
name
1
bolt
4
sparking plug
7
ignition coil seat
2
washer
5
bolt
3
ignition coil
6
washer
6.1.2 Ignition System Disassembly Steps
1. Remove the install bolt of the ignition coil.
