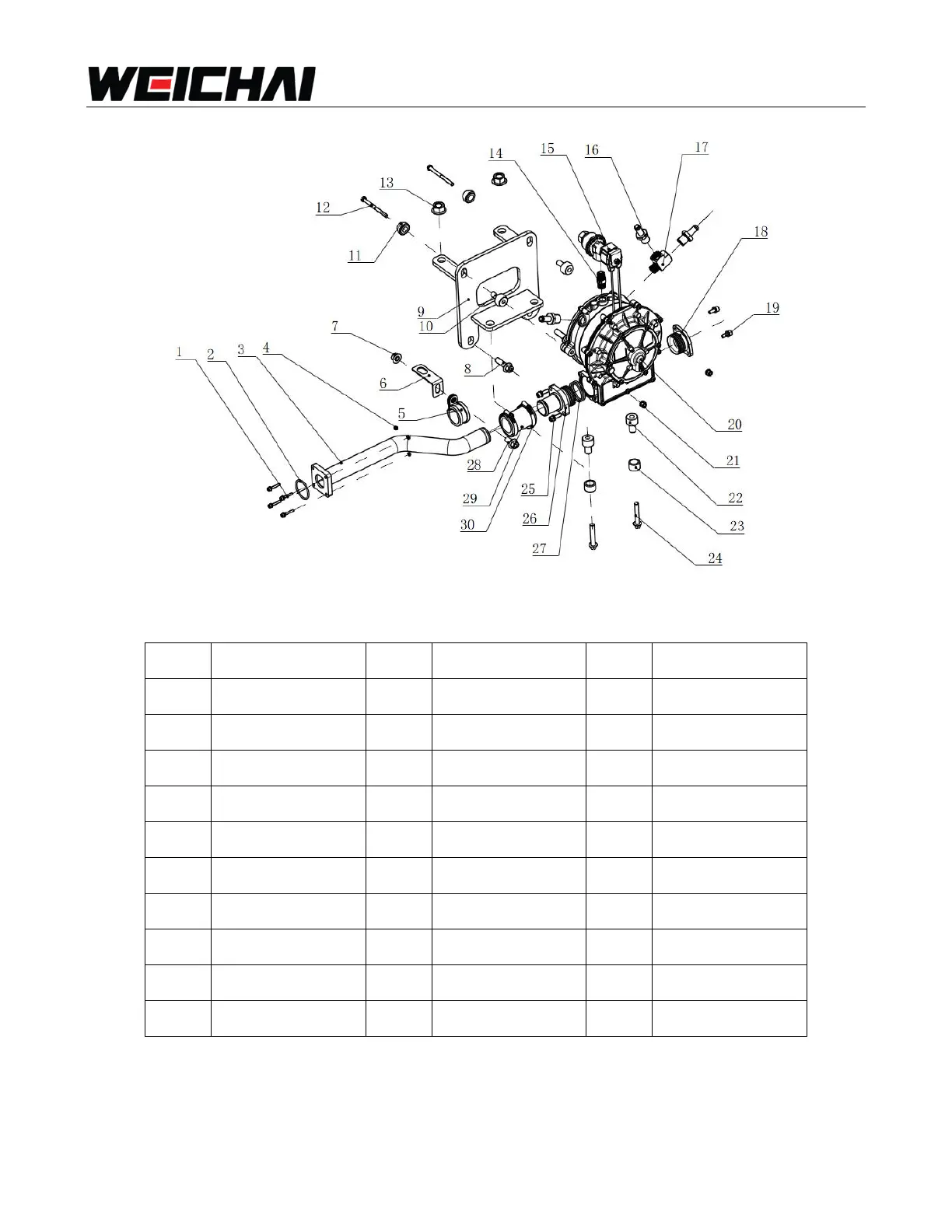

Fig. 7-2 Exploded view of LPG supply system
No.
name
No.
name
No.
name
1
bolt
11
cushion
21
nut
2
O-ring
12
bolt
22
cushion
3
gas tube
13
nut
23
cushion
4
nut
14
joint
24
bolt
5
pipe clamp
15
solenoid valve
25
bolt
6
pipe clamp bracket
16
water joint
26
gas joint
7
nut
17
joint
27
O-ring
8
bolt
18
plug
28
bolt
9
holder
19
bolt
29
hose
10
cushion
20
LPG EPR
30
clamp
7.1.3 LPG Intake System Disassembly Procedure
1. Remove the clamp (30)
