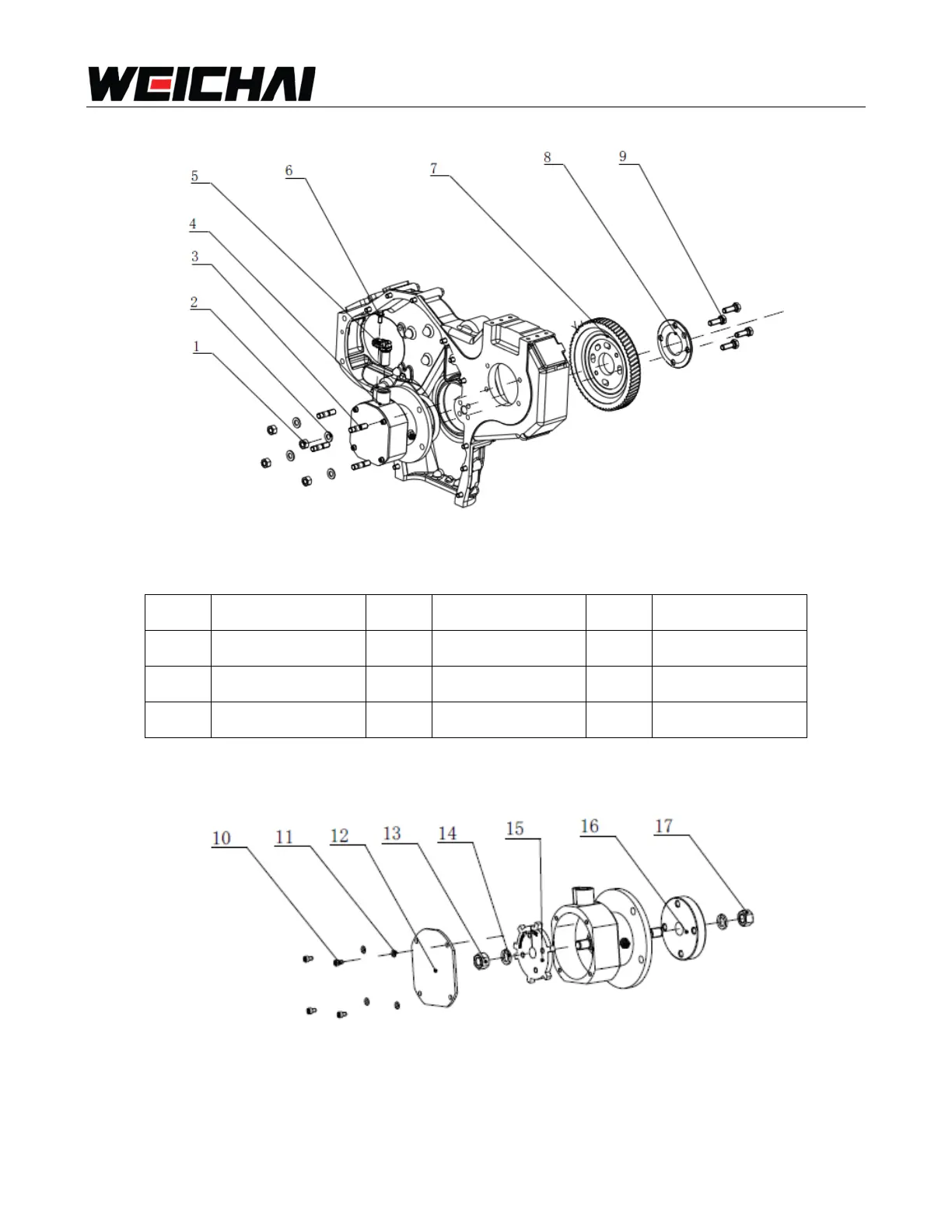

Fig. 6-2 Exploded view of signal generator
No.
name
No.
name
No.
name
1
nut
4
Signal generator
7
timing gear
2
washer
5
speed sensor
8
clamp plate
3
stud
6
Hexagon bolt
9
hexagon bolt
