7

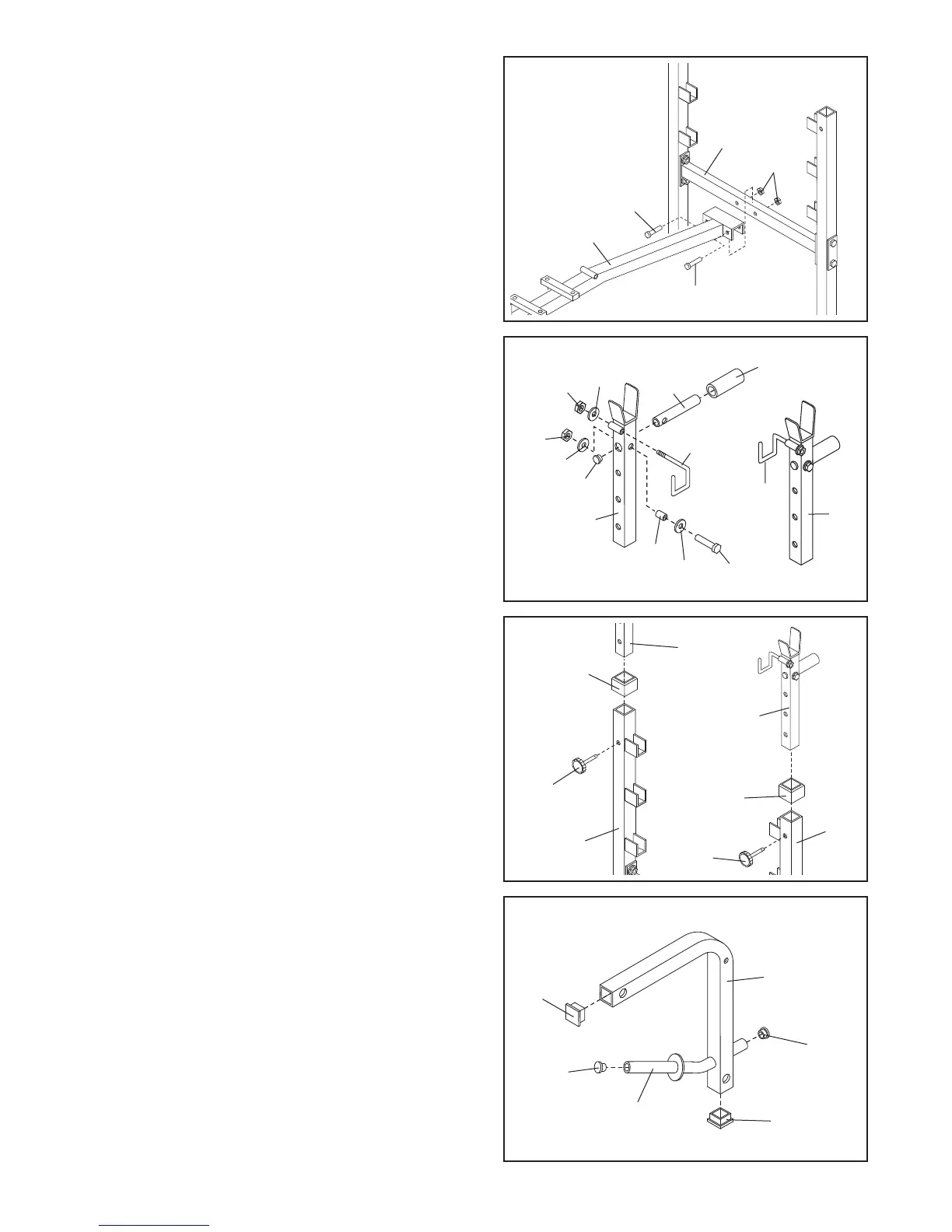

3. Attach the Frame (2) to the Crossbar (3) with two M8
x 55mm Bolts (27) and two M8 Nylon Locknuts (33).
4. Attach a Dip Handle (24) to one of the Weight Rests
(19) with an M8 x 60mm Bolt (37), an 11mm x
10.5mm Spacer (38), two M8 Washers (20), and an
M8 Nylon Locknut (33). Slide a Handgrip (12) onto
the Dip Handle. Press a 25.4mm Round Inner Cap
(17) into the end of the Dip Handle.
Attach the other Dip Handle (24) to the other Weight
Rest (19) in the same manner.
Attach the Right Barbell Hook (28) to one of the
Weight Rests (19) with an M8 Washer (20) and an
M8 Nylon Locknut (33).
The Barbell Hook must be
oriented as shown.
Attach the Left Barbell Hook (30)
to the other Weight Rest (19) in the same manner. Do
not tighten the Nylon Locknuts; the Barbell Hooks
must be easy to turn.
6. Tap a 38mm Square Inner Cap (15) into each end of
the Leg Lever (4).
Tap a 25.4mm Round Inner Cap (17) into each end of
the weight tube (B).
4
5
33
27
2
27
3
5. Press a 50mm Square Bushing (18) onto each
Upright (1, 16) and tap them into place with a rubber
mallet.
Slide a Weight Rest (19) into the Right Upright (1).
Align one of the adjustment holes in the Weight Rest
with the adjustment hole in the Upright. Tighten the
Large Threaded Knob (32) into the adjustment hole in
the Upright.
Attach the other Weight Rest (19) to the Left Upright
(16) in the same manner.
5
18
32
1
19
18
32
16
19
15
15
17
B
17
4
3
19
30
28
38
24
20
33
37
20
17
19
12
33
20
