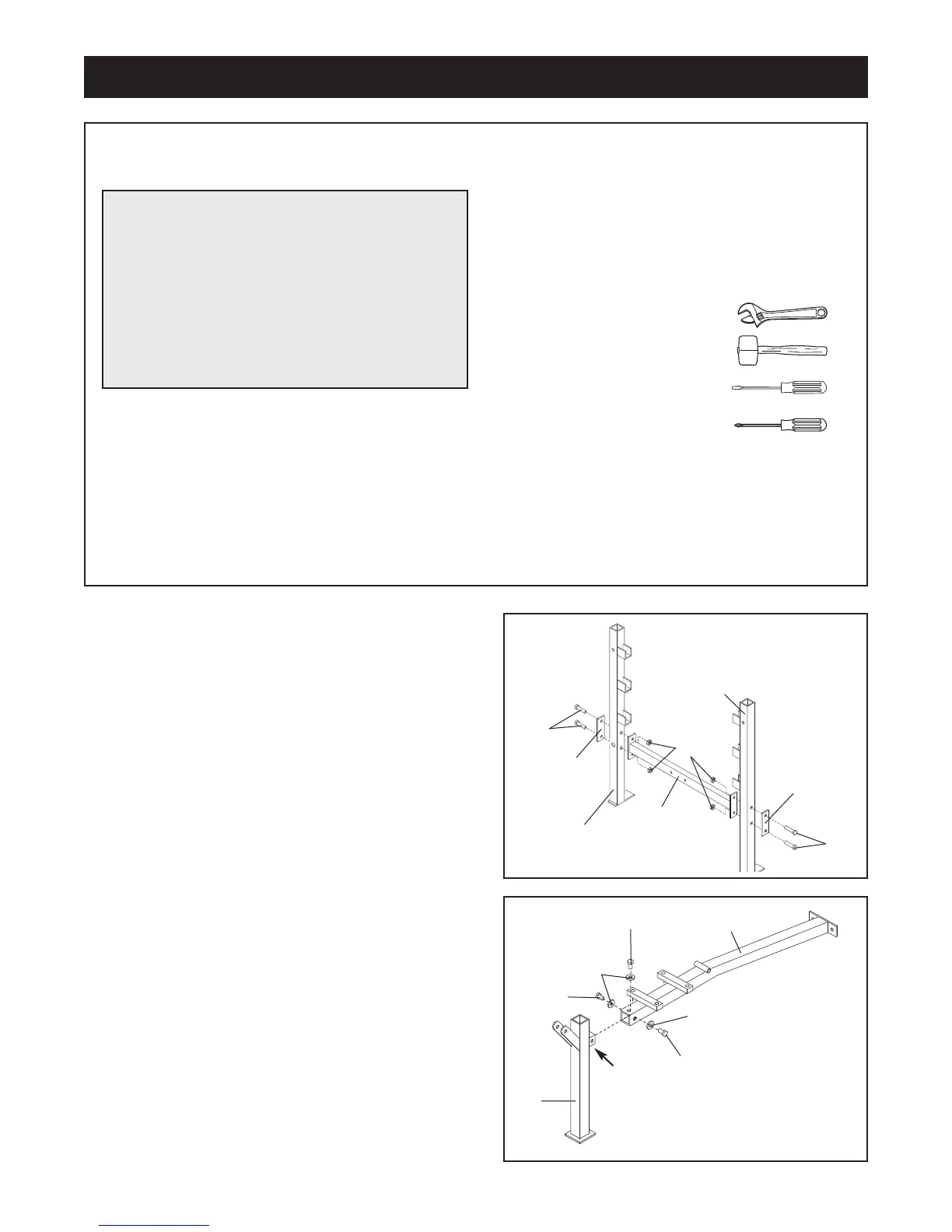

1. Before assembling this product, make sure you
have read and understand the information in the
box above.
Attach the Crossbar (3) to the Right Upright (1) with
two M10 x 70mm Bolts (26), a Support Plate (40),
and two M10 Nylon Locknuts (21).
Make sure that
the Left Upright is turned as shown. Do not tighten
the Nylon Locknuts yet.
Attach the Crossbar (3) to the Left Upright (16) in the
same manner.
2. Attach the Front Leg (8) to the Frame (2) with three
M8 x 16mm Screws (23) and three M8 Washers (20).
Do not tighten the Screws yet.
1
2
Before beginning assembly, carefully read the
following information and instructions:
•
Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• For help identifying the small parts, use the PART
IDENTIFICATION CHART on page 5.
• As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• One (1) phillips screwdriver
• Lubricant, such as grease or petroleum jelly
plus soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by anyone. However, it is important to
recognize that the weight bench has many
small parts and that the assembly process will
take time. Most people find that by setting
aside plenty of time, and by deciding to make
the task enjoyable, assembly will go smoothly.
16
26
21
1
3
26
40
40
23
20
2
A
8
23
23
20
