Weider 2980 X - Cable Routing Diagram

21

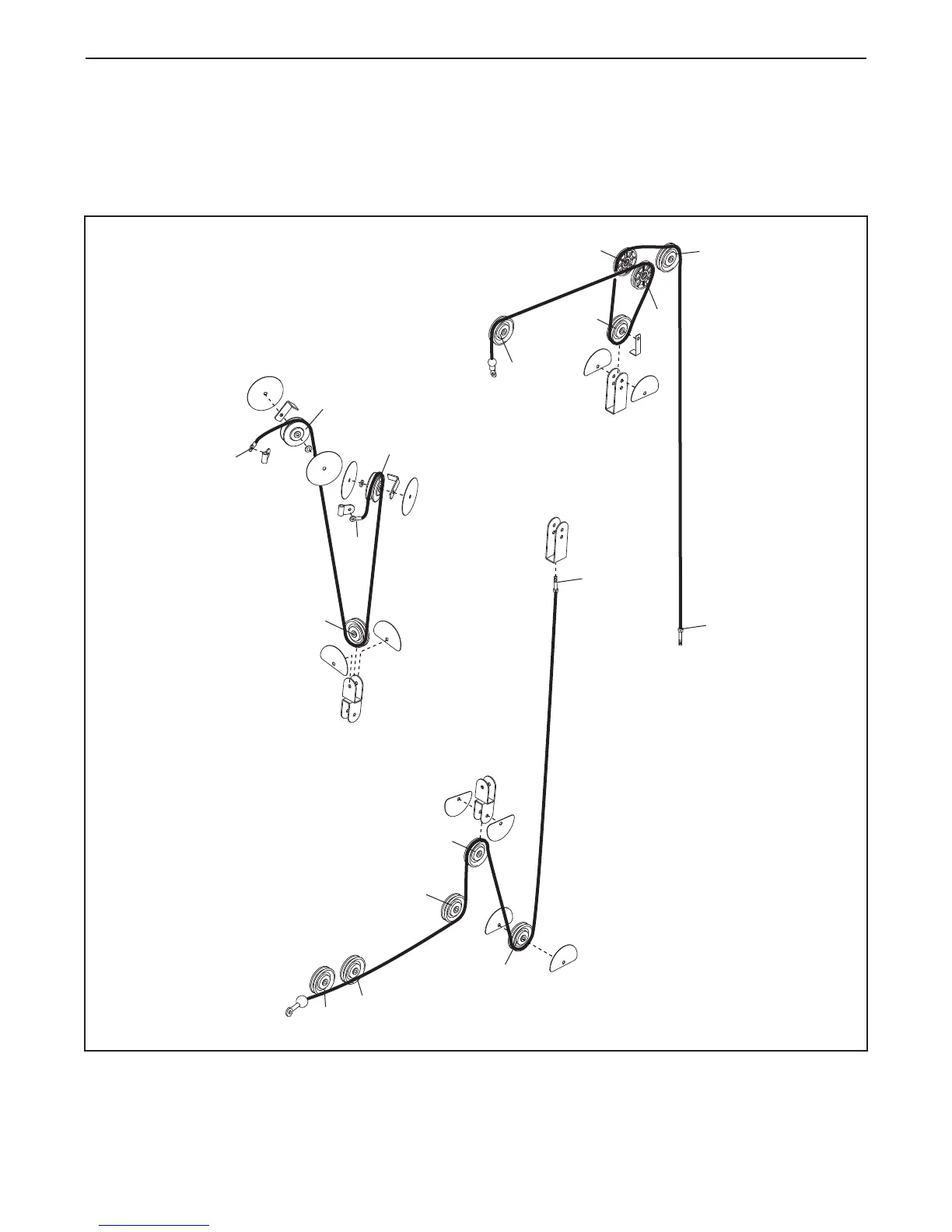

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
of that cable. Use the diagram to make sure that the cables, cable traps, pulleys, and guards are assembled
correctly. If the cables are not assembled correctly, the weight system will not function properly and damage may
o
ccur. Make sure that the cable traps do not touch or bind the cables.
1
2
4
2
3
4
5
5
Arm Cable (54)
Length: 7 ft. 5 in. (226 cm)
High Cable (55)
Length: 9 ft. 6 in. (290 cm)
Low Cable (53)
Length: 10 ft. 8 in. (325 cm)
3
1
6
1
2
3
4
5
6
CABLE DIAGRAM
