Weider 2980 X - Seat Assembly Instructions

16

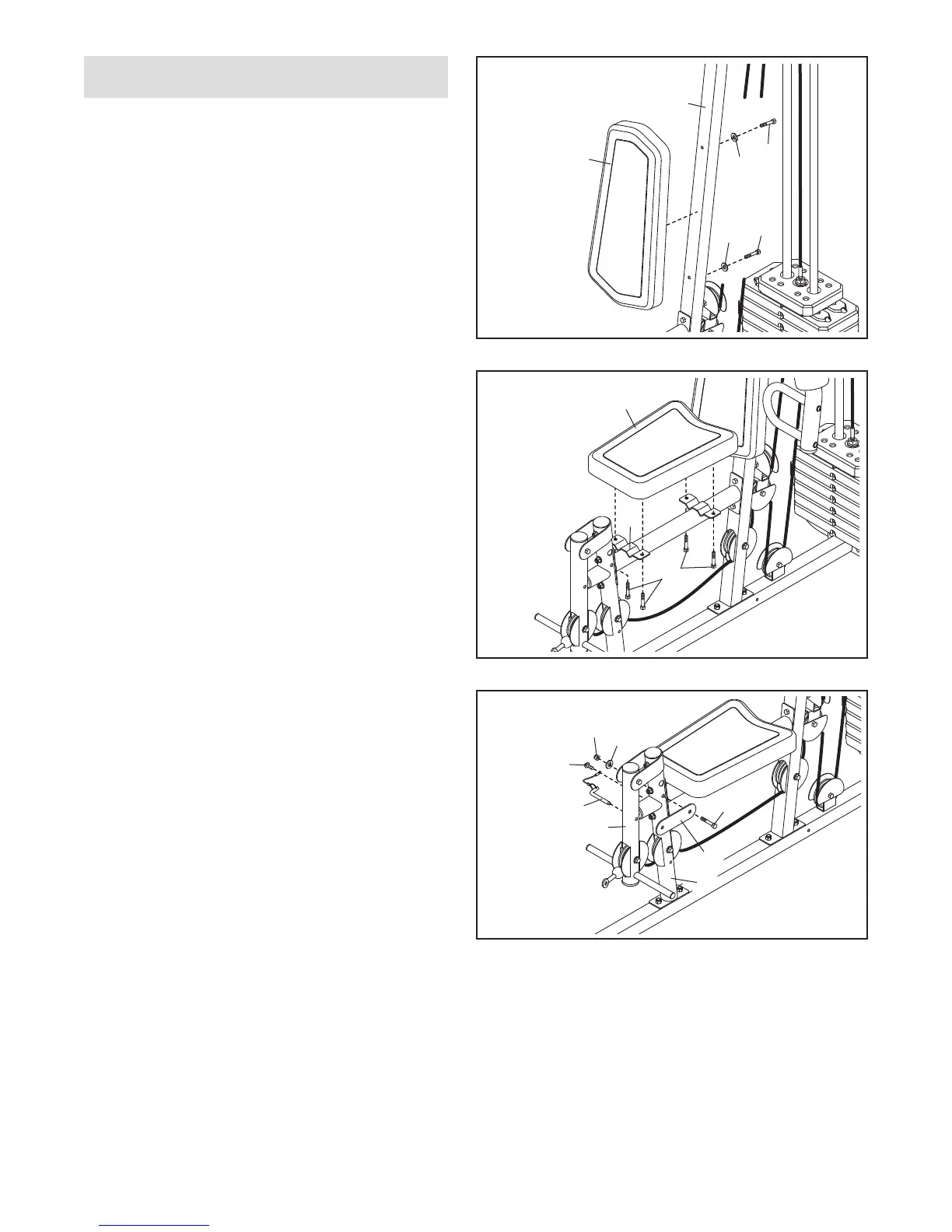

28. Attach the Backrest (16) to the Upright (3) with
two M6 x 63mm Screws (70) and two M6
Washers (80).
29. Attach the Seat (15) to the Seat Frame (6) with
four M6 x 16mm Screws (62) as shown.
Seat Assembly
15
62
6
29
70
7
0
80
80
3
28
30. Attach the Lock Plate (73) to the Front Leg (7)
with an M10 x 70mm Bolt (72), an M10 Washer
(57), and an M10 Nylon Locknut (56). Do not
overtighten the Nylon Locknut; the Lock
Plate must pivot easily.
Attach the Leg Lever Pin (38) to the Front Leg
(7) with an M4 x 20mm Self-tapping Screw (69).
Insert the Leg Lever Pin through the Leg Lever
(8) and the Lock Plate (73).
56
57
69
38
72
8
30
1
6
73
7
