Weider 2980 X - Frame Assembly Guide

7

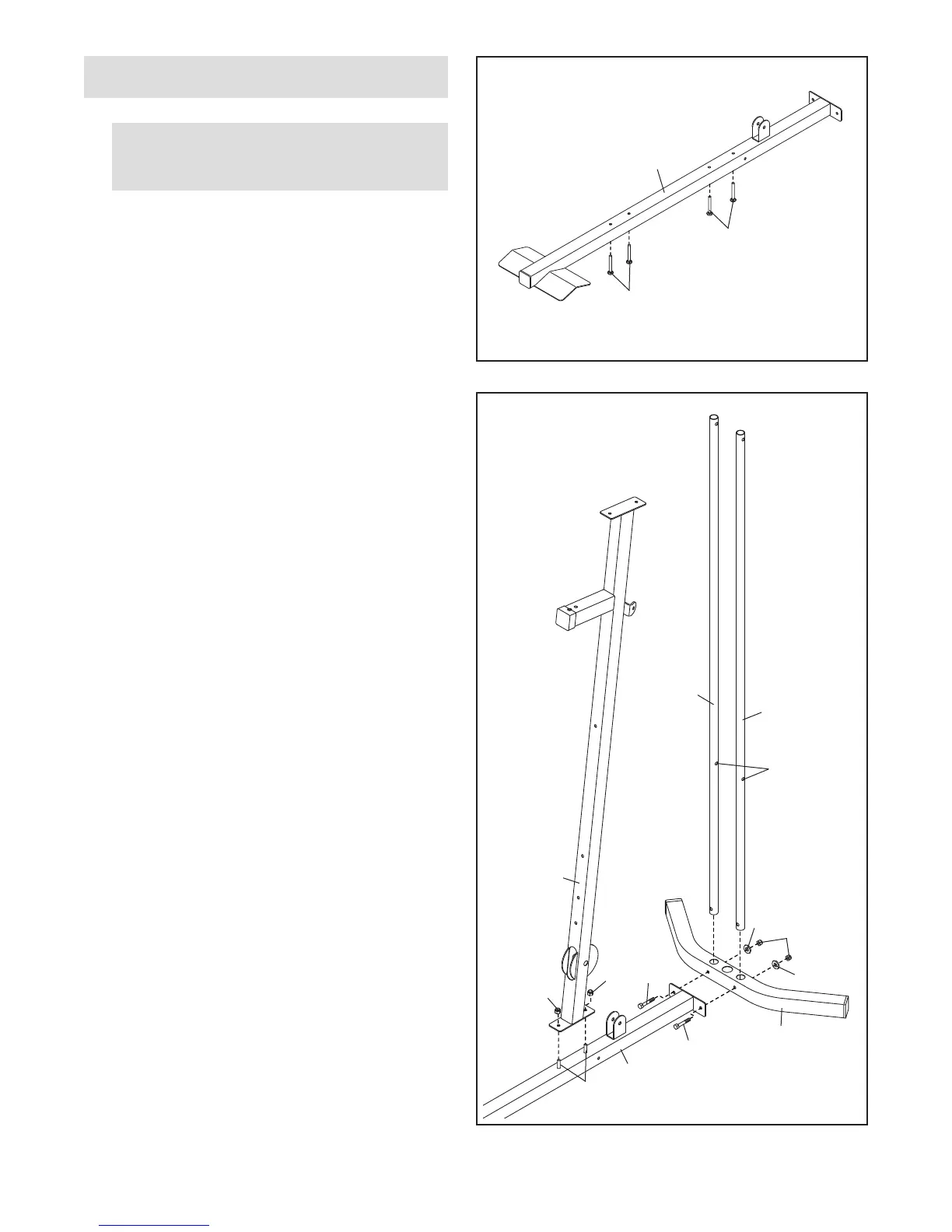

2. Orient the two Weight Guides (21) as shown, so
the indicated holes are closer to the lower ends.
Attach the Weight Guides and the Stabilizer (2)
to the Base (1) with two M10 x 67mm Bolts
(71), two M10 Washers (57), and two M10
Nylon Locknuts (56). Fully tighten the Nylon
Locknuts.
Attach the Upright (3) to the Base (1) with the
two indicated M8 x 63mm Carriage Bolts (64)
and two M8 Nylon Locknuts (58). Do not tight-
en the Nylon Locknuts yet.
1.
Insert four M8 x 63mm Carriage Bolts (64) up
through the Base (1). Note: It may be helpful
to place a piece of tape over the bolt heads
to hold them in place.
Frame Assembly
64
56
58
3
1
58
71
71
2
57
57
21
Holes
21
2
1
64
64
1
To make assembly easier, read the
information on page 6 before you begin.
