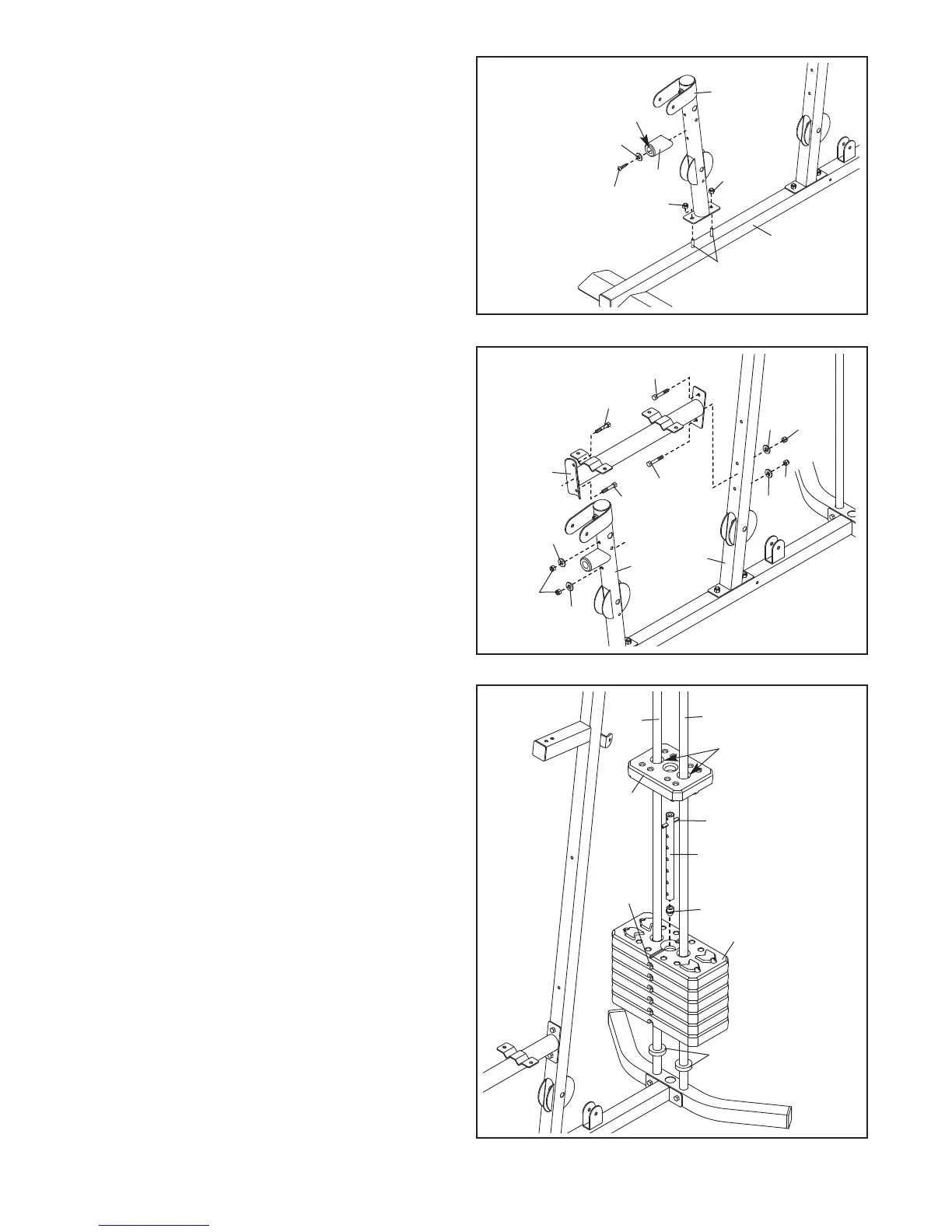

3. Attach the Front Leg (7) to the Base (1) with the
two M8 x 63mm Carriage Bolts (64) and two M8
Nylon Locknuts (58). Do not tighten the Nylon
L
ocknuts yet.
A
ttach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69)
and an M4 Washer (33). Make sure that the
end of the Leg Bumper is pointing upward.
4. Attach the Seat Frame (6) to the Upright (3)
with two M8 x 65mm Bolts (68), two M8
Washers (59), and two M8 Nylon Locknuts (58).
Do not tighten the Nylon Locknuts yet.
Attach the Seat Frame (6) to the Front Leg
(7) in the same way.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient the six Weights (22)
with the pin holes on the bottom as shown.
Slide the Weights onto the Weight Guides.
Insert the Weight Selector Cap (23) into the
Weight Selector (24). Insert the Weight Selector
into the six Weights (22). Make sure that the
pin on the Weight Selector is oriented as
shown.
Apply some of the included grease to the indi-
cated holes in the Top Weight (25). Slide the
Top Weight onto the Weight Guides (21).
