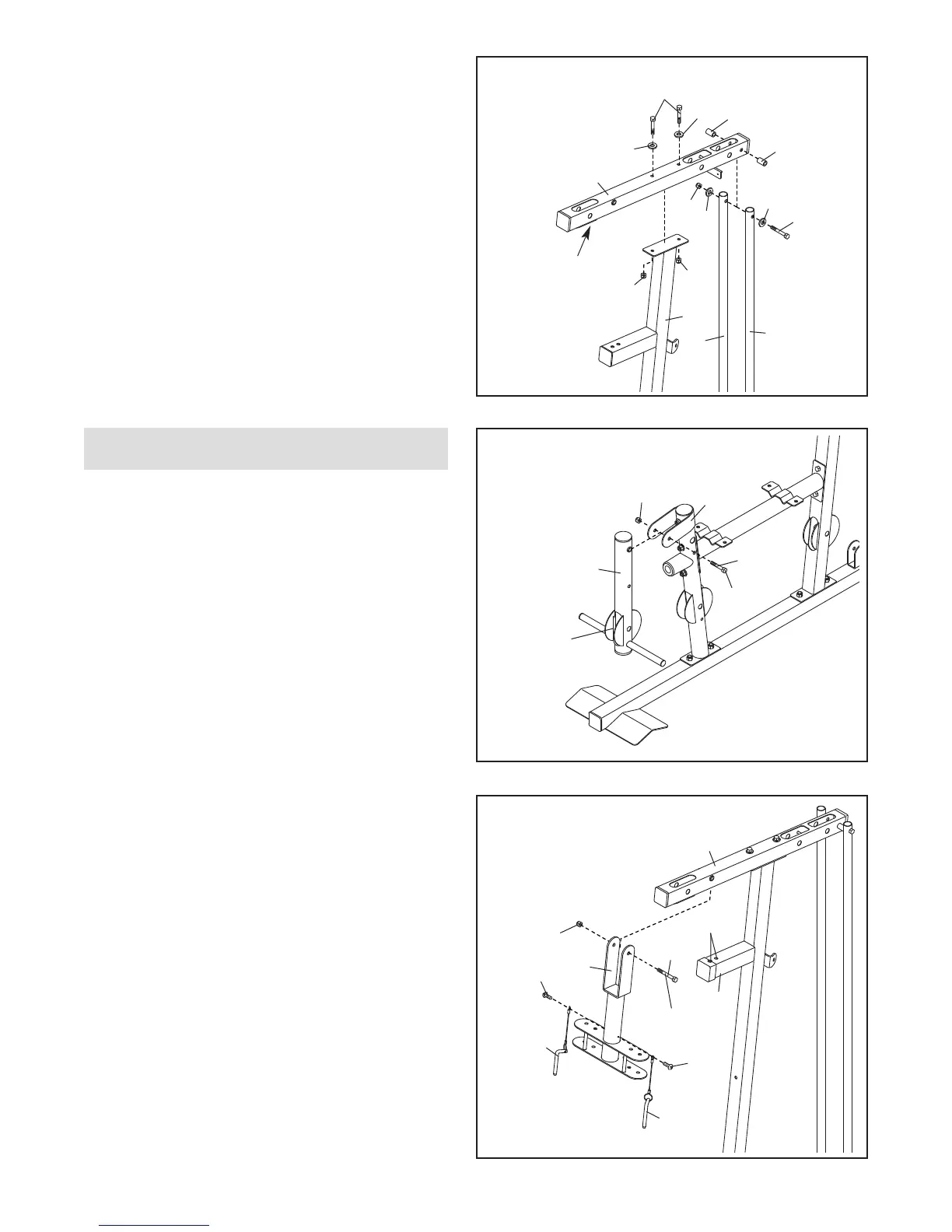

6. Orient the Top Frame (4) with the welded sup-
port on the bottom.
A
ttach the Top Frame (4) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers
(
59), and two M8 Nylon Locknuts (58). Do not
tighten the Nylon Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (21) with an M10 x 155mm Bolt (74),
two M10 Washers (57), two 19mm Spacers
(76), and an M10 Nylon Locknut (56).
See steps 2–4, and 6. Tighten the M8 Nylon
Locknuts (58).
7. Grease an M10 x 77mm Bolt (79). Orient the
Leg Lever (8) with the welded support on the
side shown. Attach the Leg Lever to the Front
Leg (7) with the Bolt and an M10 Nylon Locknut
(56). Do not overtighten the Nylon Locknut;
the Leg Lever must pivot easily.
8. Grease an M10 x 77mm Bolt (79). Attach the
Pivot Frame (5) to the Top Frame (4) with the
Bolt and an M10 Nylon Locknut (56). Do not
overtighten the Nylon Locknut; the Pivot
Frame must pivot easily.
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 20mm Self-tapping Screws
(69). Insert the Arm Pins into the two holes in
the Upright (3).
