Weider 2980 X - Cable Assembly Steps

10

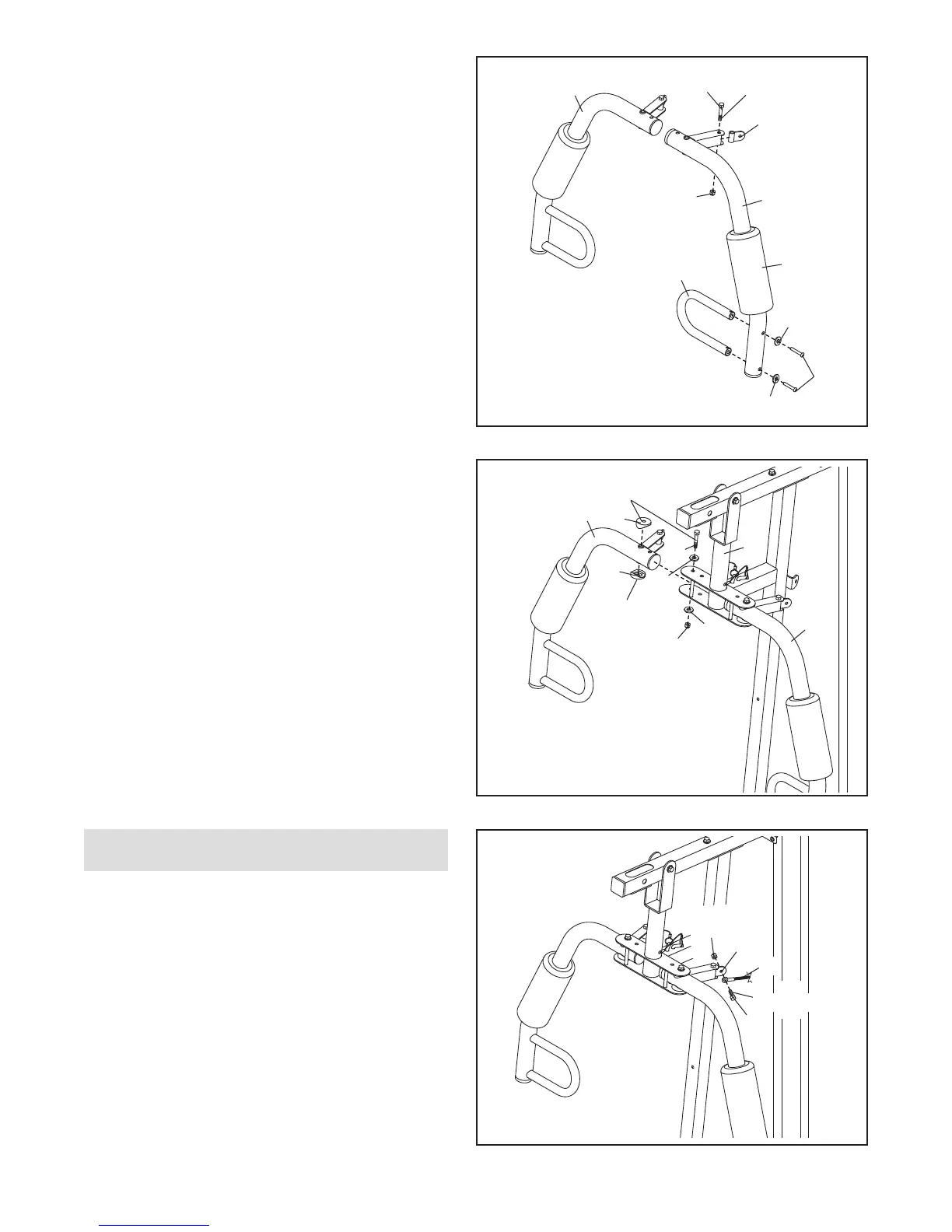

9. Grease an M10 x 51mm Bolt (66). Attach a
Cable Pivot (39) to the Left Arm (10) with the
Bolt and an M10 Nylon Locknut (56). Do not
o
vertighten the Nylon Locknut; the Cable
Pivot must pivot easily.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto
the Left Arm (10).
Attach a Handle (11) to the Left Arm (10) with
two M10 x 25mm Button Screws (77) and two
M10 Washers (57).
Assemble the Right Arm (9) in the same way.
11. See the CABLE DIAGRAM on page 21 to
identify and route the cables.
Identify the Arm Cable (54). Grease an M8 x
22mm Shoulder Bolt (65). Attach the Cable to
the indicated Cable Pivot (39) with the Shoulder
Bolt and an M8 Nylon Locknut (58). Make sure
that the cable end can pivot easily on the
Shoulder Bolt.
10. Grease an M10 x 85mm Bolt (67) and two Arm
Bushings (44). Attach the Right Arm (9) to the
Pivot Frame (5) with the Bolt, two M10 Washers
(57), the two Arm Bushings, and an M10 Nylon
Locknut (56). Do not overtighten the Nylon
Locknut; the Right Arm must pivot easily.
Attach the Left Arm (10) to the Pivot Frame
(5) in the same way.
Cable Assembly
58
65
54
39
Grease
11
10
9
44
56
57
57
5
67
44
Grease
Grease
10
11
10
39
57
77
57
6
6
56
9
42
Grease
9
