Weider 2980 X - Page 11

11

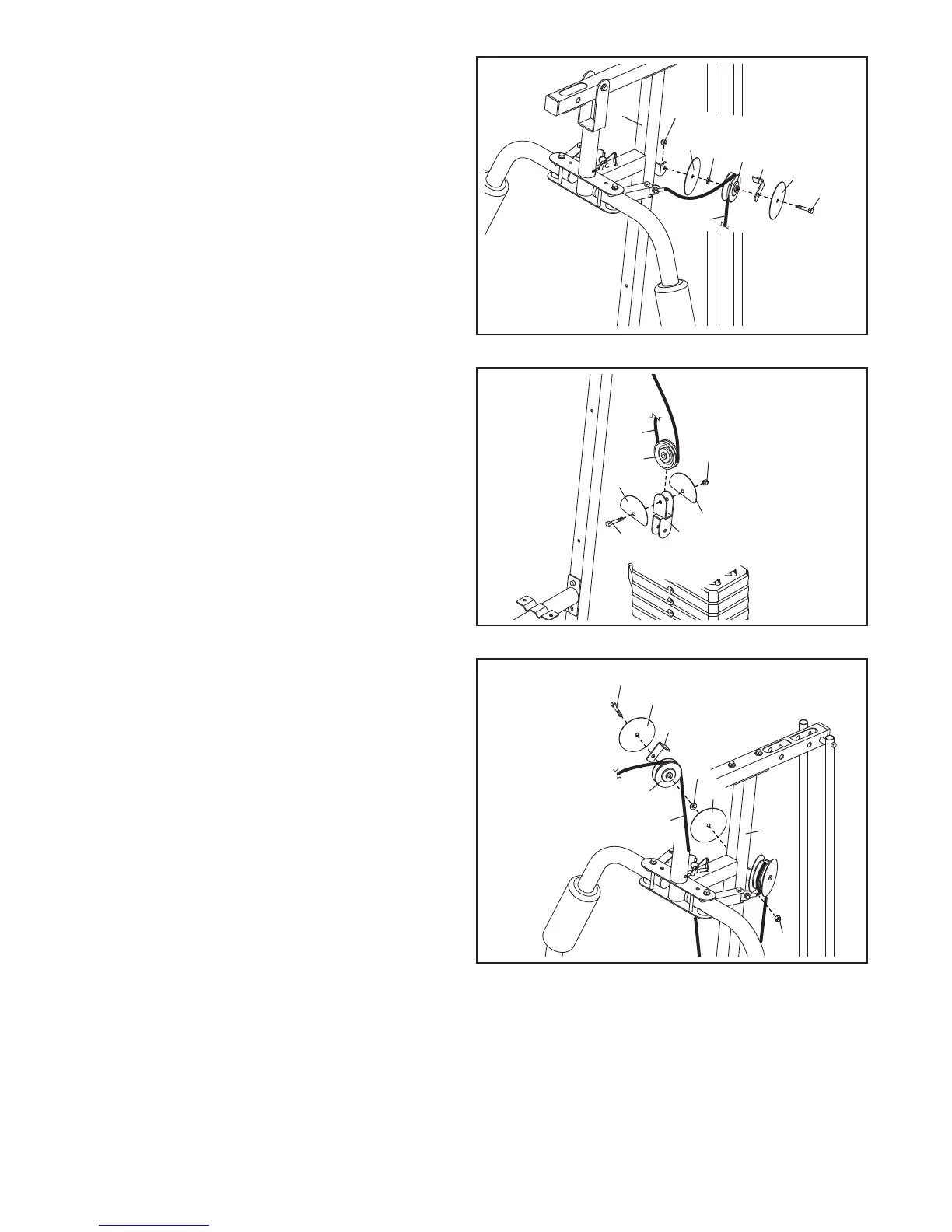

12. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
two Full Guards (41), and an M10 Washer (57)
t
o the Upright (3) with an M10 x 63mm Bolt (75)
and an M10 Nylon Locknut (56). Make sure
t
hat the Cable Trap is oriented to hold the
Cable in the groove of the V-pulley.
14. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
two Full Guards (41), and an M10 Washer (57)
to the Upright (3) with an M10 x 63mm Bolt (75)
and an M10 Nylon Locknut (56). Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the V-pulley.
13. Route the Arm Cable (54) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Nylon Locknut
(56). Make sure that the Half Guards are on
the outside of the U-bracket as shown.
56
3
57
46
50
41
75
54
41
14
48
43
43
63
81
56
54
13
5
6
3
57
46
50
41
75
5
4
41
12
