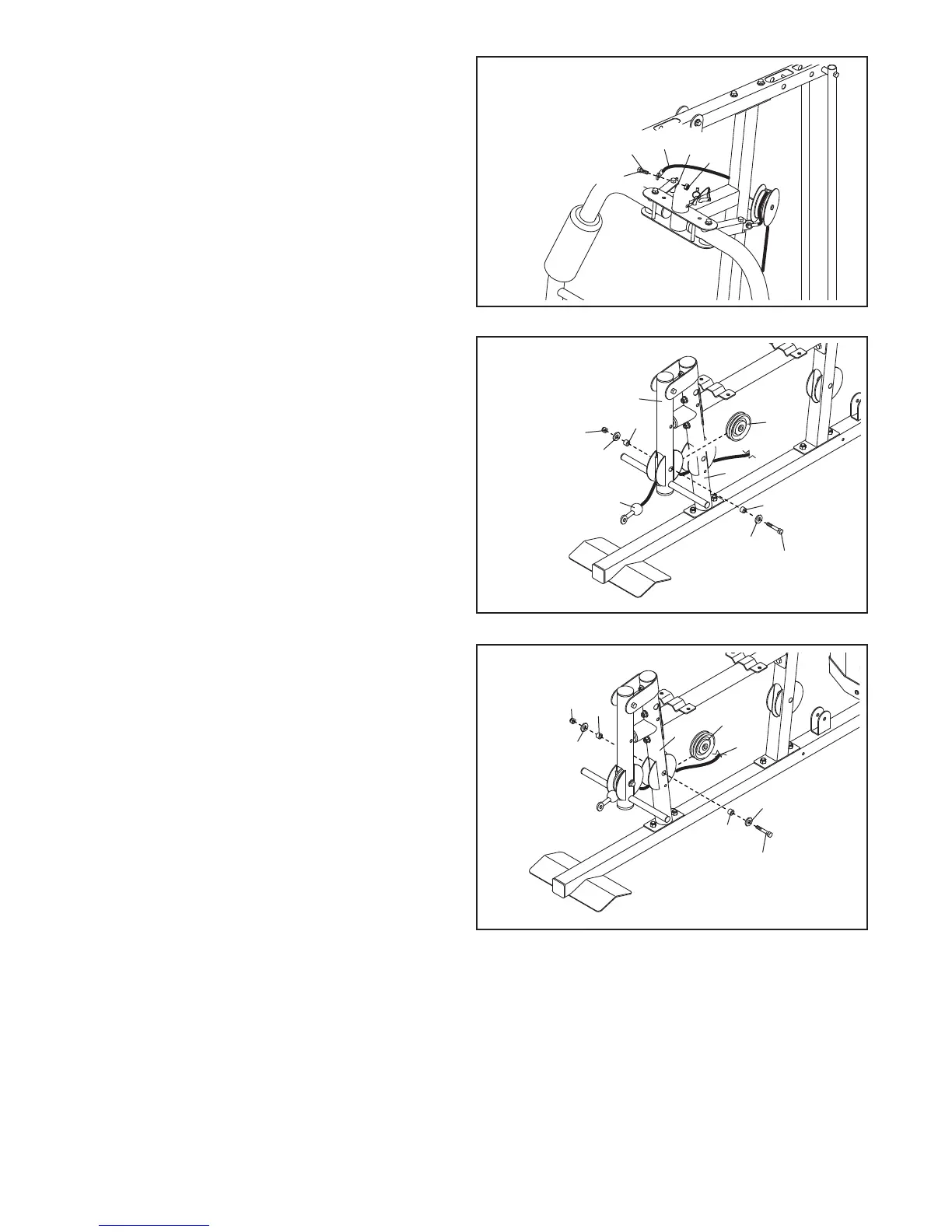

15. Grease an M8 x 22mm Shoulder Bolt (65).
Attach the Arm Cable (54) to the indicated
Cable Pivot (39) with the Shoulder Bolt and an
M
8 Nylon Locknut (58). Make sure that the
cable end can pivot easily on the Shoulder
B
olt.
15
16. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
8
7
53
52
52
57
57
48
71
56
16
17. Attach a 90mm Pulley (48) inside the Front Leg
(7), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
56
7
53
52
52
57
57
48
71
17
65
G
rease
54
39
58
