Weider 2980 X - Page 13

13

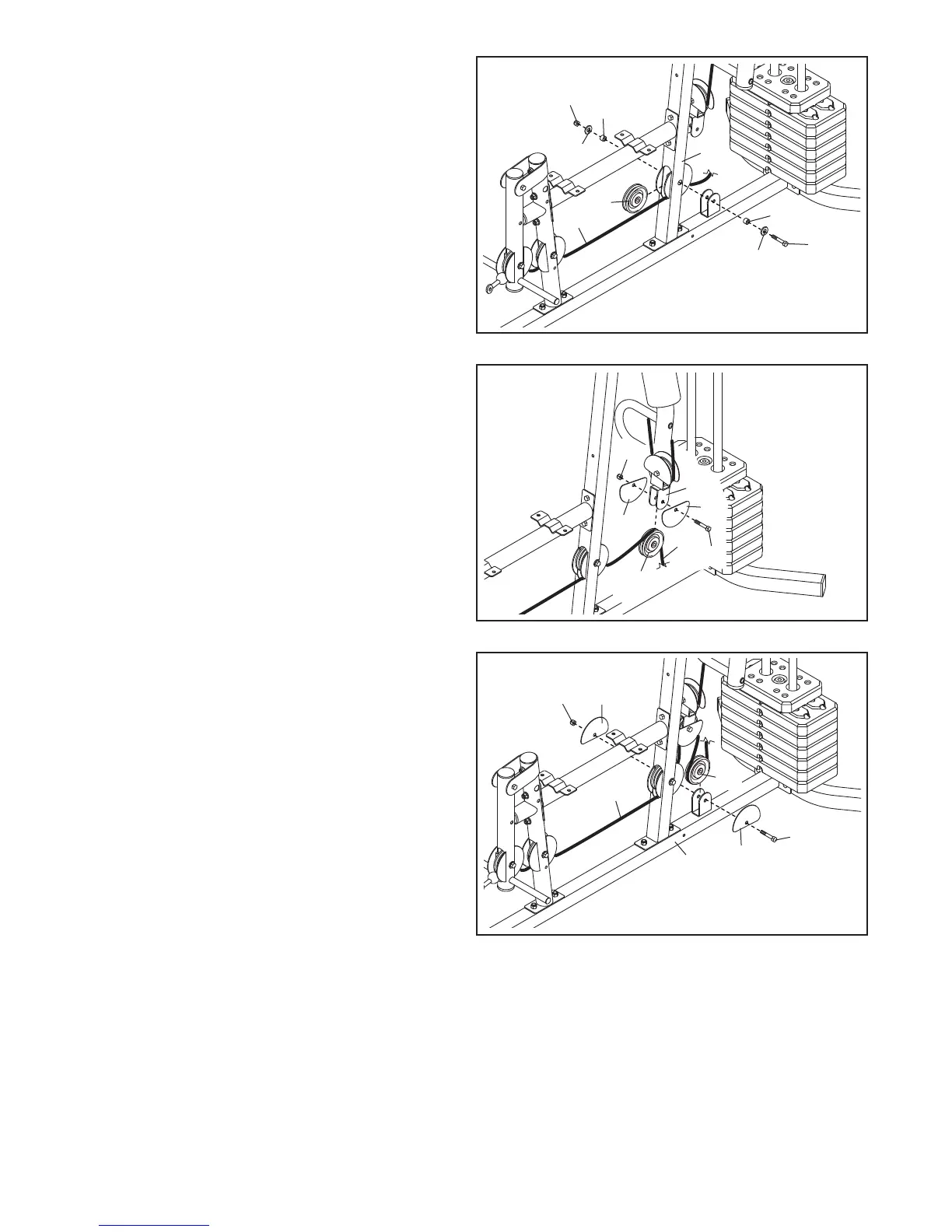

18. Route the Low Cable (53) under a 90mm Pulley
(48) and through the Upright (3). Attach the
Pulley inside the Upright with an M10 x 67mm
B
olt (71), two M10 Washers (57), two 12mm
Spacers (52), and an M10 Nylon Locknut (56).
19. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Nylon Locknut
(56). Make sure that the Half Guards are on
the outside of the U-bracket as shown.
53
43
19
56
3
5
3
52
52
57
57
48
71
18
20. Route the Low Cable (53) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Base (1) with an M10 x 46mm Bolt (81)
and an M10 Nylon Locknut (56). Make sure
that the Half Guards are on the outside of
the bracket as shown.
53
43
1
43
81
56
48
20
63
43
81
48
56
