Weider 2980 X - Page 15

15

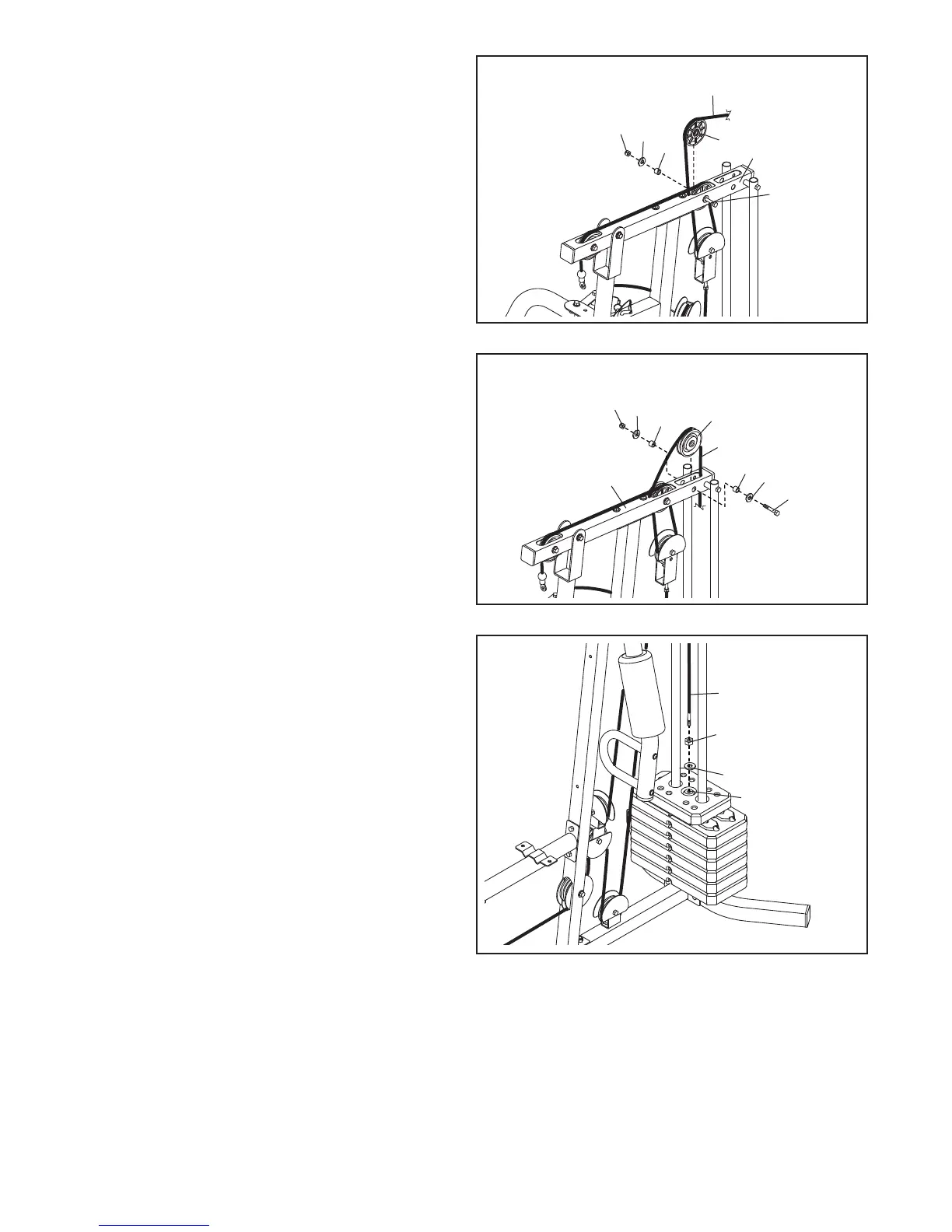

26. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4).
Attach the Pulley inside the Top Frame with an
M10 x 67mm Bolt (71), two M10 Washers (57),
two 12mm Spacers (52), and an M10 Nylon
Locknut (56).
25. Route the High Cable (55) up through the Top
Frame (4) and over a 90mm Thin Pulley (47).
Attach the Pulley inside the Top Frame with the
M
10 x 67mm Bolt (71) used in step 23, an
11mm Spacer (49), an M10 Washer (57), and
a
n M10 Nylon Locknut (56).
71
55
52
52
48
57
4
57
56
26
5
5
4
7
71
4
49
57
56
25
55
82
78
24
27
27. Completely thread an M12 Nut (82) onto the
High Cable (55). Place a Large Washer (78) on
top of the Weight Selector (24).
Tighten the High Cable (55) into the Weight
Selector (24) until all the slack is removed from
the cables. Tighten the M12 Nut (82) against
the Large Washer (78).
