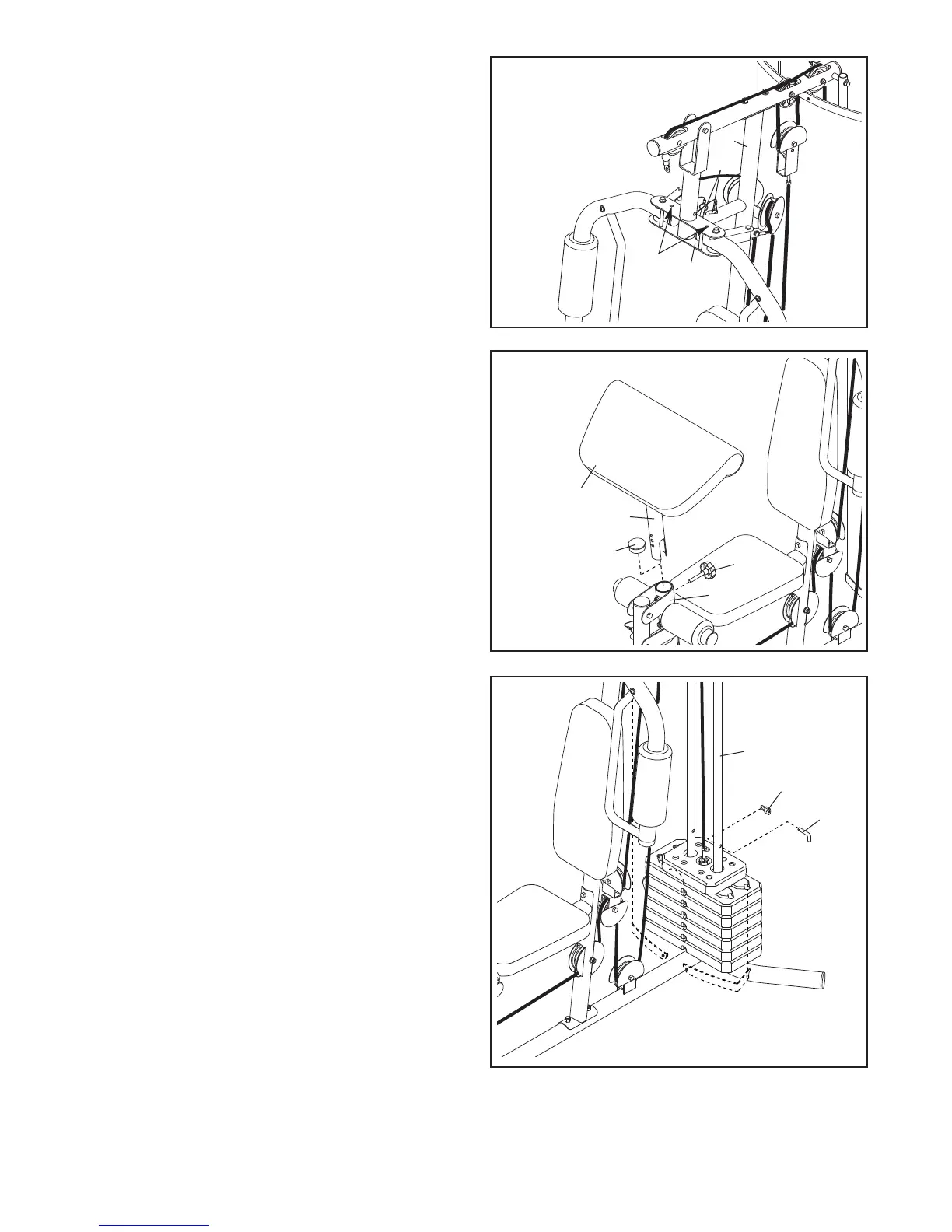

ARM CONVERSION
To use the Arms (9, 10) as butterfly arms, insert the
Arm Pins (40) into the holes in the Upright (3) and the
Pivot Frame (5) as shown.
To use the Arms (9, 10) as press arms, insert the Arm
P
ins (40) into the holes in the Pivot Frame (5) and the
Arms.
40
3
Holes
LOCKING THE WEIGHT STACK
Lock the weight stack by inserting the Lock Pin (89)
through a Weight Guide (21) and securing the Lock
(88) onto the Lock Pin.
13
61
14
7
30
USING THE CURL PAD
To use the Curl Pad (14), remove the 50mm Round
Inner Cap (30) from the Front Leg (7). Insert the Curl
Post (13) into the Front Leg and secure it in place
with the Curl Knob (61).
Remove the Curl Pad (14) and replace the 50mm
Round Inner Cap (30) into the Front Leg (7) when per-
forming an exercise that does not require the Curl
Pad. Store the Curl Pad away from the weight system.
