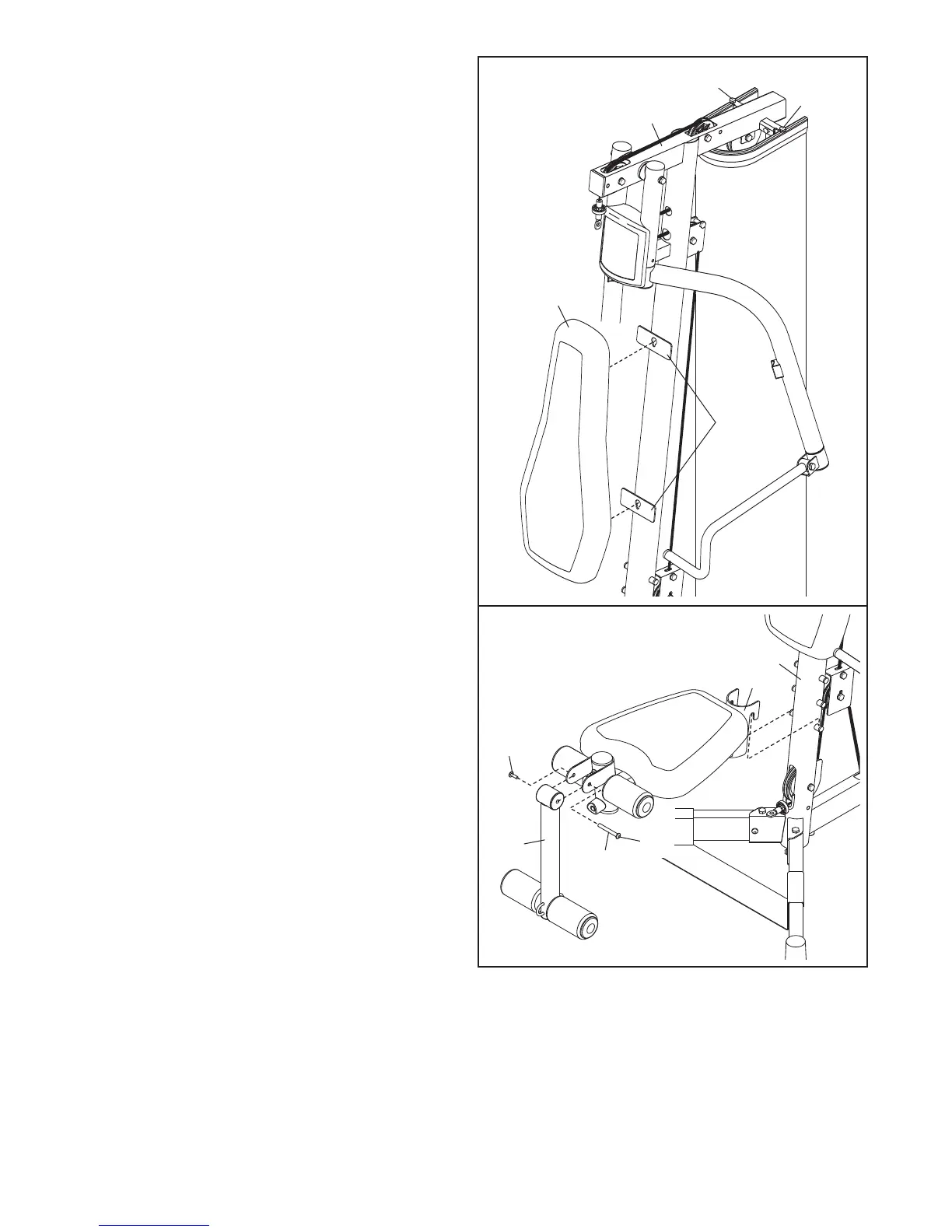

2. Locate the two indicated M6 x 30mm Bolts (74)
in the top of the Frame (1). Fully tighten the
B
olts.
L
ocate the two Mounting Pegs (not shown) on
the back of the Backrest (21). Insert the
Mounting Pegs into the indicated brackets on
the Frame (1) and then slide the Backrest down.
Slide the Seat Frame (4) down onto a set of
pegs on the Frame (1).
Apply some of the included grease to the barrel
of an M10 x 65mm Bolt Set (68). Attach the Leg
Lever (5) to the Seat Frame (4) with the Bolt
Set.
Make sure that the barrel of the Bolt Set
is inserted through both sides of the bracket
on the Seat Frame.
2
74
74
21
1
Brackets
68
4
1
68
5
Grease
