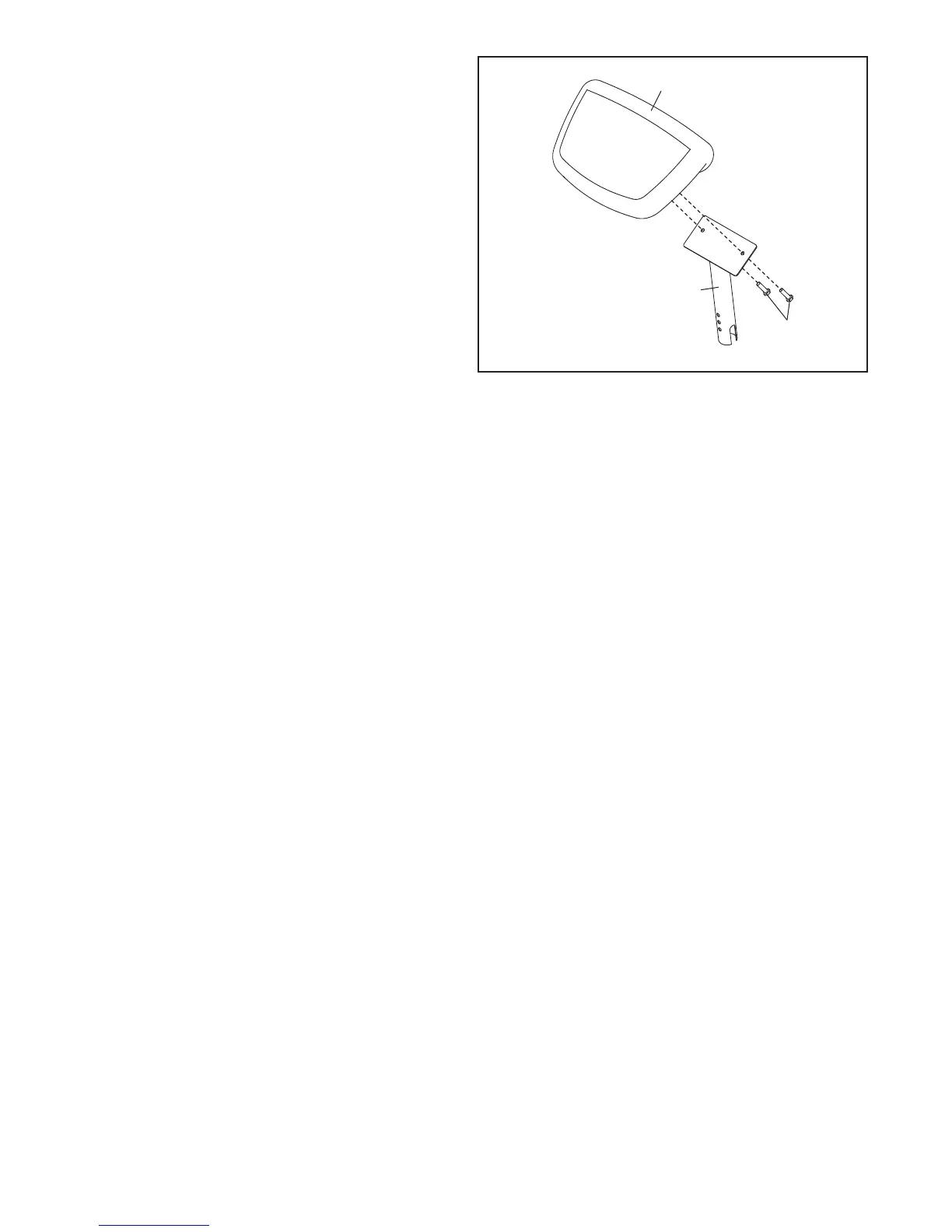

3. Remove the two M6 x 16mm Screws (67) from
the Curl Pad (23). Attach the Curl Pad to the
C
url Post (6) with the two Screws.
3
2
3
67
Make sure that all parts are properly tightened. The use of the remaining parts will be explained in ADJUSTMENT,
beginning on page 8.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem.
IMPORTANT: If
the cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAM on page 14 for proper cable routing. If there is any slack in the cables, you will need to
remove the slack by tightening the cables. See MAINTENANCE on page 13.
