Weider Pro 2250 - Seat Assembly

11
19
23
Bracket
15
12
21
55
21
41
10
10
43
43
23
3
72
63
10
2
67
42
20

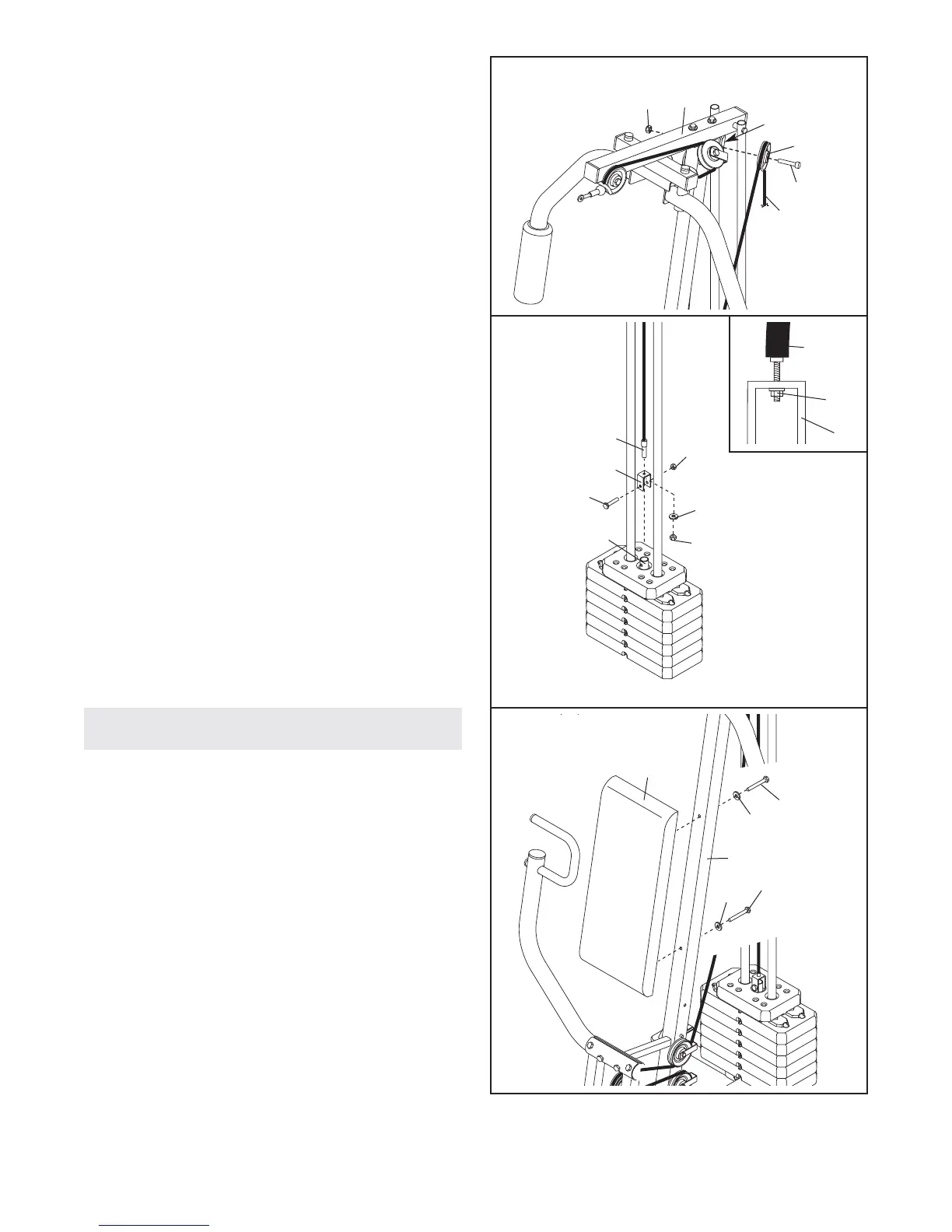

19. Note: The 3 1/2” Pulley (15) in this step has
been preassembled. It is shown exploded in
this drawing for clarity.
Route the Long Cable (23) over a 3 1/2” Pulley
(15). Make sure that the Cable Trap (66) is ori-
ented to hold the Cable in the groove of the
Pulley. Tighten the 3/8” x 2” Bolt (12) and the 3/8”
Nylon Locknut (21).
20. Attach the Long Cable (23) to the Small “U”-
bracket (67) with a 1/4” Nylon Locknut (2) and a
1/4” Washer (10).
See the inset drawing. Do not
overtighten the Locknut; it should be threaded
onto the end of the Cable so that two threads
are showing past the nut.
Attach the Small “U”-bracket (67) to the Weight
Tube (63) with a 5/16” x 1 3/4” Bolt (72) and a
5/16” Nylon Locknut (3).
23
67
2
21. Attach the Backrest (41) to the Front Upright (42)
with two 1/4” x 2 1/2” Screws (43) and two 1/4”
Washers (10).
Seat Assembly
