7. 7

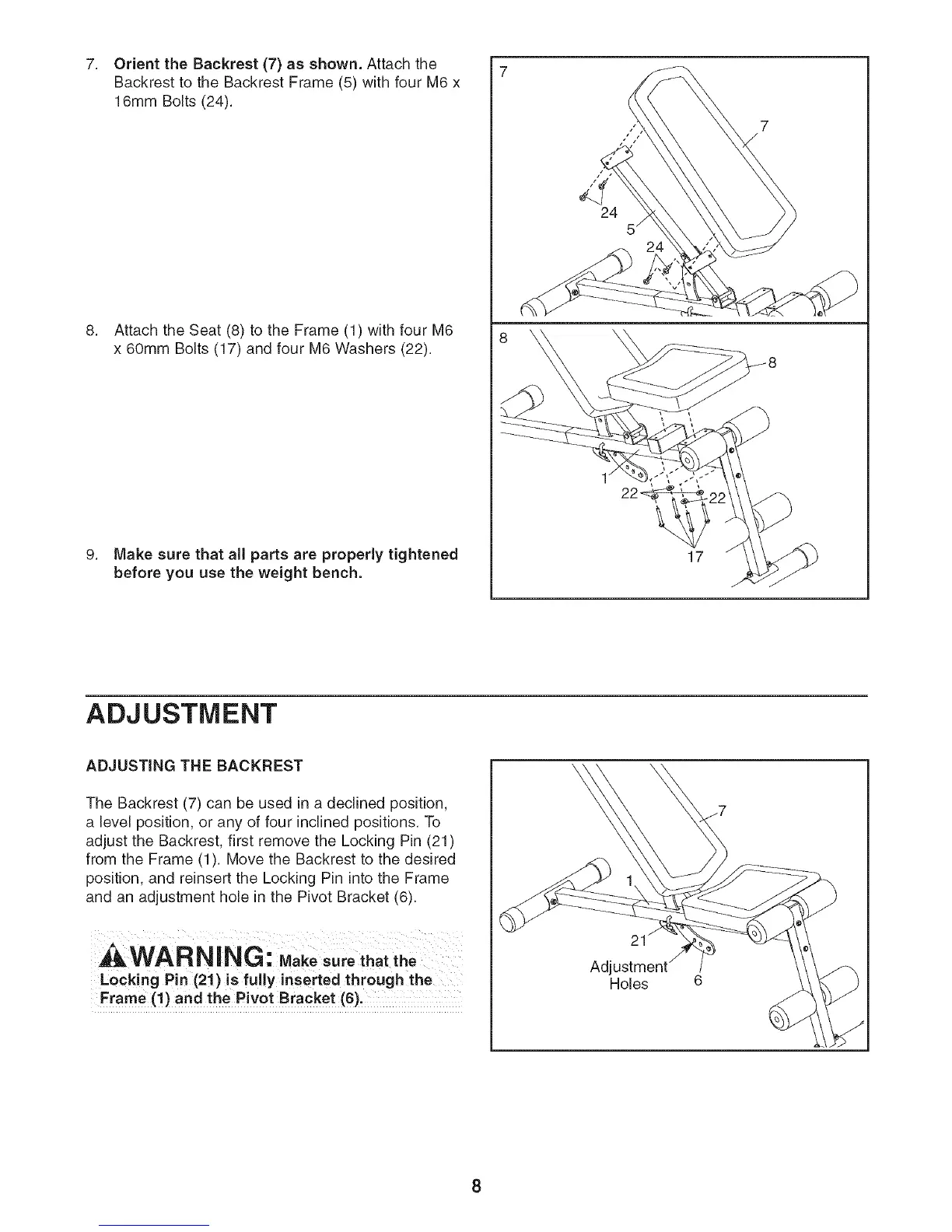

Orientthe Backrest(7)asshown.Attachthe
BackresttotheBackrestFrame(5)withfourM6x
t 6ramBolts(24).
AttachtheSeat(8)totheFrame(1)withfourM6
x60mmBolts(17)andfourM6Washers(22).
Makesure that all parts are properly tightened
before you use the weight bench.
24
5"
17
ADJUSTMENT
ADJUSTING THE BACKREST
The Backrest (7) can be used in a declined position,
a level position, or any of four inclined positions. To
adjust the Backrest, first remove the Locking Pin (21)
from the Frame (1). Move the Backrest to the desired
position, and reinsert the Locking Pin into the Frame
and an adjustment hole in the Pivot Bracket (6).
WARNING: Makesorethatthe
Locking Pin (21) is fully inserted through the
Frame (!)and the Pivot Bracket (6),
Adj
Holes
8
