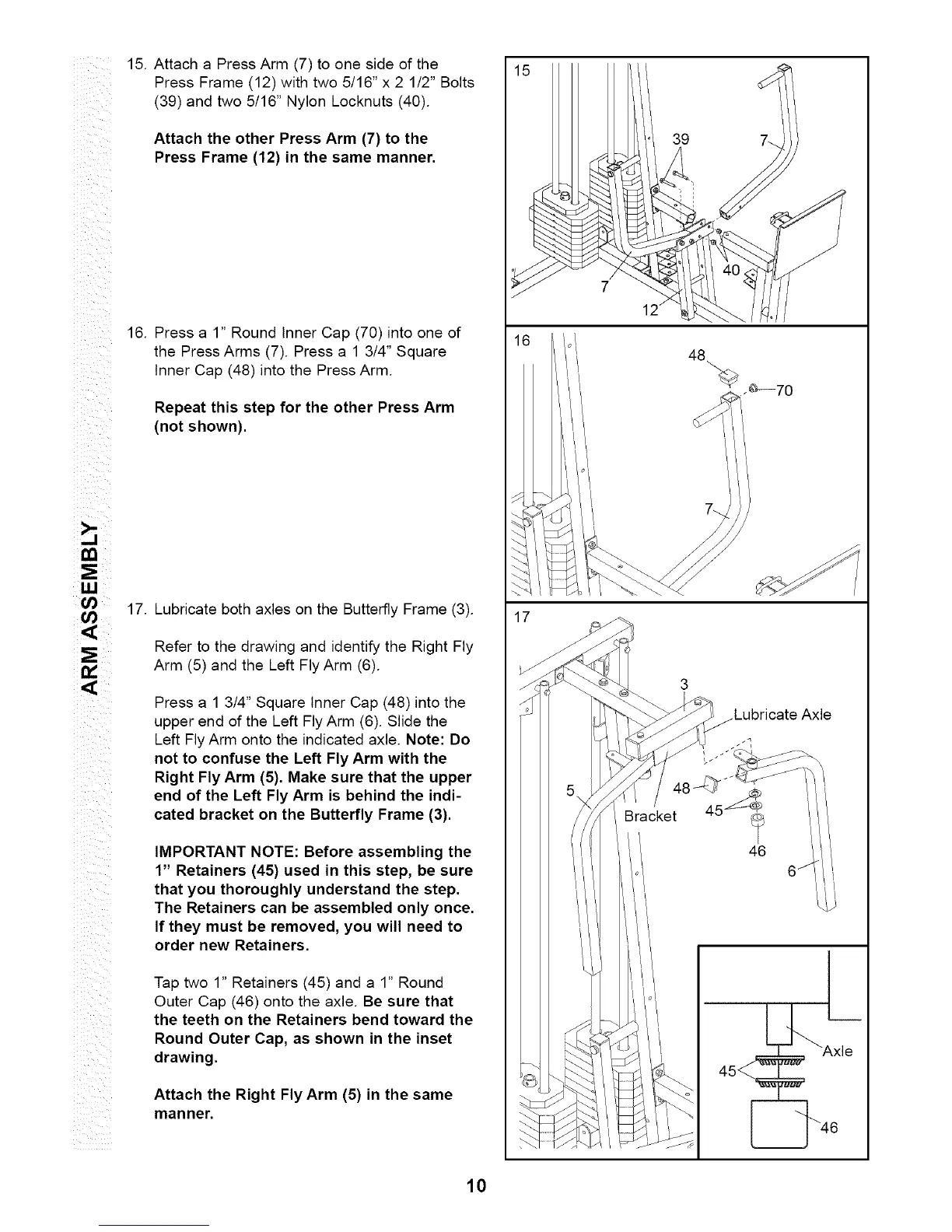

15.Attacha PressArm(7)toonesideofthe
PressFrame(12)withtwo5/16"x2 1/2"Bolts
(39)andtwo5/16"NylonLocknuts(40).
ii i
iii
1,1,1
L_
i_[ii
ii i
Attach the other Press Arm (7) to the
Press Frame (12) in the same manner.
16. Press a 1" Round Inner Cap (70) into one of
the Press Arms (7). Press a 1 3/4" Square
Inner Cap (48) into the Press Arm.
Repeat this step for the other Press Arm
(not shown).
17. Lubricate both axles on the Butterfly Frame (3).
Refer to the drawing and identify the Right Fly
Arm (5) and the Left Fly Arm (6).
Press a 1 3/4" Square Inner Cap (48) into the
upper end of the Left Fly Arm (6). Slide the
Left Fly Arm onto the indicated axle. Note: Do
not to confuse the Left Fly Arm with the
Right Fly Arm (5). Make sure that the upper
end of the Left Fly Arm is behind the indi-
cated bracket on the Butterfly Frame (3).
IMPORTANT NOTE: Before assembling the
1" Retainers (45) used in this step, be sure
that you thoroughly understand the step.
The Retainers can be assembled only once.
If they must be removed, you will need to
order new Retainers.
Tap two 1" Retainers (45) and a 1" Round
Outer Cap (46) onto the axle. Be sure that
the teeth on the Retainers bend toward the
Round Outer Cap, as shown in the inset
drawing.
Attach the Right Fly Arm (5) in the same
manner.
10
17
39
Bracket 45
t
46
To Next Page
