Weider PRO 3750 - Part Identification Chart

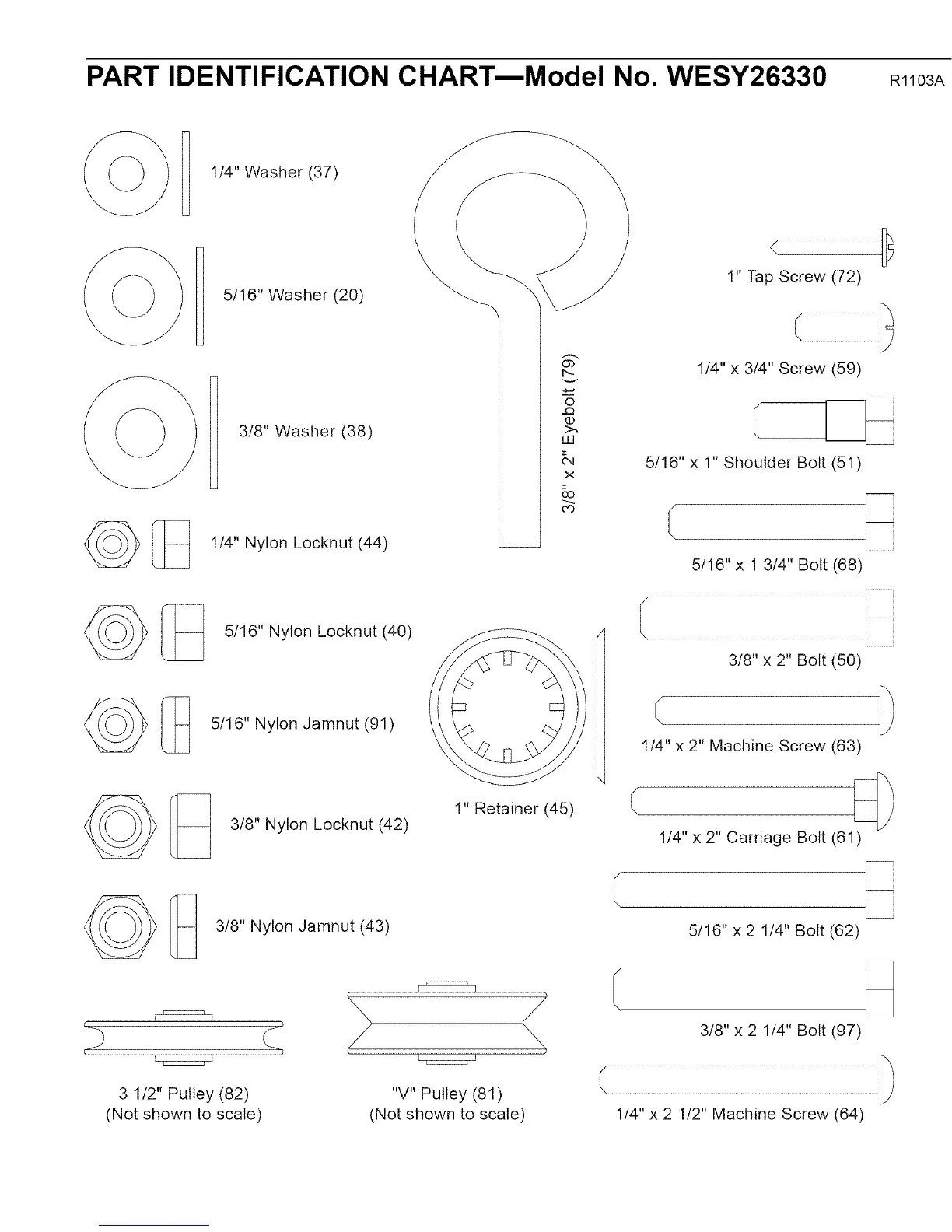

PART IDENTIFICATION CHART---Model No. WESY26330 R1103A
1/4" Washer (37)
5/16" Washer (20)
3/8" Washer (38)
1/4" Nylon Locknut (44)
_ 5/16" Nylon Locknut (40)
_ 5/16" Nylon Jamnut (91)
3/8" Nylon Locknut (42)
_ [_ 3/8" Nylon Jamnut (43)
1" Retainer (45)
< 9 \
"V" Pulley (81)
(Not shown to scale)
3 1/2" Pulley (82)
(Not shown to scale)
(
(
1" Tap Screw (72)
(
1/4" x 3/4" Screw (59)
zE
5/16" x 1" Shoulder Bolt (51)
f
/.
(
5/16" x 2 1/4" Bolt (62)
/
3/8" x 2 1/4" Bolt (97)
5/16" x 1 3/4" Bolt (68)
3/8" x 2" Bolt (50)
(
1/4" x 2" Machine Screw (63)
1/4" x 2" Carriage Bolt (61)
1/4" x 2 1/2" Machine Screw (64)
