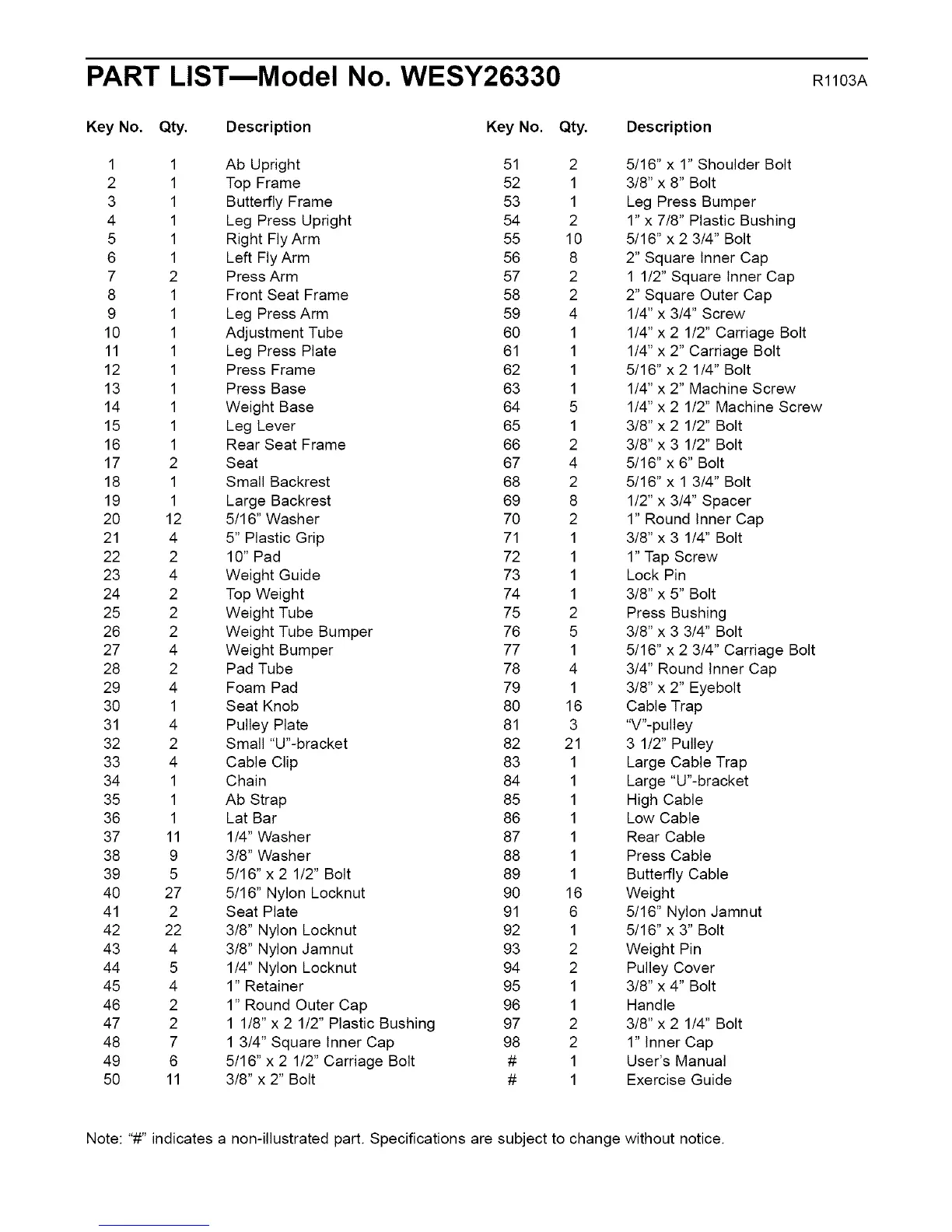

PART LISTmModel No. WESY26330 R1103A
Key No. Qty. Description Key No. Qty. Description
1 1 Ab Upright 51 2 5/16" x 1" Shoulder Bolt
2 1 Top Frame 52 1 3/8" x 8" Bolt
3 1 Butterfly Frame 53 1 Leg Press Bumper
4 1 Leg Press Upright 54 2 1" x 7/8" Plastic Bushing
5 1 Right Fly Arm 55 10 5/16" x 2 3/4" Bolt
6 1 Left Fly Arm 56 8 2" Square Inner Cap
7 2 Press Arm 57 2 1 1/2" Square Inner Cap
8 1 Front Seat Frame 58 2 2" Square Outer Cap
9 1 Leg Press Arm 59 4 1/4" x 3/4" Screw
10 1 Adjustment Tube 60 1 1/4" x 2 1/2" Carriage Bolt
11 1 Leg Press Plate 61 1 1/4" x 2" Carriage Bolt
12 1 Press Frame 62 1 5/16" x 2 1/4" Bolt
13 1 Press Base 63 1 1/4" x 2" Machine Screw
14 1 Weight Base 64 5 1/4" x 2 1/2" Machine Screw
15 1 Leg Lever 65 1 3/8" x 2 1/2" Bolt
16 1 Rear Seat Frame 66 2 3/8" x 3 1/2" Bolt
17 2 Seat 67 4 5/16" x 6" Bolt
18 1 Small Backrest 68 2 5/16" x 1 3/4" Bolt
19 1 Large Backrest 69 8 1/2" x 3/4" Spacer
20 12 5/16" Washer 70 2 1" Round Inner Cap
21 4 5" Plastic Grip 71 1 3/8" x 3 1/4" Bolt
22 2 10" Pad 72 1 1" Tap Screw
23 4 Weight Guide 73 1 Lock Pin
24 2 Top Weight 74 1 3/8" x 5" Bolt
25 2 Weight Tube 75 2 Press Bushing
26 2 Weight Tube Bumper 76 5 3/8" x 3 3/4" Bolt
27 4 Weight Bumper 77 1 5/16" x 2 3/4" Carriage Bolt
28 2 Pad Tube 78 4 3/4" Round Inner Cap
29 4 Foam Pad 79 1 3/8" x 2" Eyebolt
30 1 Seat Knob 80 16 Cable Trap
31 4 Pulley Plate 81 3 "V"-pulley
32 2 Small "U"-bracket 82 21 3 1/2" Pulley
33 4 Cable Clip 83 1 Large Cable Trap
34 1 Chain 84 1 Large "U"-bracket
35 1 Ab Strap 85 1 High Cable
36 1 Lat Bar 86 1 Low Cable
37 11 1/4" Washer 87 1 Rear Cable
38 9 3/8" Washer 88 1 Press Cable
39 5 5/16" x 2 1/2" Bolt 89 1 Butterfly Cable
40 27 5/16" Nylon Locknut 90 16 Weight
41 2 Seat Plate 91 6 5/16" Nylon Jamnut
42 22 3/8" Nylon Locknut 92 1 5/16" x 3" Bolt
43 4 3/8" Nylon Jamnut 93 2 Weight Pin
44 5 1/4" Nylon Locknut 94 2 Pulley Cover
45 4 1" Retainer 95 1 3/8" x 4" Bolt
46 2 1" Round Outer Cap 96 1 Handle
47 2 1 1/8" x 2 1/2" Plastic Bushing 97 2 3/8" x 2 1/4" Bolt
48 7 1 3/4" Square Inner Cap 98 2 1" Inner Cap
49 6 5/16" x 2 1/2" Carriage Bolt # 1 User's Manual
50 11 3/8" x 2" Bolt # 1 Exercise Guide
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.
