11.

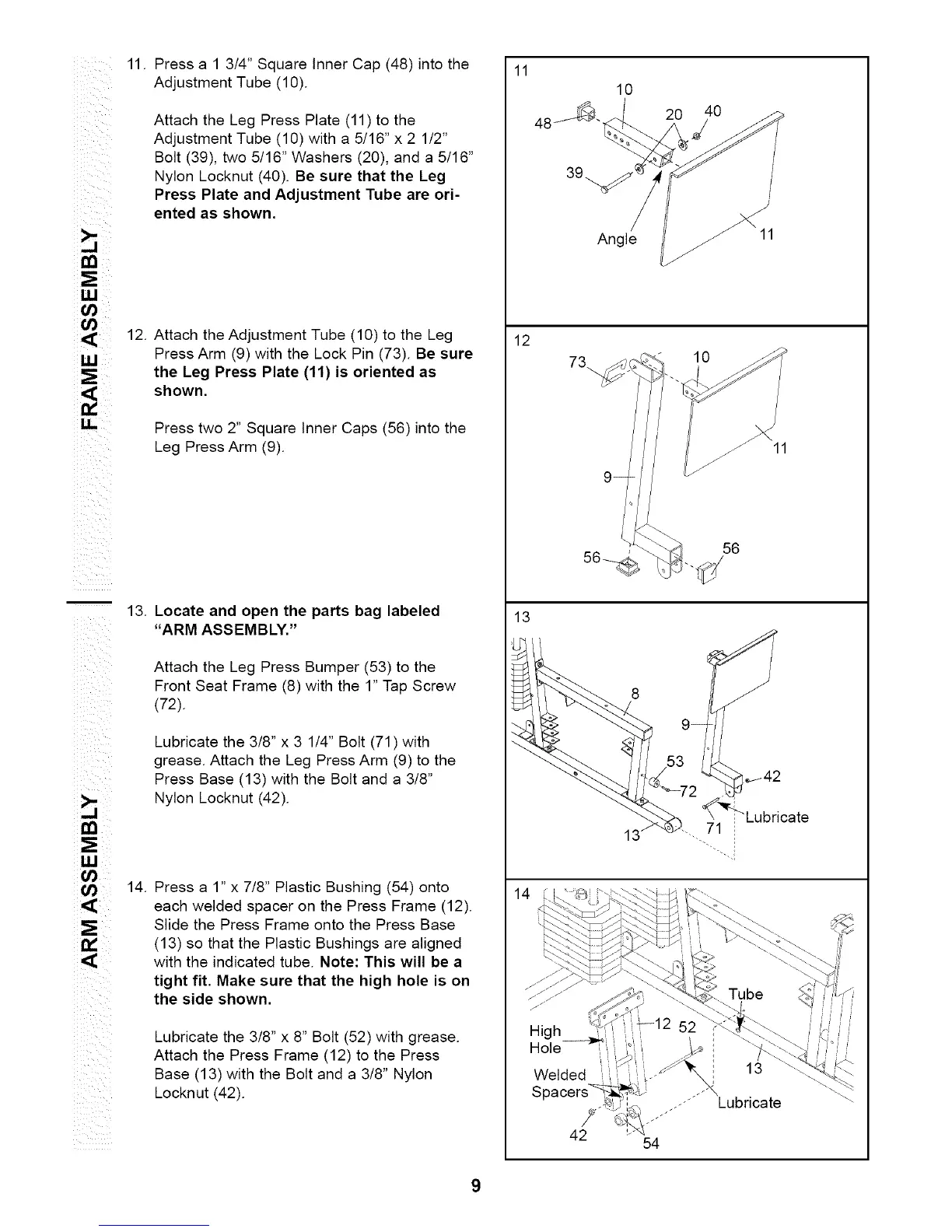

Press a 1 3/4" Square Inner Cap (48) into the
Adjustment Tube (10).
Attach the Leg Press Plate (11) to the
Adjustment Tube (10) with a 5/16" x 2 1/2"
Bolt (39), two 5/16" Washers (20), and a 5/16"
Nylon Locknut (40). Be sure that the Leg
Press Plate and Adjustment Tube are ori-
ented as shown.
12. Attach the Adjustment Tube (10) to the Leg
Press Arm (9) with the Lock Pin (73). Be sure
the Leg Press Plate (11) is oriented as
shown.
Press two 2" Square Inner Caps (56) into the
Leg Press Arm (9).
13.
Locate and open the parts bag labeled
"ARM ASSEMBLY."
Attach the Leg Press Bumper (53) to the
Front Seat Frame (8) with the 1" Tap Screw
(72).
Lubricate the 3/8" x 3 1/4" Bolt (71) with
grease. Attach the Leg Press Arm (9) to the
Press Base (13) with the Bolt and a 3/8"
Nylon Locknut (42).
14.
Press a 1" x 7/8" Plastic Bushing (54) onto
each welded spacer on the Press Frame (12).
Slide the Press Frame onto the Press Base
(13) so that the Plastic Bushings are aligned
with the indicated tube. Note: This will be a
tight fit. Make sure that the high hole is on
the side shown.
Lubricate the 3/8" x 8" Bolt (52) with grease.
Attach the Press Frame (12) to the Press
Base (13) with the Bolt and a 3/8" Nylon
Locknut (42).
11
12
13
10
20 40
Angle
73_ 10
/
/
L
56_ 56
13
High
Hole
Welded
13
Lubricate
