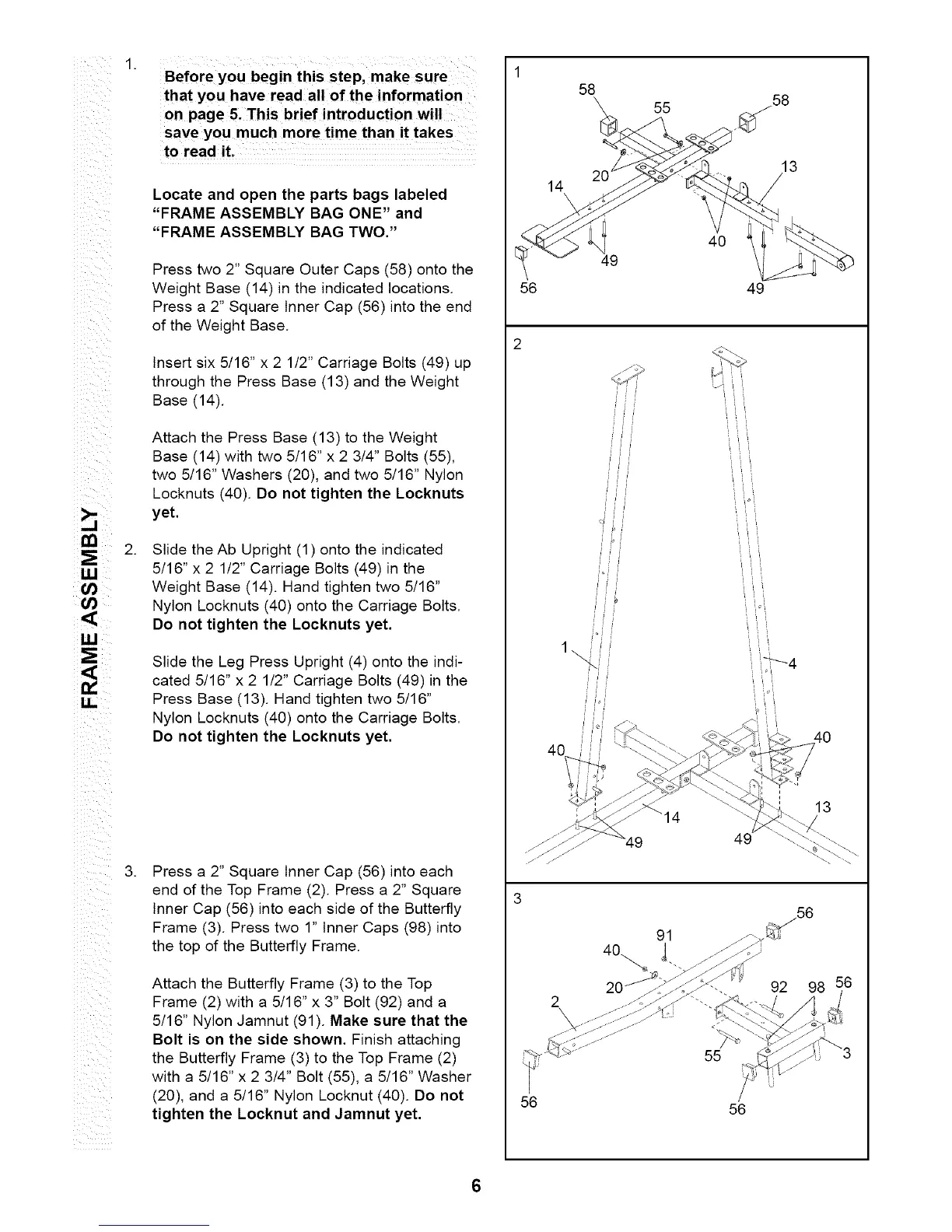

Before you begin this step, make sure
that you have read all of the information
on page 5. This brief introduction will
save you much more time than it takes
to read it.
Locate and open the parts bags labeled
"FRAME ASSEMBLY BAG ONE" and
"FRAME ASSEMBLY BAG TWO."
Press two 2" Square Outer Caps (58) onto the
Weight Base (14) in the indicated locations.
Press a 2" Square Inner Cap (56) into the end
of the Weight Base.
Insert six 5/16" x 2 1/2" Carriage Bolts (49) up
through the Press Base (13) and the Weight
Base (14).
Attach the Press Base (13) to the Weight
Base (14) with two 5/16" x 2 3/4" Bolts (55),
two 5/16" Washers (20), and two 5/16" Nylon
Locknuts (40). Do not tighten the Locknuts
yet.
Slide the Ab Upright (1) onto the indicated
5/16" x 2 1/2" Carriage Bolts (49) in the
Weight Base (14). Hand tighten two 5/16"
Nylon Locknuts (40) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
Slide the Leg Press Upright (4) onto the indi-
cated 5/16" x 2 1/2" Carriage Bolts (49) in the
Press Base (13). Hand tighten two 5/16"
Nylon Locknuts (40) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
Press a 2" Square Inner Cap (56) into each
end of the Top Frame (2). Press a 2" Square
Inner Cap (56) into each side of the Butterfly
Frame (3). Press two 1" Inner Caps (98) into
the top of the Butterfly Frame.
Attach the Butterfly Frame (3) to the Top
Frame (2) with a 5/16" x 3" Bolt (92) and a
5/16" Nylon Jamnut (91). Make sure that the
Bolt is on the side shown. Finish attaching
the Butterfly Frame (3) to the Top Frame (2)
with a 5/16" x 2 3/4" Bolt (55), a 5/16" Washer
(20), and a 5/16" Nylon Locknut (40). Do not
tighten the Locknut and Jamnut yet.
56
?
56
14
\
4O
58
55
. 58
13
4O
49
49
/
i,
i i
i/i
L _ L
4c
91
<-
55
56
13
92 98
