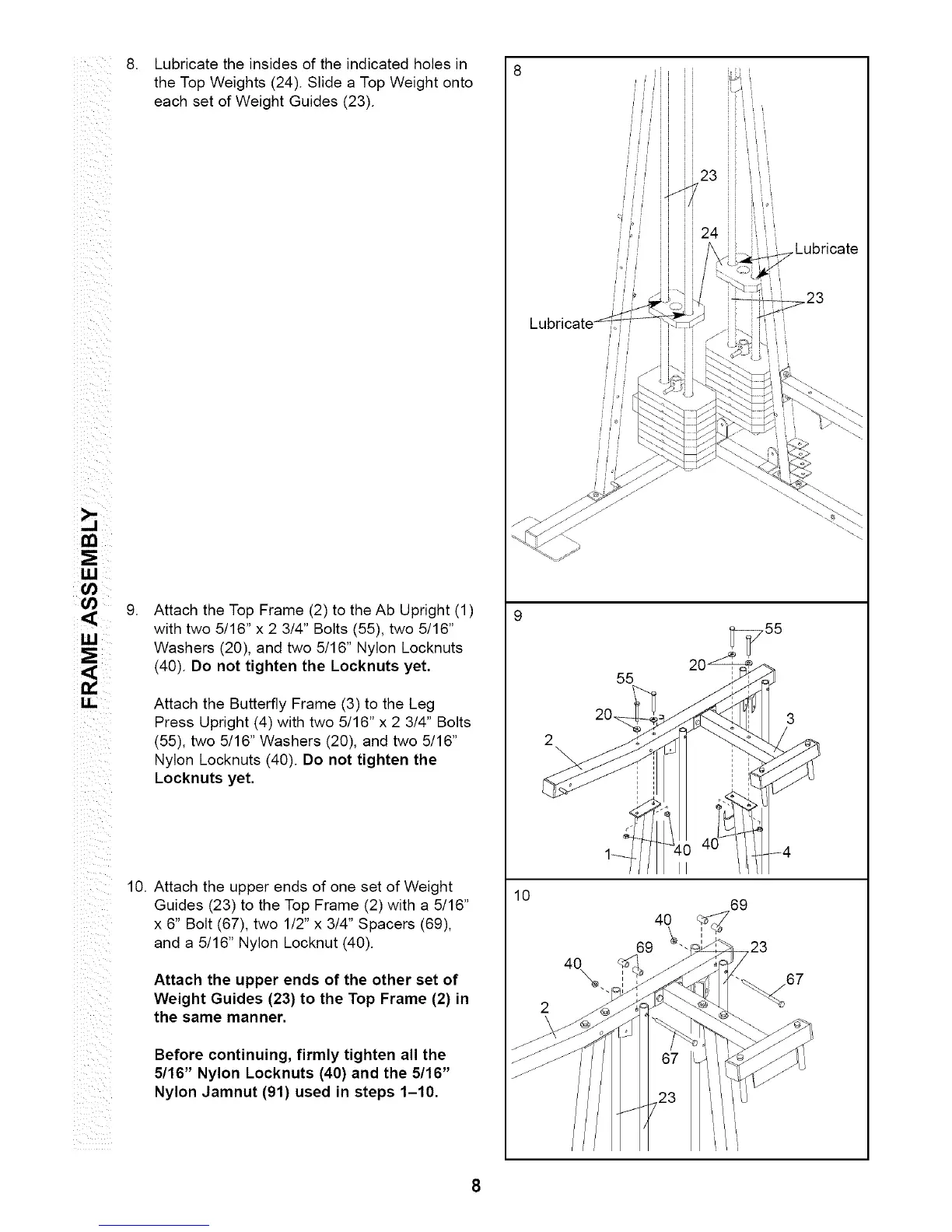

8. Lubricate the insides of the indicated holes in
the Top Weights (24). Slide a Top Weight onto
each set of Weight Guides (23).
.
Attach the Top Frame (2) to the Ab Upright (1)
with two 5/16" x 2 3/4" Bolts (55), two 5/16"
Washers (20), and two 5/16" Nylon Locknuts
(40). Do not tighten the Locknuts yet.
Attach the Butterfly Frame (3) to the Leg
Press Upright (4) with two 5/16" x 2 3/4" Bolts
(55), two 5/16" Washers (20), and two 5/16"
Nylon Locknuts (40). Do not tighten the
Locknuts yet.
10.
Attach the upper ends of one set of Weight
Guides (23) to the Top Frame (2) with a 5/16"
x 6" Bolt (67), two 1/2" x 3/4" Spacers (69),
and a 5/16" Nylon Locknut (40).
Attach the upper ends of the other set of
Weight Guides (23) to the Top Frame (2) in
the same manner.
Before continuing, firmly tighten all the
5/16" Nylon Locknuts (40) and the 5/16"
Nylon Jamnut (91) used in steps 1-10.
10
i
55
20.
40
/23
69
Lubricate
23
To Next Page
