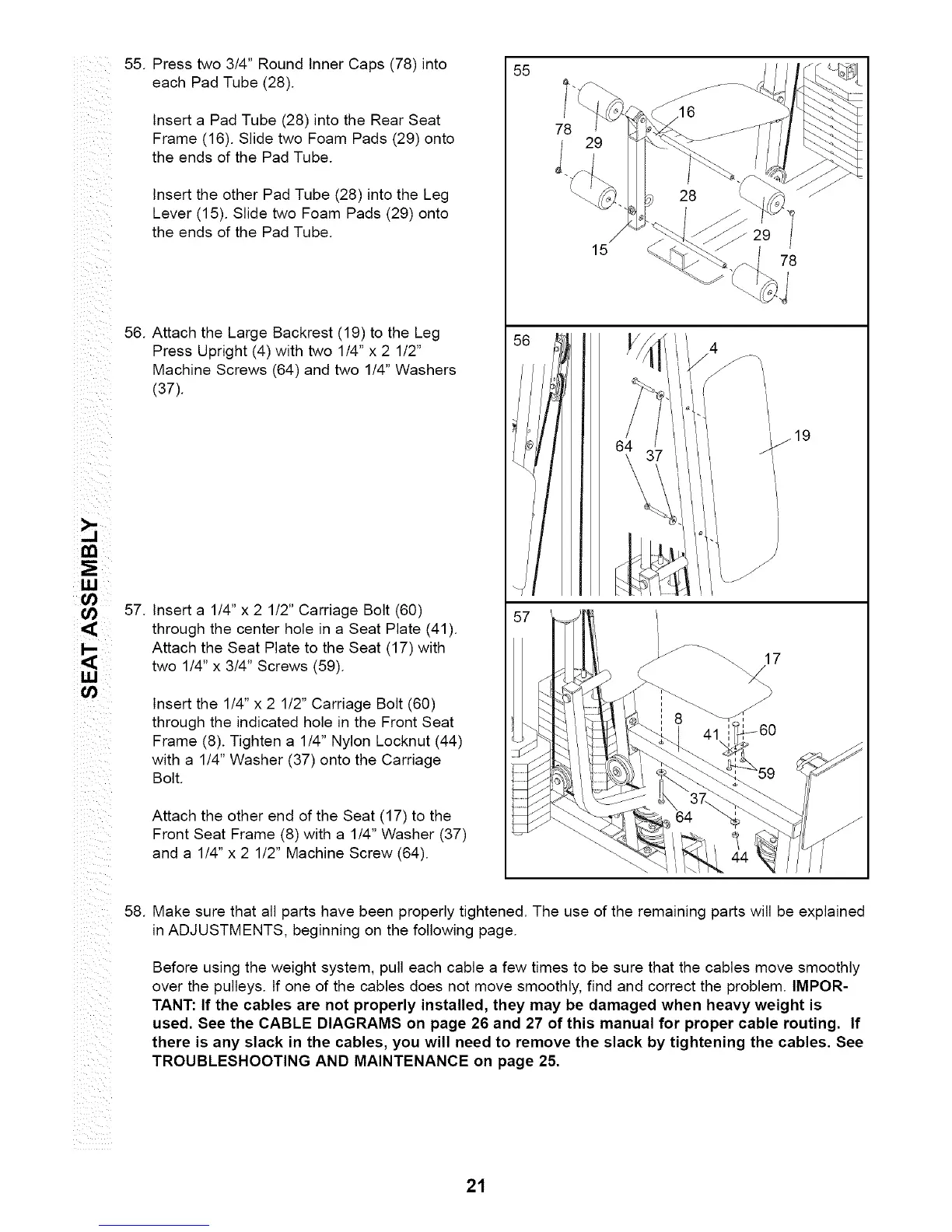

55.
Press two 3/4" Round Inner Caps (78) into
each Pad Tube (28).
Insert a Pad Tube (28) into the Rear Seat
Frame (16). Slide two Foam Pads (29) onto
the ends of the Pad Tube.
Insert the other Pad Tube (28) into the Leg
Lever (15). Slide two Foam Pads (29) onto
the ends of the Pad Tube.
56. Attach the Large Backrest (19) to the Leg
Press Upright (4) with two 1/4" x 2 1/2"
Machine Screws (64) and two 1/4" Washers
(37).
57.
Insert a 1/4" x 2 1/2" Carriage Bolt (60)
through the center hole in a Seat Plate (41).
Attach the Seat Plate to the Seat (17) with
two 1/4" x 3/4" Screws (59).
Insert the 1/4" x 2 1/2" Carriage Bolt (60)
through the indicated hole in the Front Seat
Frame (8). Tighten a 1/4" Nylon Locknut (44)
with a 1/4" Washer (37) onto the Carriage
Bolt.
Attach the other end of the Seat (17) to the
Front Seat Frame (8) with a 1/4" Washer (37)
and a 1/4" x 2 1/2" Machine Screw (64).
55
78
29
2
15
J
f
58.
Make sure that all parts have been properly tightened. The use of the remaining parts will be explained
in ADJUSTMENTS, beginning on the following page.
Before using the weight system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPOR-
TANT: If the cables are not properly installed, they may be damaged when heavy weight is
used. See the CABLE DIAGRAMS on page 26 and 27 of this manual for proper cable routing. If
there is any slack in the cables, you will need to remove the slack by tightening the cables. See
TROUBLESHOOTING AND MAINTENANCE on page 25.
21
