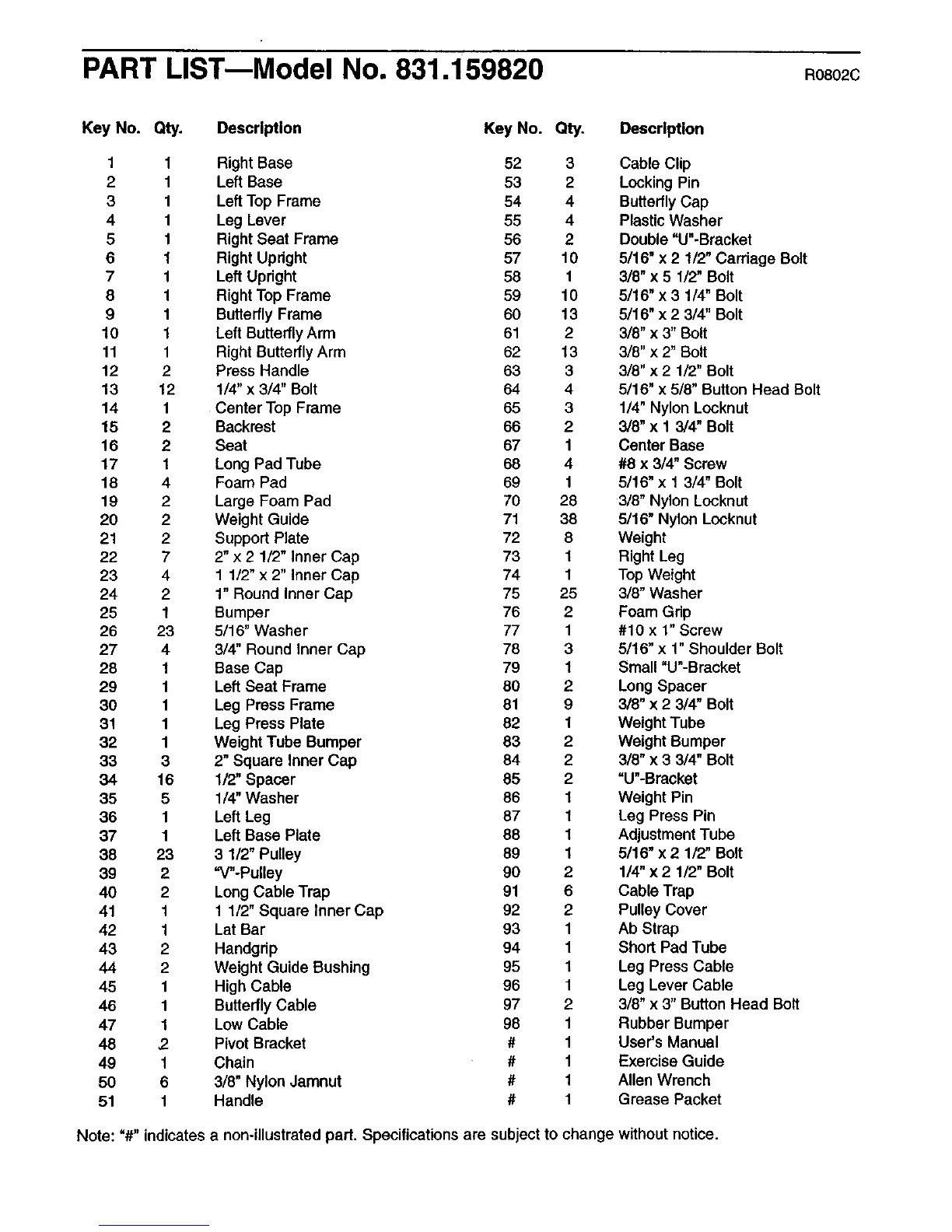

PART LIST--Model No. 831.159820 R08O2C
Key No. Qty. Description
Key No. Qty. Description
1 1 Right Base 52 3 Cable Clip
2 1 Left Base 53 2 Locking Pin
3 1 Left Top Frame 54 4 Butterfly Cap
4 1 Leg Lever 55 4 Plastic Washer
5 1 Right Seat Frame 56 2 Double "U"-Bracket
6 1 Right Updght 57 10 5/16" x 2 1/2" Carriage Bolt
7 1 Left Upright 58 1 3/8" x 5 1/2" Bolt
8 1 Right Top Frame 59 10 5/16" x 3 1/4" Bolt
9 1 Butterfly Frame 60 13 5/16" x 2 3/4" Bolt
10 1 Left ButterflyArm 61 2 3/8" x 3" Bolt
11 1 Right Butterfly Arm 62 13 3/8" x 2" Bolt
12 2 Press Handle 63 3 3/8" x 2 1/2" Bolt
13 12 1!4" x 3/4" Bolt 64 4 5/16" x 5/8" Button Head Bolt
14 1 Center Top Frame 65 3 1/4" Nylon Locknut
15 2 Backrest 66 2 3/8" x 1 3/4" Bolt
16 2 Seat 67 1 Center Base
17 1 Long Pad Tube 68 4 #8 x 3/4" Screw
18 4 Foam Pad 69 1 5/16" x 1 3/4" Bolt
19 2 Large Foam Pad 70 28 3/8" Nylon Locknut
20 2 Weight Guide 71 38 5/16" Nylon Locknut
21 2 Support Plate 72 8 Weight
22 7 2" x 2 1/2" Inner Cap 73 1 Right Leg
23 4 1 1/2" x 2" inner Cap 74 1 Top Weight
24 2 1" Round Inner Cap 75 25 3/8" Washer
25 1 Bumper 76 2 Foam Grip
26 23 5/16" Washer 77 1 #10 x 1" Screw
27 4 3/4" Round Inner Cap 78 3 5/16" x 1" Shoulder Bolt
28 1 Base Cap 79 1 Small "U"-Bracket
29 1 Left Seat Frame 80 2 Long Spacer
30 1 Leg Press Frame 81 9 3/8" x 2 3/4" Bolt
31 1 Leg Press Plate 82 1 Weight Tube
32 1 Weight Tube Bumper 83 2 Weight Bumper
33 3 2" Square Inner Cap 84 2 3/8" x 3 3/4" Bolt
34 16 1/2" Spacer 85 2 "U"-Bracket
35 5 1/4" Washer 86 1 Weight Pin
36 1 Left Leg 87 1 Leg Press Pin
37 1 Left Base Plate 88 1 Adjustment Tube
38 23 3 1/2" Pulley 89 1 5/16" x 2 1/2" Bolt
39 2 "V"-Pulley 90 2 1/4" x 2 1/2" Bolt
40 2 Long Cable Trap 91 6 Cable Trap
41 1 1 1/2" Square Inner Cap 92 2 Pulley Cover
42 1 Lat Bar 93 1 Ab Strap
43 2 Handgdp 94 1 Short Pad Tube
44 2 Weight Guide Bushing 95 1 Leg Press Cable
45 1 High Cable 96 1 Leg Lever Cable
46 1 Butterfly Cable 97 2 3/8" x 3" Button Head Bolt
47 1 Low Cable 98 1 Rubber Bumper
48 2. Pivot Bracket # 1 User's Manual
49 1 Chain # 1 Exemise Guide
50 6 3/8" Nylon Jamnut # 1 Allen Wrench
51 1 Handle # 1 Grease Packet
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice.
