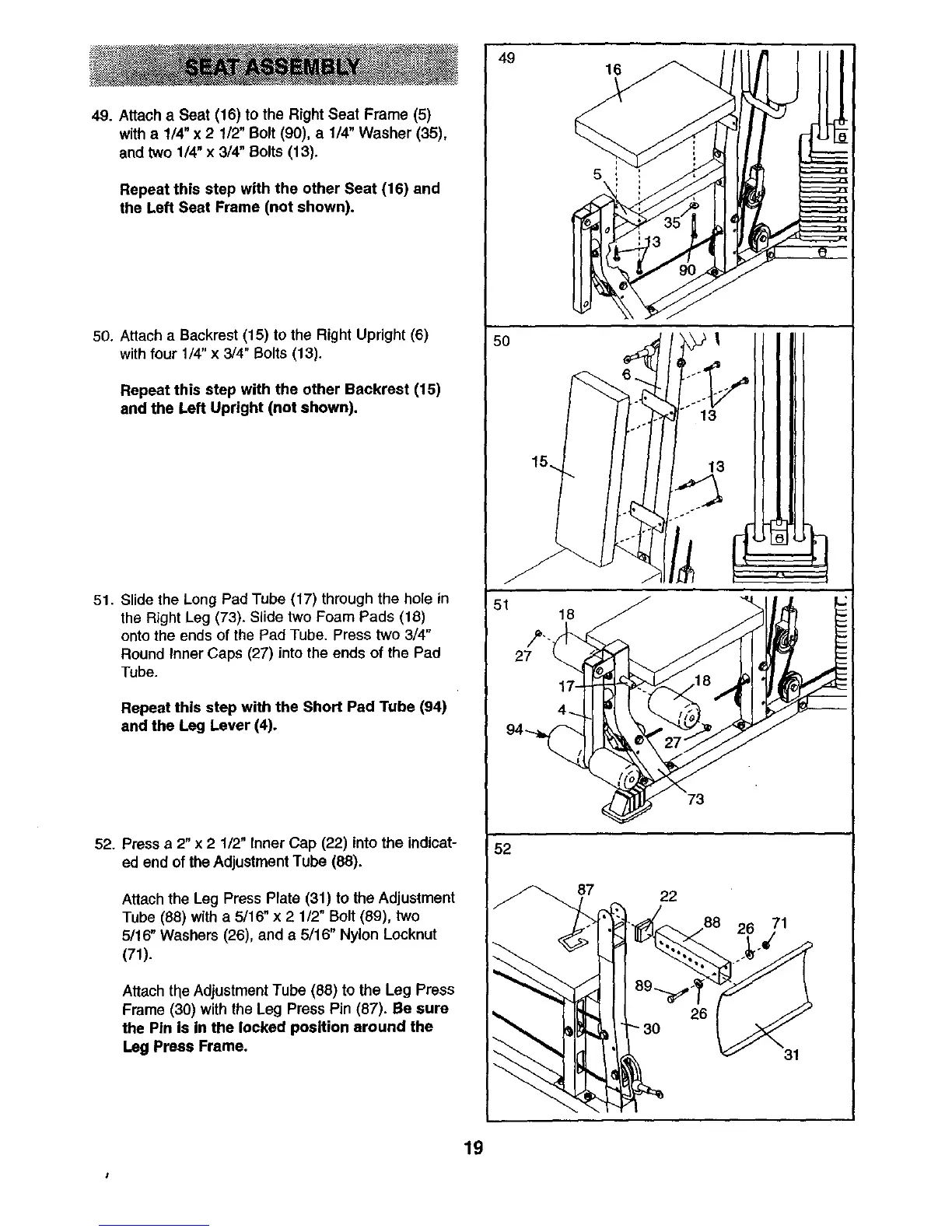

49. Attach a Seat (16) to the Right Seat Frame (5)
with a 1/4" x 2 1/2" Bolt (90), a 1/4" Washer (35),
and two 1/4" x 3/4" Bolts (13).
Repeat this step with the other Seat (16) and
the Left Seat Frame (not shown).
50. Attach a Backrest (15) to the Right Upright (6)
with four 1/4" x 3/4" Bolts (13).
Repeat this step with the other Backrest (15)
and the Left Upright (not shown).
51. Slide the Long Pad Tube (17) through the hole in
the Right Leg (73). Slide two Foam Pads (18)
onto the ends of the Pad Tube. Press two 3/4"
Round Inner Caps (27) into the ends of the Pad
Tube.
Repeat this step with the Short Pad Tube (94)
and the Leg Lever (4).
52. Press a 2" x 2 1/2" Inner Cap (22) into the indicat-
ed end of the Adjustment Tube (88).
Attach the Leg Press Plate (31) to the Adjustment
Tube (88) with a 5/16" x 2 1/2" Bolt (89), two
5/16" Washers (26), and a 5/16" Nylon Locknut
(71).
Attach the Adjustment Tube (88) to the Leg Press
Frame (30) with the Leg Press Pin (87). Be sure
the Pin is in the locked position around the
Leg Press Frame.
49
5O
15.
52
87
16
5
13
13
73
22
26
26 71
31
19
