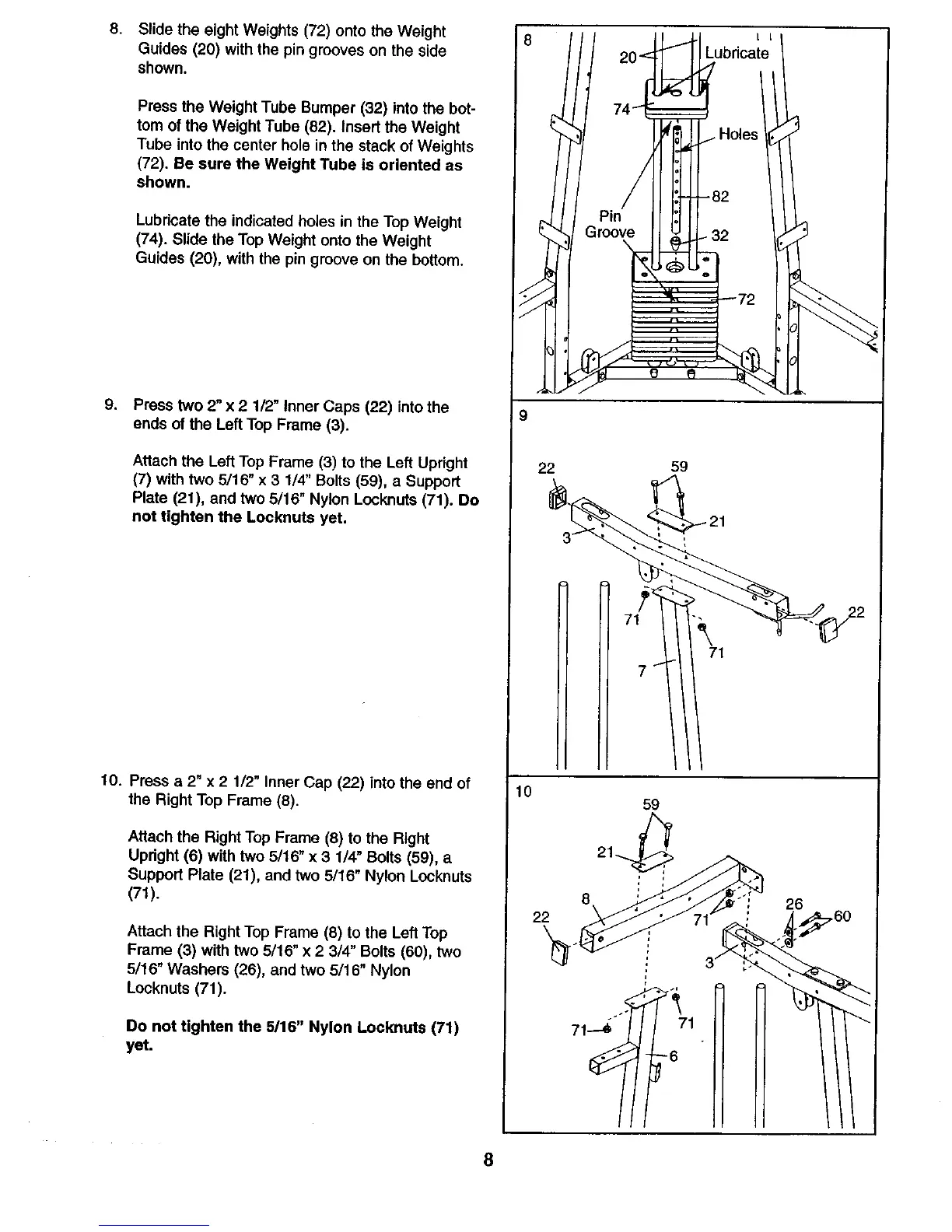

Slide the eight Weights (72) onto the Weight
Guides (20) with the pin grooves on the side
shown.
Press the Weight Tube Bumper (32) intothe bot-
tom of the Weight Tube (82). Insert the Weight
Tube into the center hole in the stack of Weights
(72). Be sure the Weight Tube is oriented as
shown.
Lubricate the indicated holes in the Top Weight
(74). Slide the Top Weight onto the Weight
Guides (20), with the pin groove on the bottom.
.
Press two 2" x 2 112" inner Caps (22) into the
ends of the Left Top Frame (3).
Attach the LeftTop Frame (3) to the Left Upright
(7) with two 5/16" x 3 1/4" Bolts (59), a Support
Plate (21), and two 5/16" Nylon Looknuts (71). Do
not tighten the Locknuts yet.
10.
Press a 2" x 2 1/2" Inner Cap (22) into the end of
the Right Top Frame (8).
Attach the Right Top Frame (8) to the Right
Upright (6) with two 5/16" x 3 1/4" Bolts (59), a
Support Plate (21), and two 5/16" Nylon Locknuts
(71).
Attach the Right Top Frame (8) to the Left Top
Frame (3) with two 5/16" x 2 3/4" Bolts (60), two
5/16" Washers (26), and two 5/16" Nylon
Looknuts (71).
Do not tighten the 5/16" Nylon Locknuts (71)
yet.
9
22
10
22
8
59
59
L L
Lubricate
16 _71
26
_7 60
8
To Next Page
