6.7 Adjusting the transfer ribbon run
Creases in the transfer ribbon run can lead to errors in the
print image. To avoid creasing, the transfer ribbon deec-
tion (3) can be adjusted.
It’s best to perform this adjustment during print
operation.
Hexagon key
2
1

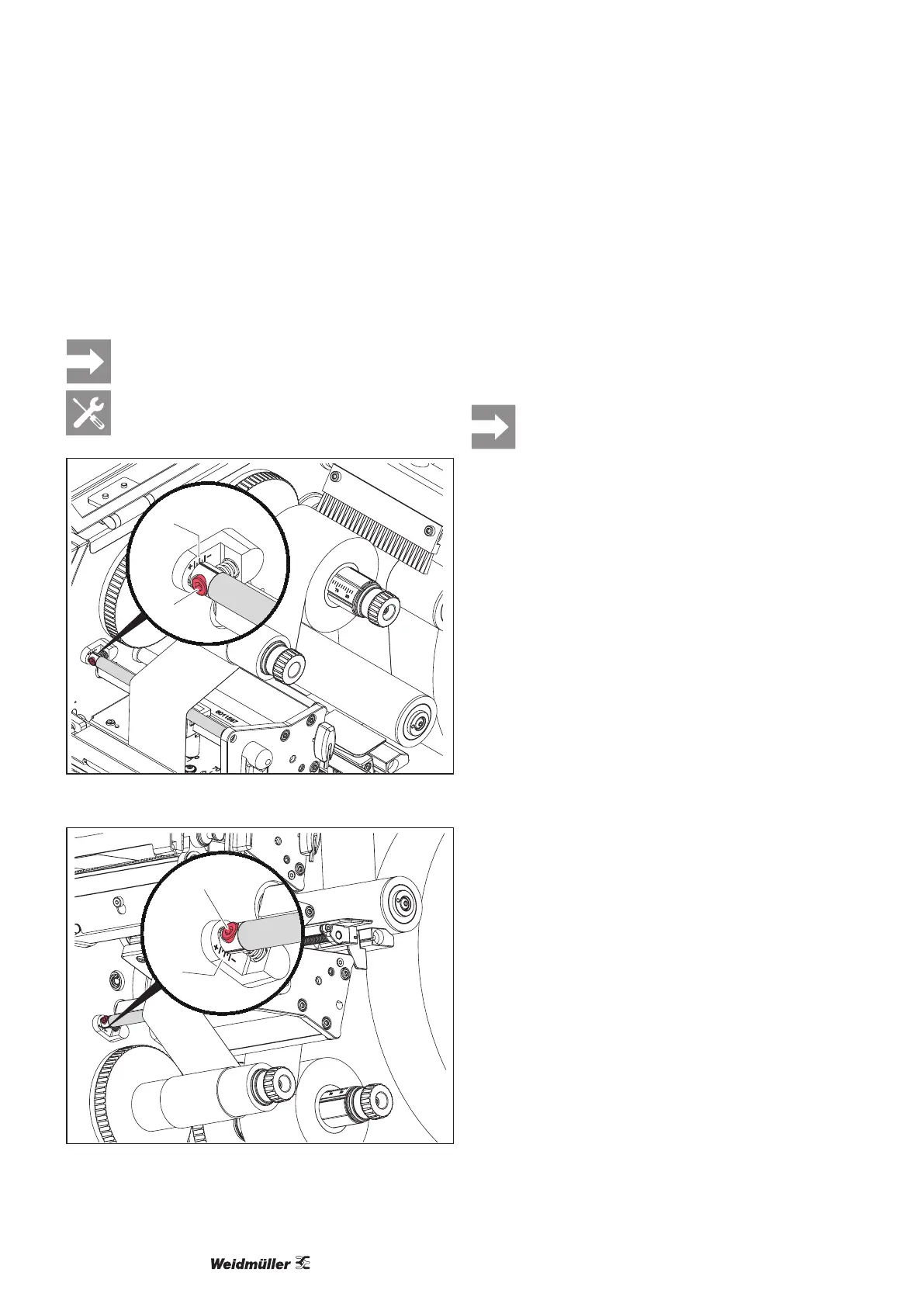

Figure 6.10 Adjusting the top transfer ribbon run
1
2
Figure 6.11 Adjusting the bottom transfer ribbon run
► Read the current setting on the scale (1) and note this
down.
► Turn the screw (2) and observe the behaviour of the rib-
bon.
Turning in the + direction tensions the inner edge of the
transfer ribbon.
Turning in the – direction tensions the outer edge of the
transfer ribbon.
Incorrect adjustment of the head locking system
can also cause creases in the ribbon run.
