Weidmüller THM MultiMark TWIN - Page 7

72967530000/00/06.2023
Device description
15
16
23
24
25
17
18
20
19
21
26
27
22

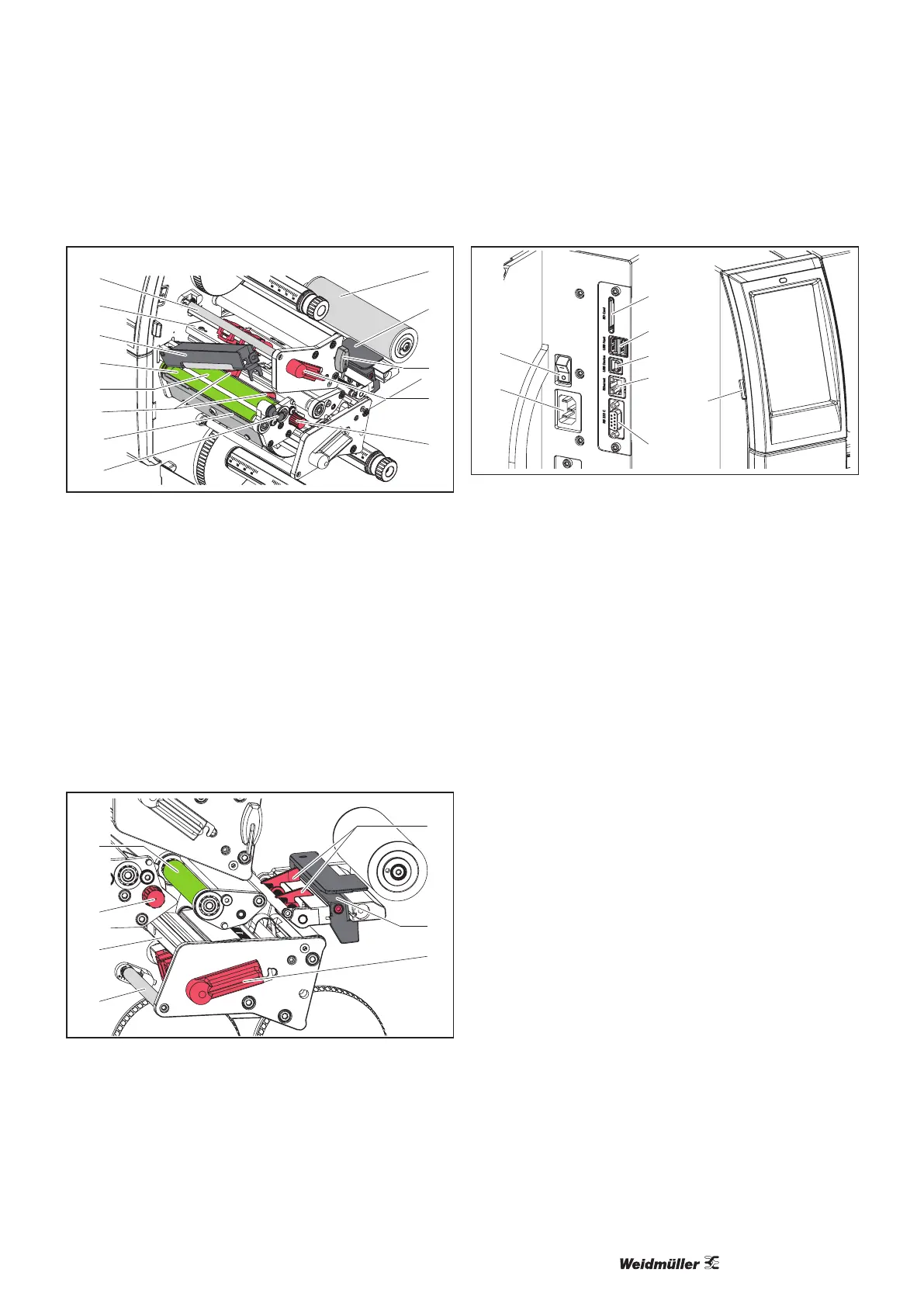

Figure 3.3 Top print mechanism
15 Deflection for top transfer ribbon
16 Head bracket with top printhead
17 Locking system
18 Pull roller
19 Top print roller
20 Top guides
21 Tear-off edge
22 Locking bolt
23 Pulley
24 Label light barrier
25 Hexagon key
26 Lever to lock the top printhead
27 Knob to adjust the guides
29
28
31
30
24
32
27
Figure 3.4 Bottom print mechanism
28 Bottom print roller
29 Head bracket with bottom printhead
30 Deflection for bottom transfer ribbon
31 Bottom guides
32 Lever to lock the bottom printhead
33
34
37
35
36
39
38
40
Figure 3.5 Connections
33 Mains switch
34 Mains connection socket
35 Slot for SD card
36 2 USB host interfaces for keyboard, scanner, USB stick, USB
WLAN adapter, USB Bluetooth adapter or external control panel
37 USB high-speed device interface
38 Ethernet 10/100 Base-T
39 RS-232 interface
40 USB host interface for service key, USB stick, USB WLAN
adapter or USB Bluetooth adapter
