5.2.6 SPI-500W-R4 Laser

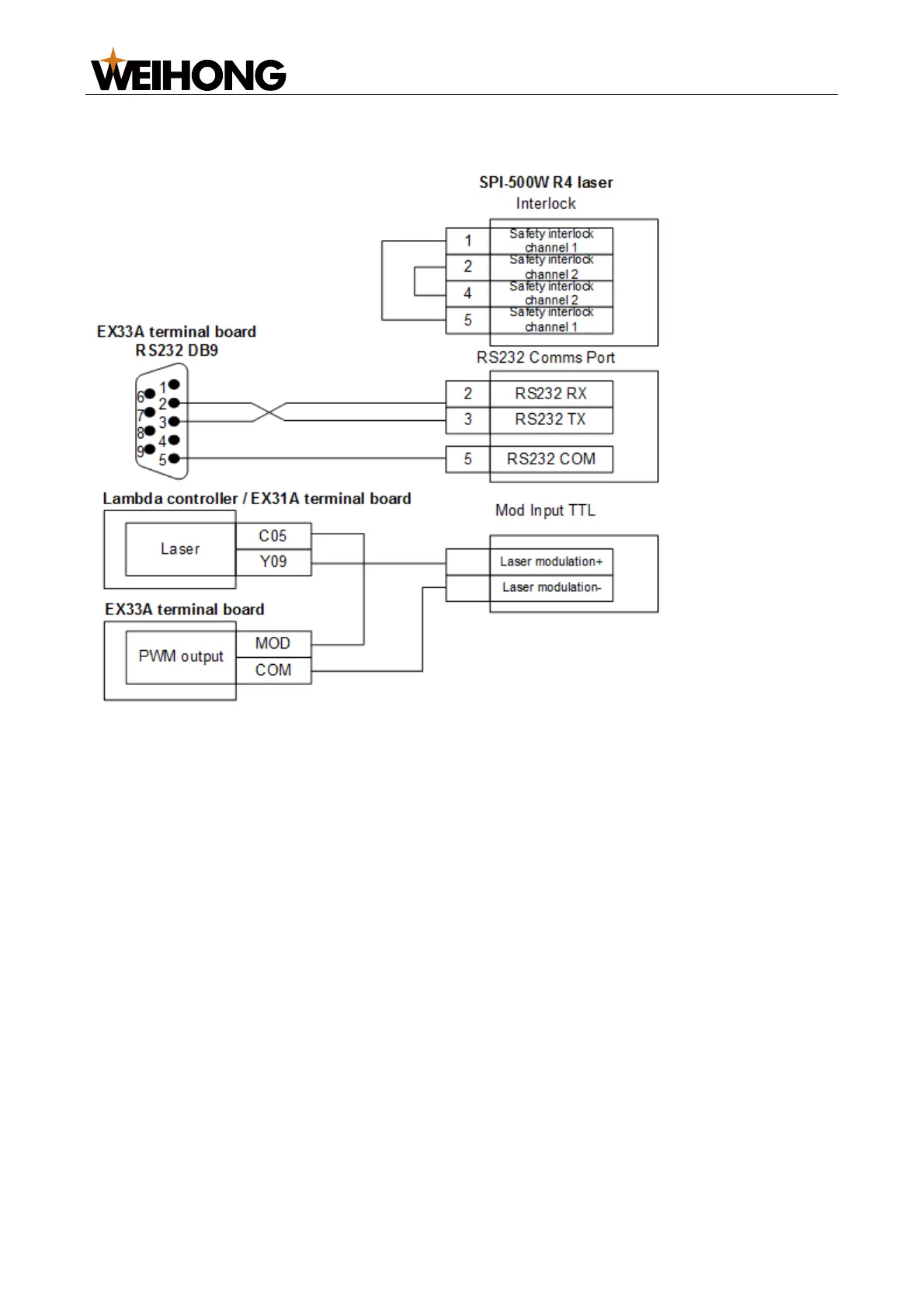

The wiring diagram is shown below:

5.2.7 HFB 1000-1500W Laser

The wiring diagram is shown below:
