WEIHONG LS6000M - Wiring Diagram of the Drive (in Position Control Mode)

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
71 / 116
Signal
Definition
Input/Output
Remark
Differential signal
transmission mode
INTSPD2
Internal command
speed option 2
Output
-
ZSP
Speed zero clamp
detection signal
Output
In speed zero clamp
detection status, the
output transistor is turned
on.
V-REF
Analog speed
command
Output
-
+24V, GND
DC 24V power
Output
It is connected to drive.

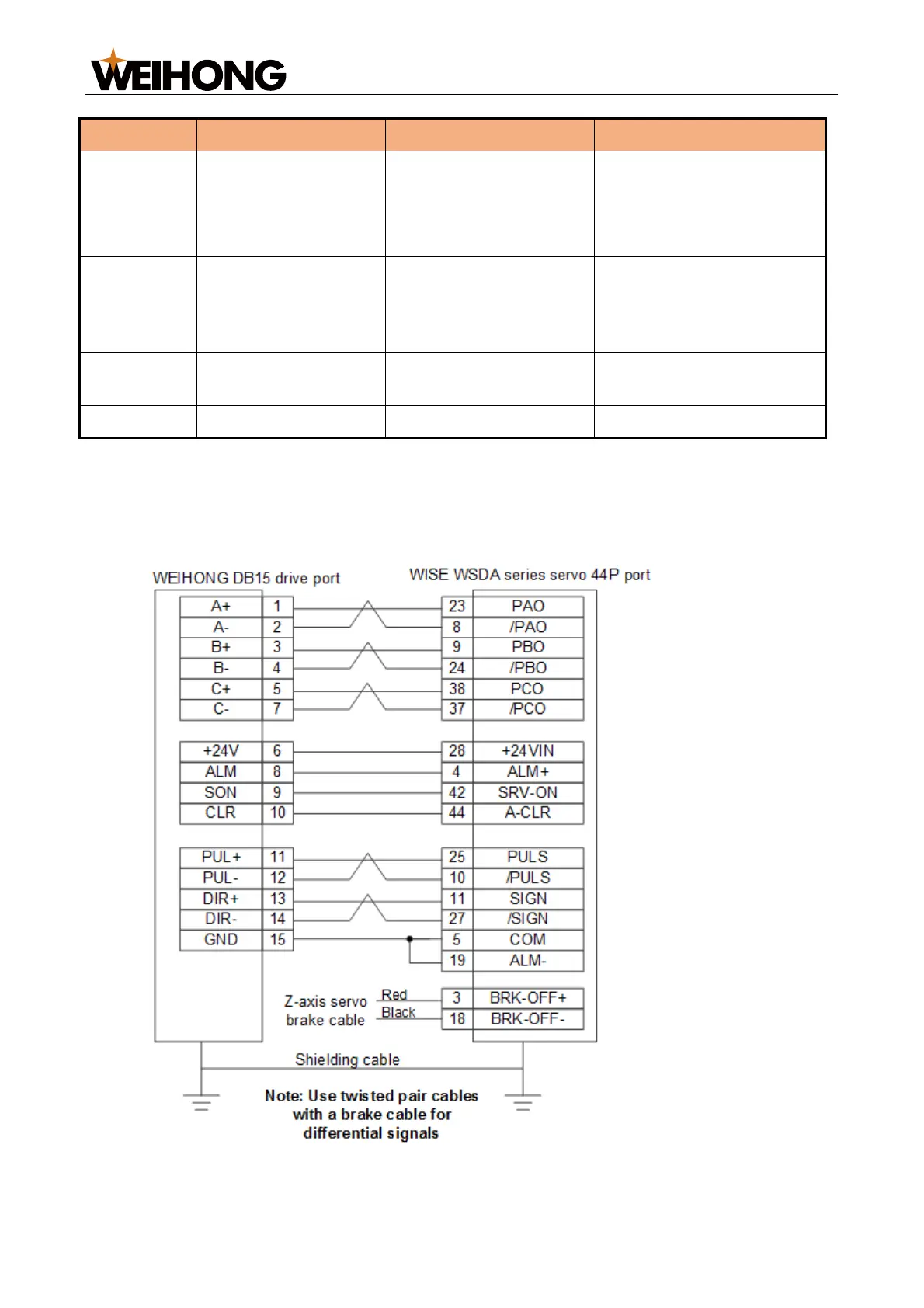

5.3.2 Wiring Diagram of the Drive (in Position Control Mode)
5.3.2.1 Wiring Diagram of WISE Servo Drive
The wiring diagram is as follows:
 With brake lines (44P interface)
 Without brake lines (44P interface)
