4 Follow Debugging
4.1 Overview
This function uses matching between the capacitance and distance to control the Z axis up
and down movement so as to keep a fixed distance between the cutter and material with.

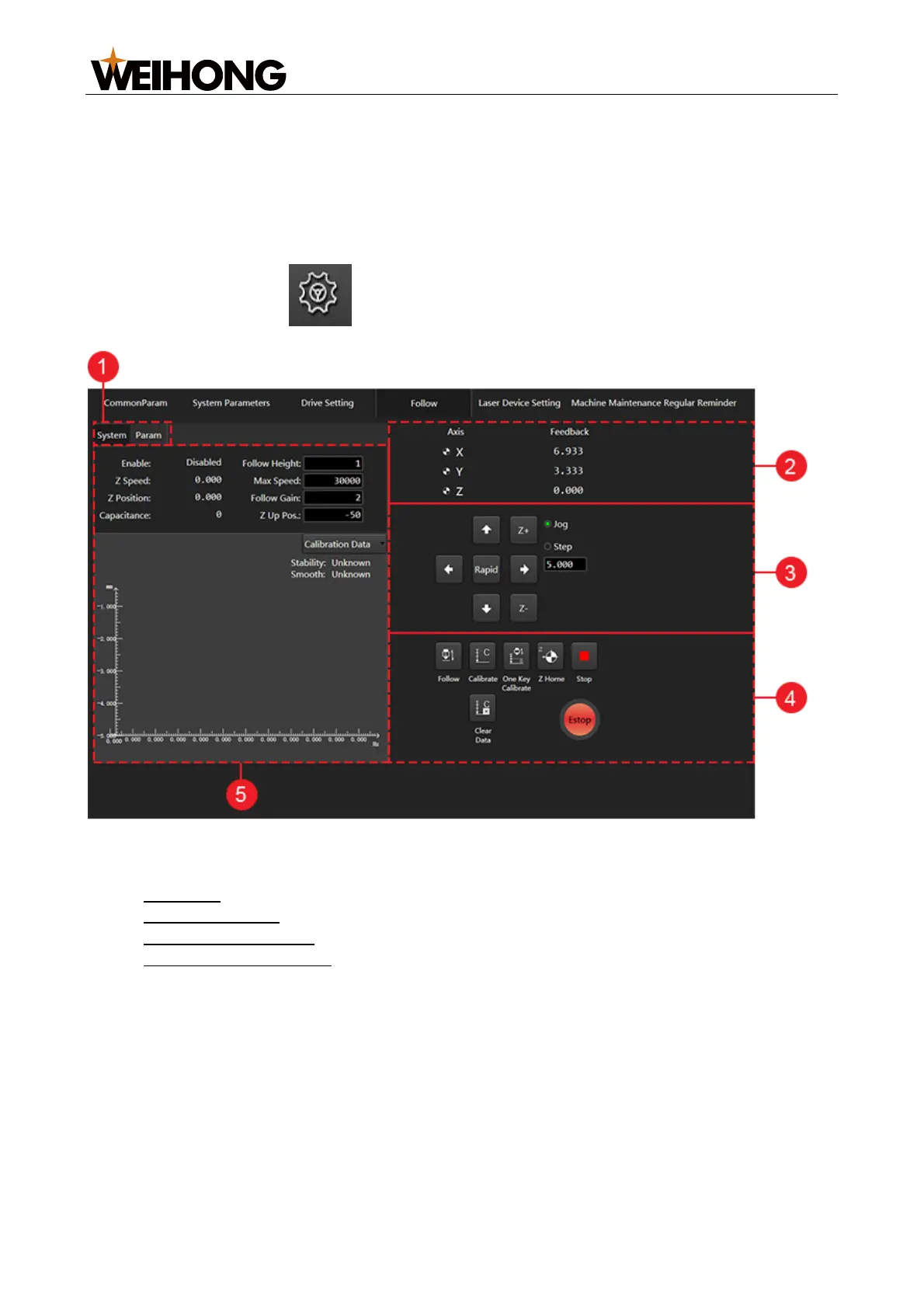

In the function bar, click Set > Follow:
1. Tab Area
2. Coordinate Area
3. Manual Control Area
4. Follow Control Buttons
5. Follow Control Area/Follow Parameter Setting Area
4.1.1 Tab Area
Includes:
 System tab: Access the follow control area.
 Param tab: Access the follow parameter setting area.
4.1.2 Coordinate Area
This area shows the axis mechanical coordinates and workpiece coordinates.
