上海维宏电子科技股份有限公司

SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.

74 / 116

5.3.2.2 Wiring Diagram of YASKAWA Σ-

Ⅱ

/Σ-

Ⅴ

/Σ-7 Servo Drive

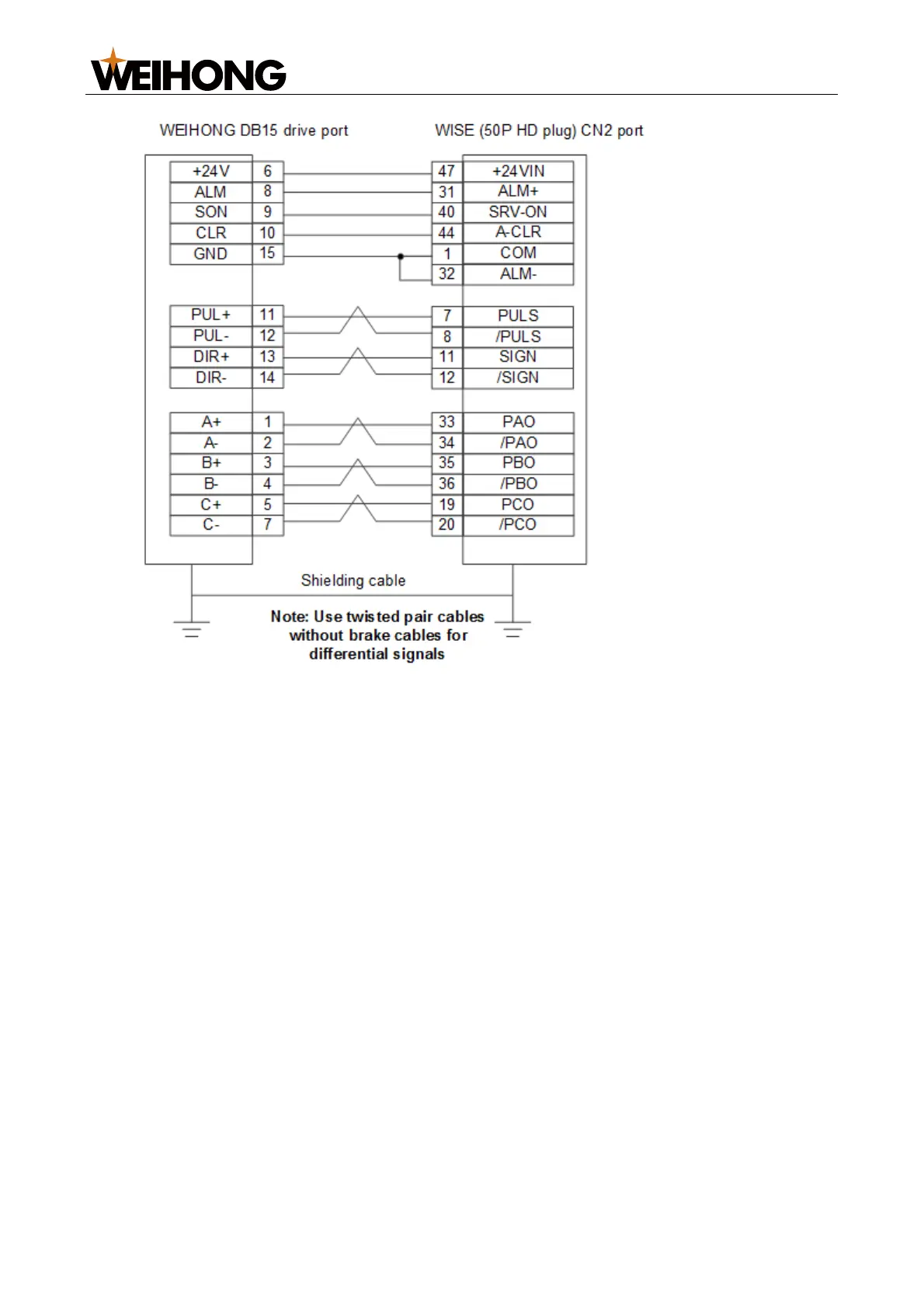

The wiring diagram is as follows:

 Common:
