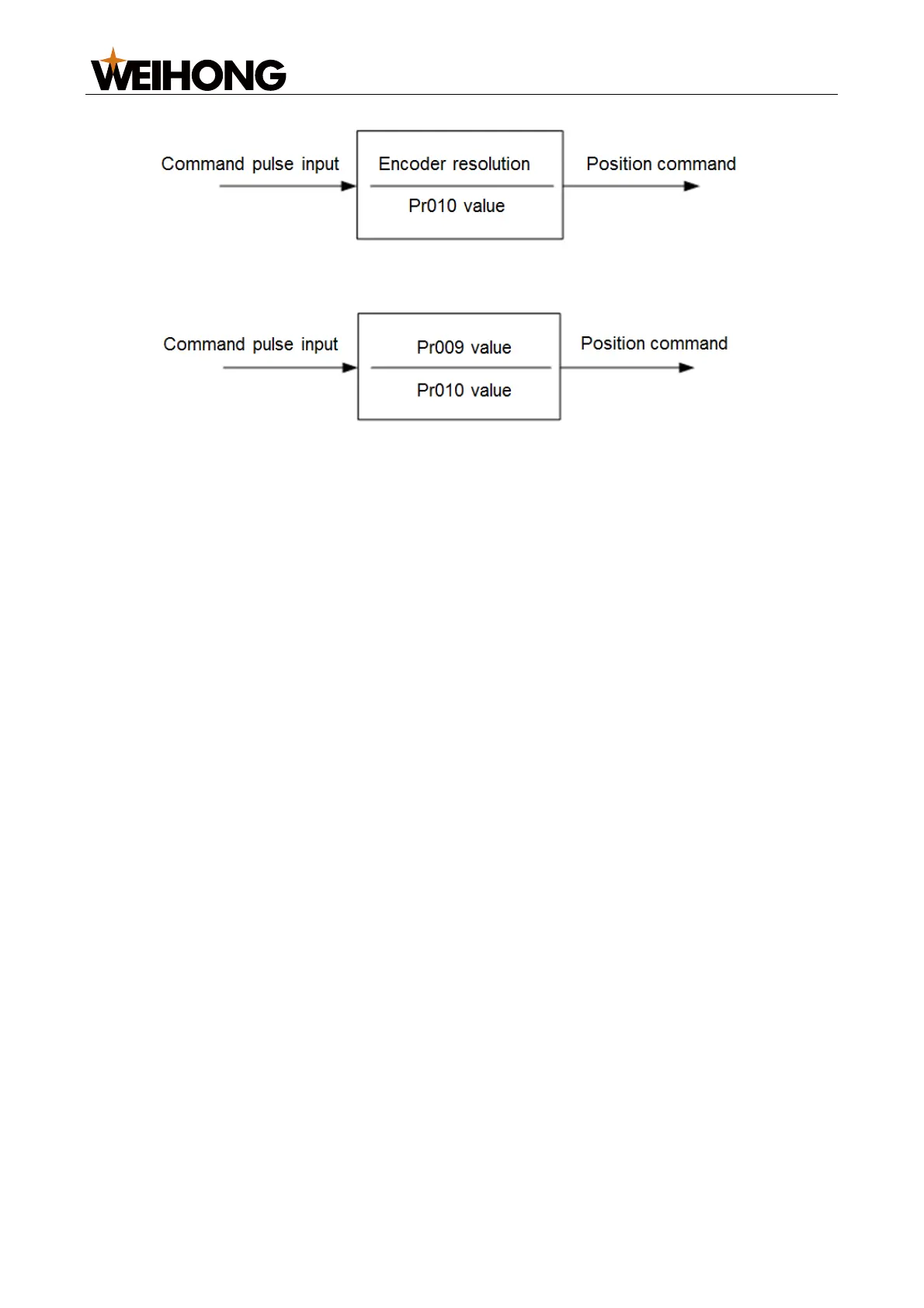

 If Pr008 is 0, and Pr009 and Pr010 values are not valid:
3.4.1.1.2 Yaskawa Σ-Ⅱ
The parameters and descriptions are shown below:
 Fn010 Password setting (preventing random parameter modification)
o Description: Password setting (preventing random parameter modification)
o Unit: -
o Range
 If Fn010 is set to 0000, modification of user parameters (PnXXX) and
some auxiliary function parameters (FnXXX) is allowed.
 If Fn010 is set to 0001, modification of user parameters (PnXXX) and
some auxiliary function parameters (FnXXX) is not allowed.
o Value: 0000
 Un00C Input command pulse counter
o Description: Pulse detection is used in WEIHONG control systems to check
to see if correct pulses are sent and determine if there is electric interference.
o Unit: -
o Range: -
o Value: In hexadecimal, low-order (L) 4 digits
 Pn000 Rotation direction and control mode selection
o Direction: Rotation direction and control mode selection
o Unit: -
o Range
 0: The motor rotates CW (anti-clockwise when observing from the
load/lead screw side).
 1: The motor rotates CCW. The control mode is position control.
Always calculates pulse commands.
o Value: 0010
 Pn200 Pulse command format selection
o Description: Pulse command format selection
o Unit: -
o Range
 Digit 0: If digit 0 is set to 5, the command is pulse + direction, negative
logic.
 Digit 3: If digit 3 is set to 0, the differential signal goes into the filter.
o Value: 0005
