Repairs: Information and Instructions 25

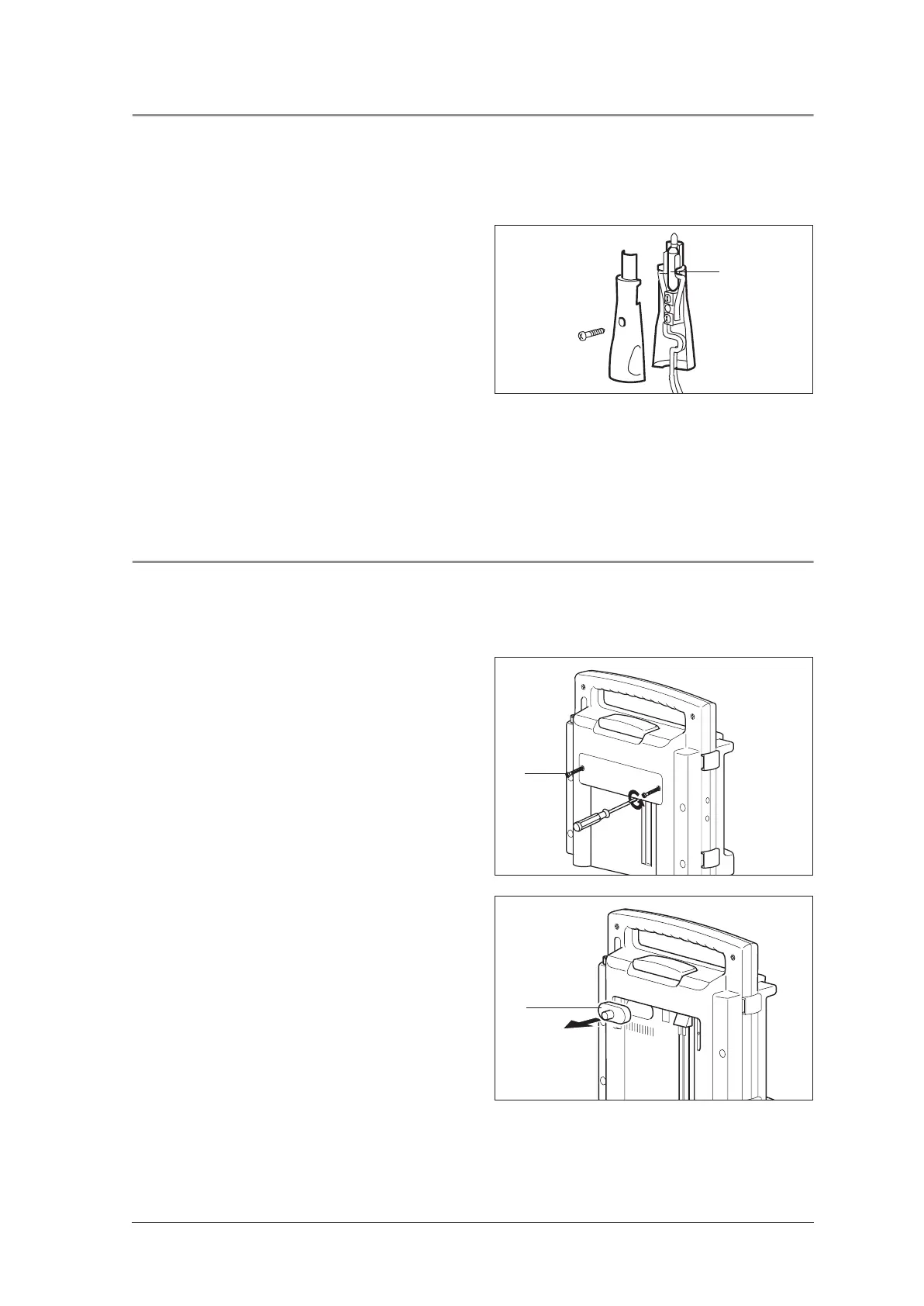

9.12 Changing fuse in vehicle plug
Tools and equipment required:
• Phillips screwdriver size 2.
1. Use a screwdriver to open the vehicle plug.
Note: The central contact of the plug is the plus
pole. The plus lead of the cable has either a
square cross-section or colored markings.
The outer contact of the plug is the minus pole.
The minus lead of the cable is round and
black.
2. Change the faulty fuse 58. Use only approved
fuses (see ”13. Technical Data“ on page 30).
3. Screw the vehicle plug together again.
4. Perform a function check (see ”7.2 Performing
the function check“ on page 10).
9.13 Changing the muffler
Tools and equipment required:
• Phillips screwdriver size 2.
1. Use a screwdriver to unscrew the cover plate
(2 cross-head screws 41).
2. Remove the old muffler 12.
3. Insert a new muffler 12.
58
41
12
