weinor BiEasy 15M User Manual

12 | EN Ⓒ weinor GmbH & Co. KG
Ⓒ weinor GmbH & Co. KG EN | 13

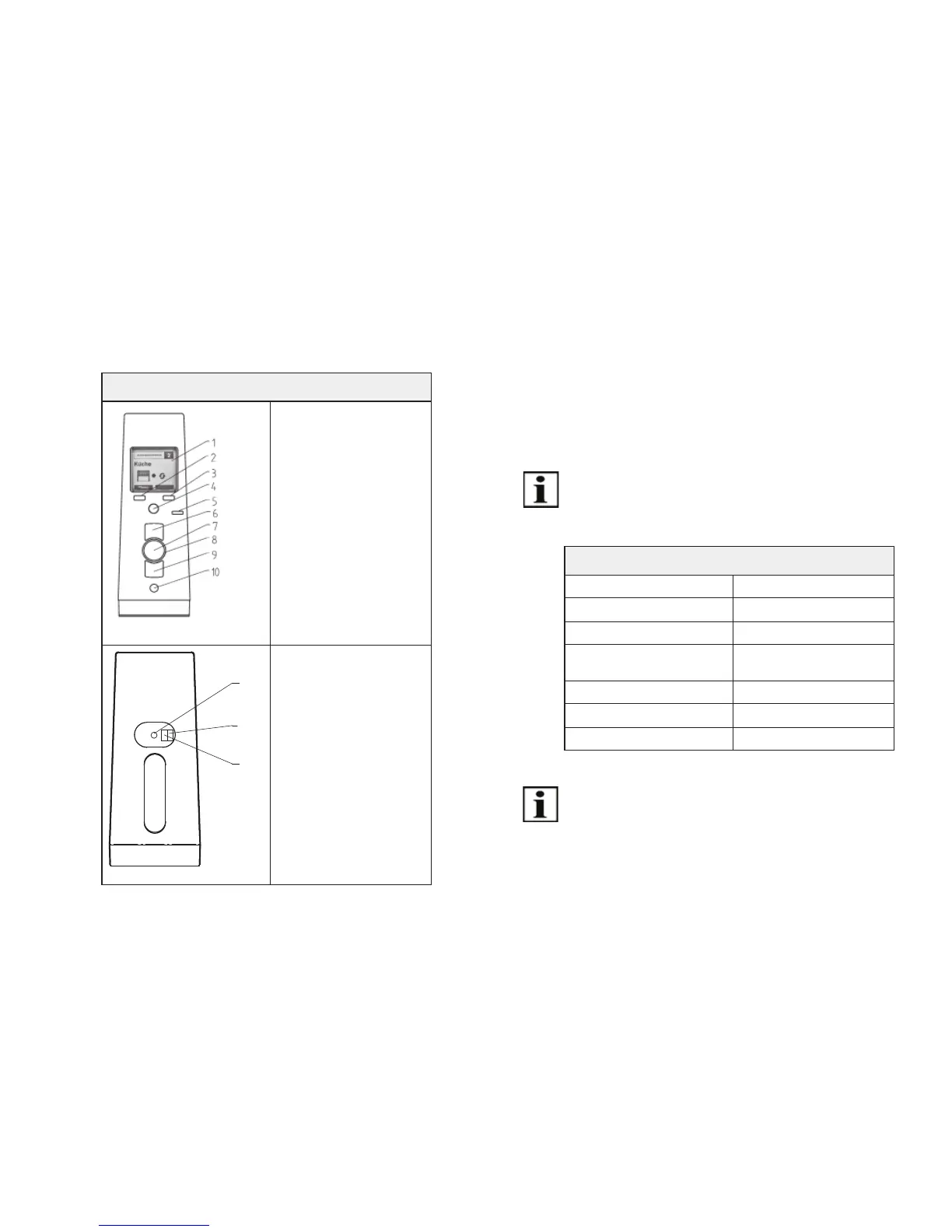

3.2 Device explanation
Front and back of device
1. Display
2. Left menu key
3. Right menu key
4. Joystick
(multidirectional key)
5. Operating mode
display
6. OPEN key
7. STOP key
8. Status display
9. DOWN key
10. Selection key
11
12
13
11. Programming key P
12. DIP switch 1
(for experts)
13. DIP switch 2
(for experts)
Tab. 1 Explanation of device (pictures of front and back)
3.3 Product types
The device can be supplied in different models (each within
a specifi c frequency range: 867, 868, 915 MHz). See the
order confi rmation for the exact confi guration of your
device.
3.4 Technical data
All information in this chapter is based on an ambient
temperature of 20 °C (± 5 °C).
3.4.1 Table of technical parameters
BiEasy 15M technical data
Operating voltage 3V DC
Battery type 2 x LR06 (AA)
IP Code IP 20
Approved ambient
temperature [°C] 0 to 55
Radio frequency [MHz] 868 (915 or 867)
Weight (incl. batteries) [g] 140
Delivery including wall bracket
Tab. 2 BiEasy 15M technical parameters
The values of your device, which depend on the model,
can be found on the name plate.

weinor BiEasy 15M Specifications

General

Brand	weinor
Model	BiEasy 15M
Category	Remote Control
Language	English
