2.2 The Combi Oven's Configuration and Functions
Parts and functions (electrical units)

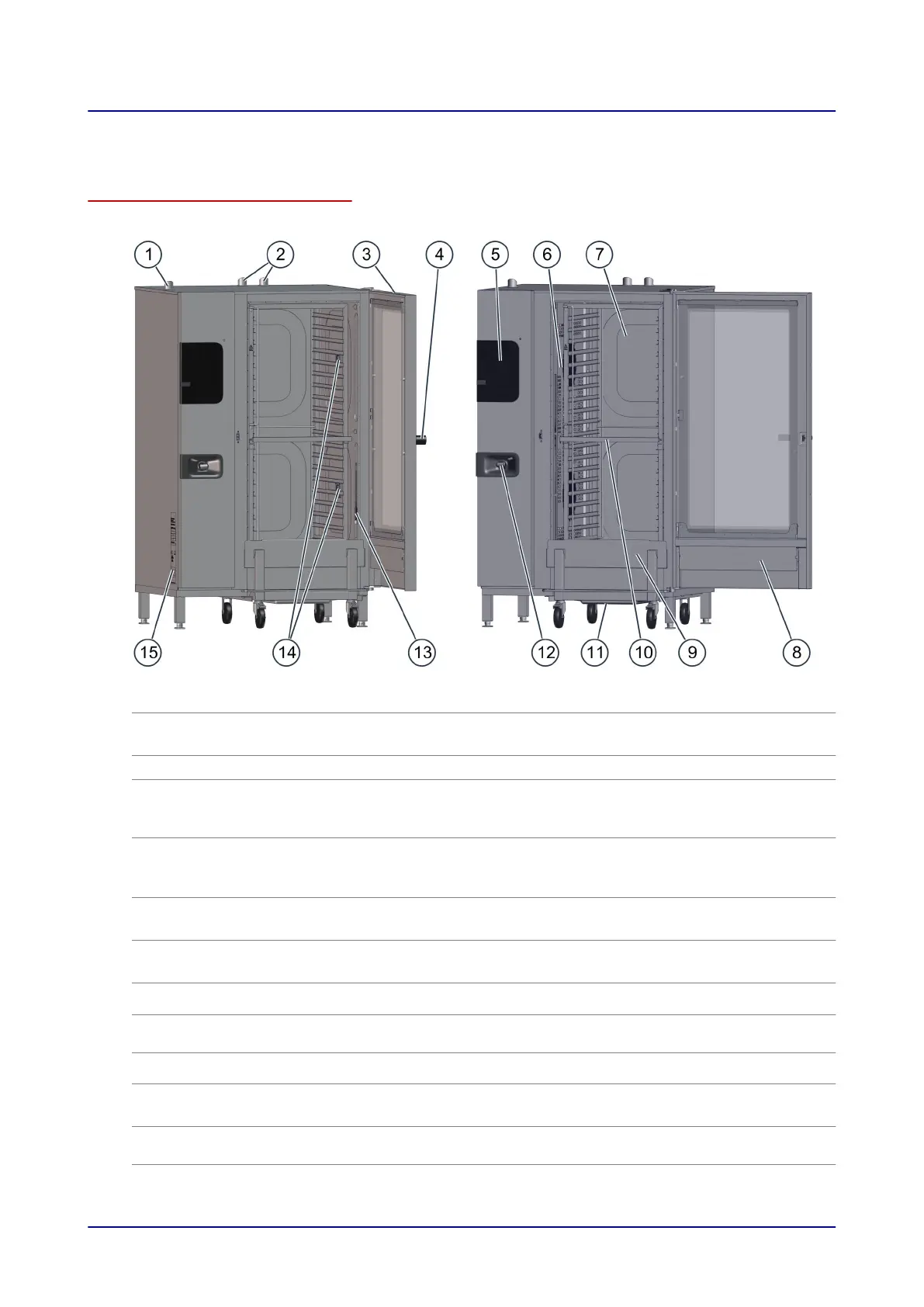

The figure below shows a size 20.20 combi oven used as an example representing all electrical models:
No. Designation Function
1
Ventilation port
■
Draws in ambient air in order to remove moisture from the oven cavity
■
Compensates for pressure fluctuations inside the oven cavity
2
Air vent Lets hot steam escape
3
Unit door
■
Seals the oven cavity
■
When opened, it can be slid backwards along the unit's side in order to save
space ("disappearing door") (optional)
4
Door handle
■
Used to open and close the unit door
■
Cracked-open position for safely opening the unit
■
Antibacterial material with silver ions ("HygieniCare")
5
Control panel
■
Used to operate the unit
■
Antibacterial ("HygieniCare")
6
Suction panel
■
Used to distribute heat uniformly within the oven cavity
■
Separates the fan compartment from the oven cavity
7
Oven cavity Is where food is placed while it is being cooked
8
Integrated preheat bridge in unit
door
Works as a safety element during pre-heating and reduces energy losses
9
Loading trolley Used to hold standard-size bakeware
10
Loading trolley handle
■
Bar used to move the loading trolley
■
Can be removed
11
Condensate collecting tray on
loading trolley
Collects liquids and condensate dripping from the oven cavity
