Note: Opening the door during the test will stop the test. Reselect the test to run again.
Temperature control test
When selected the oven will run on heat only, convection fan at 100%, for 30
minutes up to the maximum cavity temperature of 275
o
C.
Note: Opening the door during the test will stop the test. Reselect the test to
run again
This test only generally recommended for workshop activities.

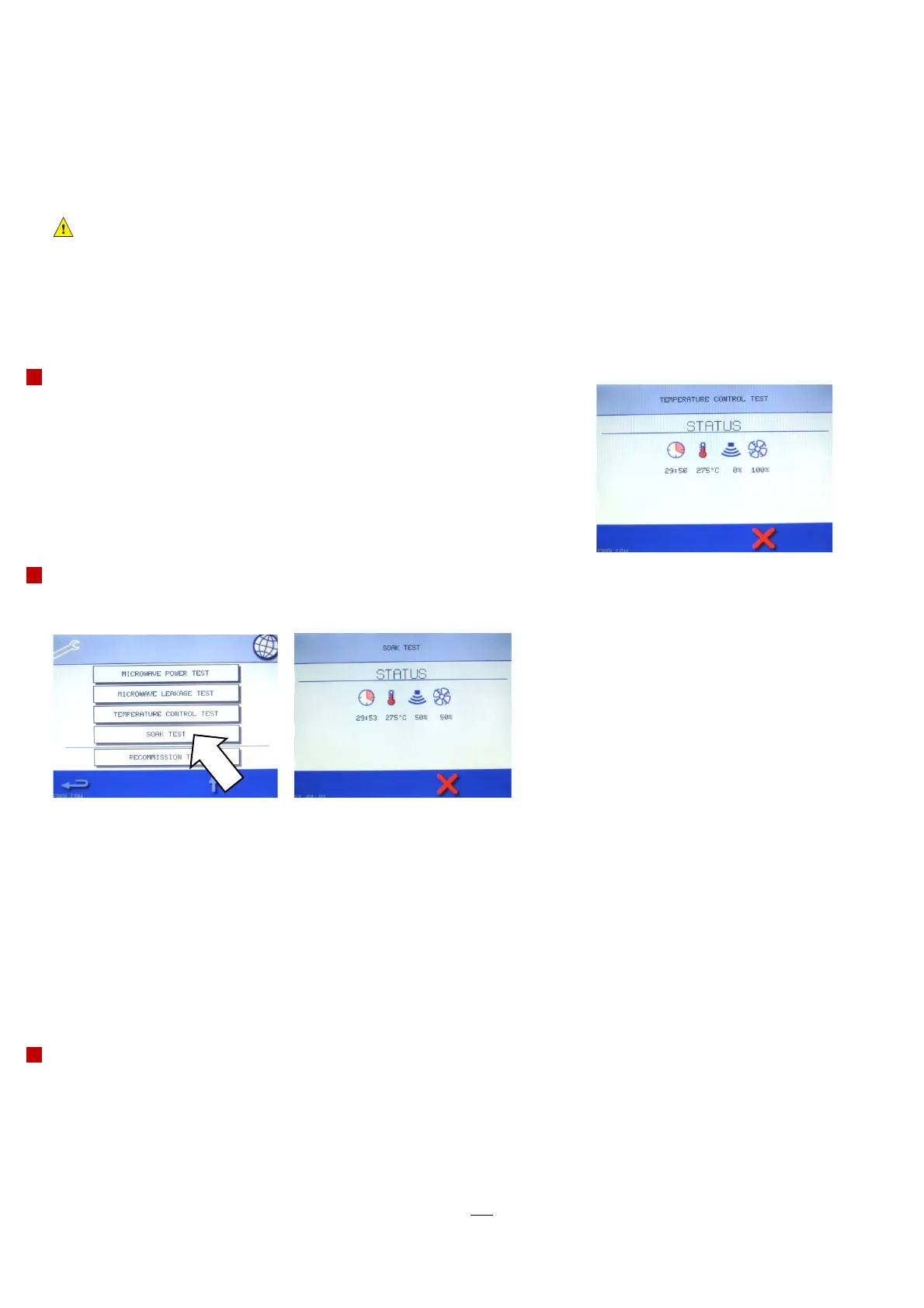

Soak test: checking the cavity integrity
Note: Opening the door during the test will stop the test. Reselect the test to run again.
This test only generally recommended for workshop activities.
Temperature Calibration Check / Recalibration
Tools required:
1 x Calibrated digital thermometer
1 x Temperature probe on a heat sink
1. Place temperature probe in the centre of cavity
2. Ensure the oven is in ‘Full Serve Mode’ (green ticked box) and not in Manual Mode (red ticked box)
6. When the microwave leakage test stops after 30 seconds, change the water and re-select the test to continue.
7. Select the red ‘X’ on the display to stop the test at any time.
8. Readings must be below 5mW/cm², ideally zero as there should be no microwave leakage and corrections
should be made if any leakage is detected above 0.5mW/cm
2
.
CAUTION:
If a level greater than 5mW/cm² is observed, don't use the appliance until repaired.
9. Note any leakage that is observed in terms of the level and position on the appliance. Keep this information
with the service documentation.
1. Place a covered oven/microwave safe container with approx. 2 litres of water into the cavity.
2. Close the appliance door and
select ‘Soak Test’ from the
service mode oven tests (275
o
C
maximum oven temperature,
50% microwave power, 50%
convection fan speed for 30
minutes).
3. Run the test (30 minutes), carefully checking the appliance casing, joints
and door seal for signs of steam or water escaping from the cavity.
4. If necessary, rectify any leaks and repeat the test.
5. Safely remove the container of water from the cavity on completion.
