Merrychef eikon e2s Quick Start Guide
Part Number 32Z3922 CE, GBR Issue 02 06/2018
Empty weight of appliance
e2s High Power version 134 lbs (61.0 kg)
e2s Standard Power version 114 lbs (51.7 kg)
Minimum space required

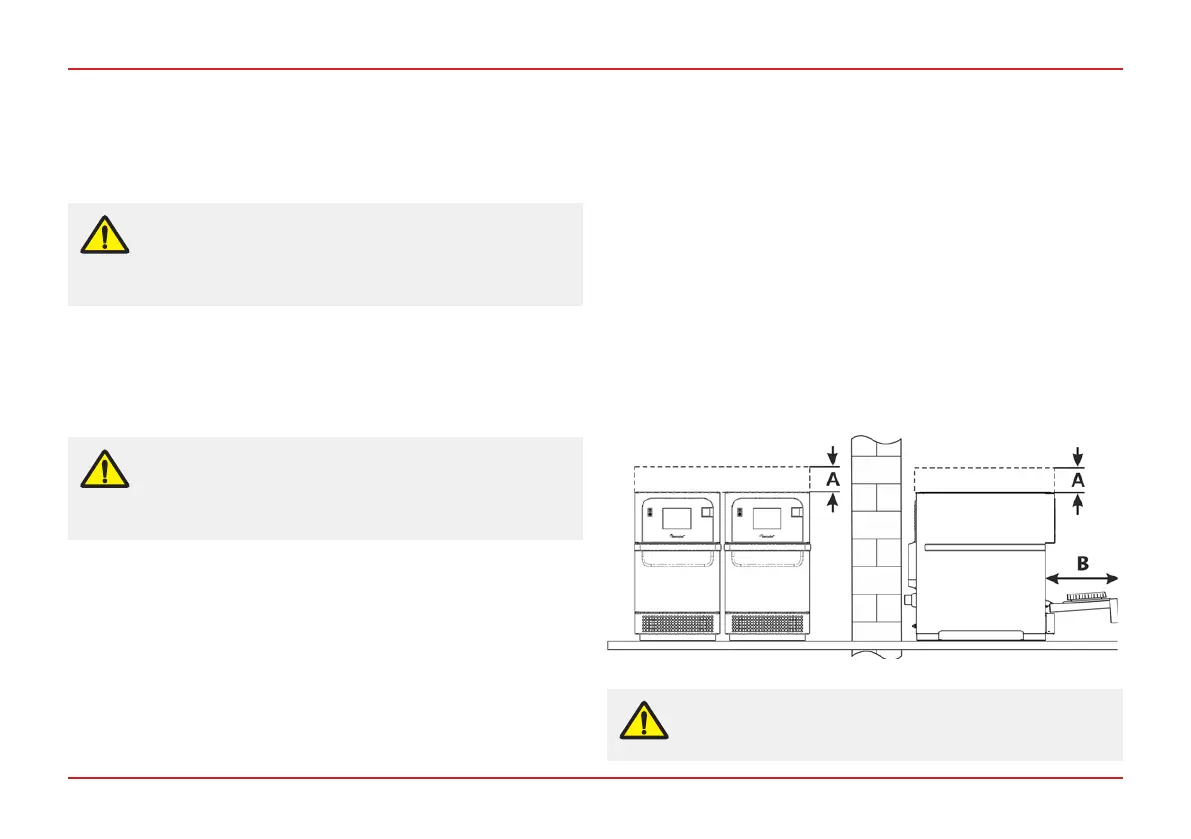

The following diagram and table show the minimum space
required for the appliance. They also show the minimum
horizontal distances from adjacent walls and surfaces.
A Safety clearance from the top 2 in (50 mm)
B Depth requirement, appliance 12.2 in (310 mm)
door open at 90°
Safety clearance on left- and 0 in (0 mm)
right-hand side and at rear
Unpacking the appliance
Unpack the appliance following the instructions in Chapter 5 of
the Installation and User Manual, which contains full information
on the requirements for the installation location, unpacking the
appliance and mounting it on a work surface.
Electrical installation requirements
Make sure you plan the electrical installation of the appliance in
advance. Chapter 6 of the Installation and User Manual contains
full information on planning the electrical installation and the
electrical installation requirements.
Requirements for the supporting surface
The supporting surface must have the following properties:
● The supporting surface must be at and level.
● The supporting surface must be able to bear the in-use weight
of the appliance plus the weight of the structure supporting the
appliance.
● The structure supporting the appliance (work surface or stand)
must be able to bear the in-use weight of the appliance.
The Installation and User Manual contains safety
instructions relating to the unpacking and mounting of
the appliance. You must read these instructions in full
before unpacking and installing the appliance.
The Installation and User Manual contains safety
instructions relating to safe working during the
electrical installation. You must read these instructions
in full before commencing the electrical installation.
INSTALLING THE APPLIANCE
The safety clearance on the top must always be
complied with.
