LIQUID CRYSTAL DISPLAY
Figure 8

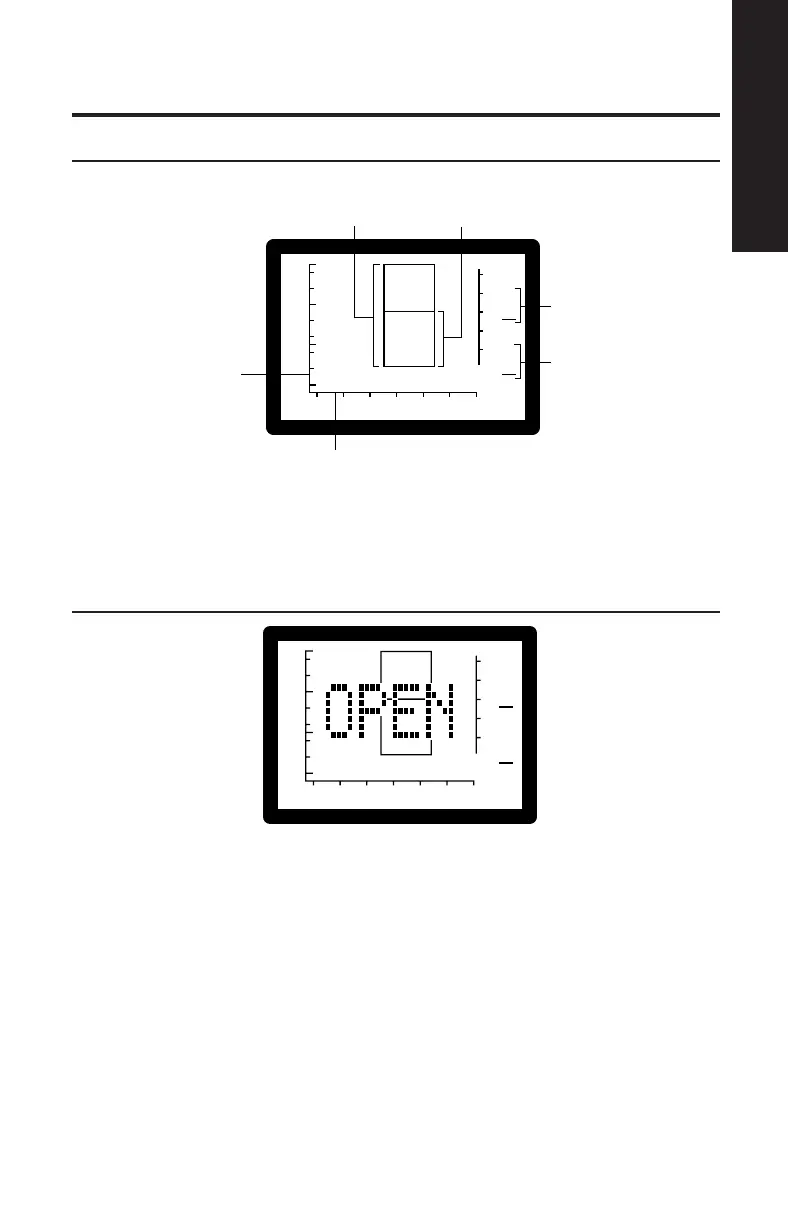

A sample of the Liquid Crystal Display is shown in Figure 8.
OPEN
Figure 9
The test has not begun since a valid ear cavity has not been detected.
The ear canal volume exceeds 2.5 cc.
Possible causes:
• instrument is not in an ear
• probe tip is not completely sealed in an ear
• instrument is used on perforated tympanic membrane, an ear with
patent tympanostomy tubes, or an extremely large canal (> 2.5 cc).
MicroTymp
2
Completing a Test
9
-400 -200 0 200
2
0.5
0
1.0
1
GR
A
GR
C
PRESSURE - daPa
Ya - mmho
+200 Vea - cc
Admittance
Axis
Normal Static
Admittance and
TPP (Adults)
Normal Static
Admittance and
TPP (Children)
Pressure
Axis
Gradient
(Width) Adult
Gradient
(Width) Child
-400 -200 0 200
2
0.5
0
1.0
1
GR
A
GR
C
PRESSURE - daPa
Ya - mmho
+200 Vea - cc
